Product Details:
Payment & Shipping Terms:
|
| Brand: | GE Fanuc | Model: | IC693CPU311 |
|---|---|---|---|
| Series: | Series 90-30 | Product Type: | CPU |
| Number Of Serial Ports: | 1 | Number Of Inputs: | 512 |
| Number Of Outputs: | 512 | Processor Type: | 80188 |
| Processor Speed: | 10 Megahertz | Operating Temperature: | 32 To 140 Degrees Fahrenheit |
| High Light: | 24VDC Negative Logic Input module,24VDC Positive Logic Input Module,2A Negative Logic Output Module |
||

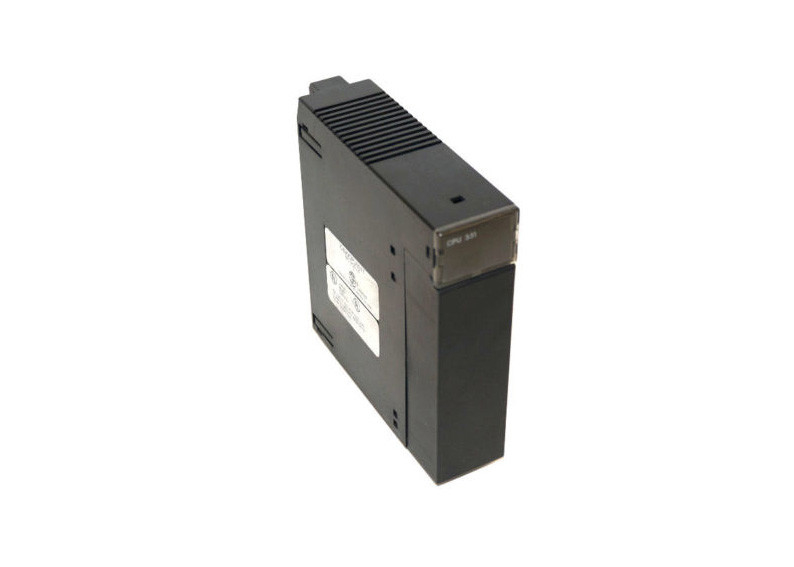

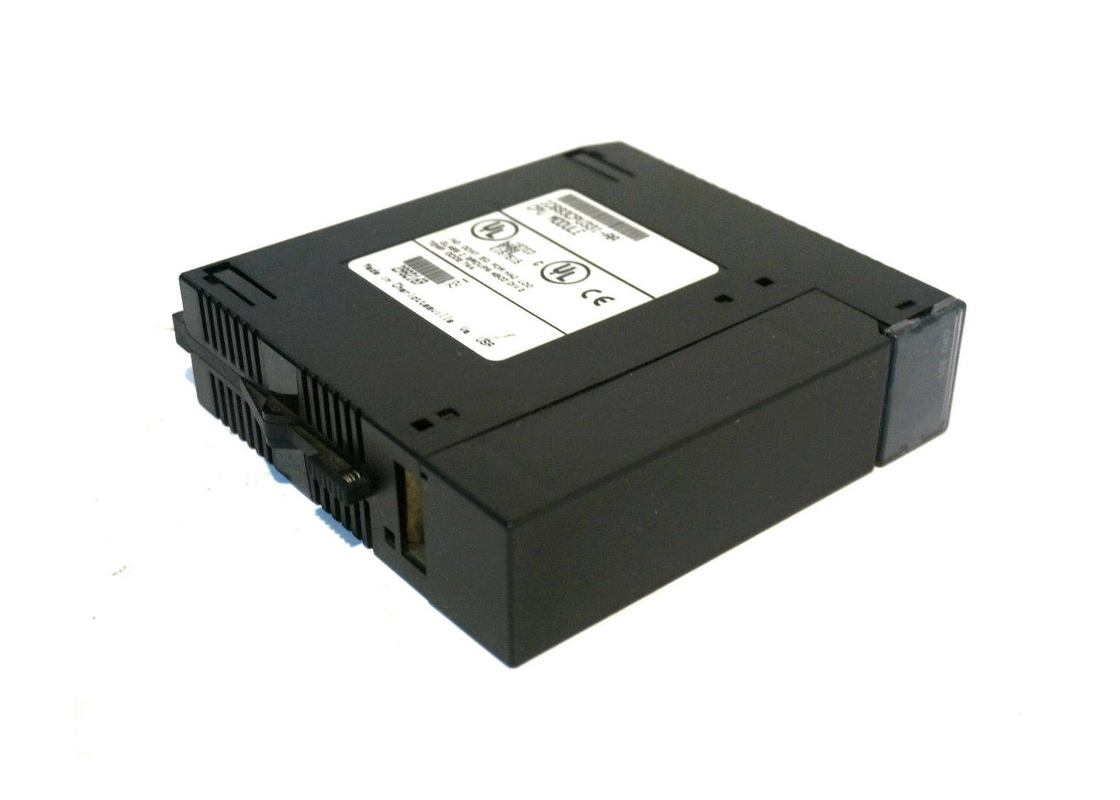

General: The IC693CPU331 is a single slot CPU module. GE Fanuc Automation Corporation joint venture, also known as GE Automation and Control division, is the manufacturer of this module.
Baseplates: A single system can support up to 5 baseplates, which include one baseplate for the CPU and four remote and expansion baseplates.
Power: This CPU requires a 350-milliamp load from the power supply, which should have a rate of +5V DC. With a processor speed of 10 Megahertz, the IC693CPU331 utilizes an 80188 processor. The ambient operating temperature ranges from 0°C to 60°C or 32°F to 140°F.
Specific: The IC693CPU331 is a modular CPU, which includes the CPU, a memory chip, an integrated associated circuit chip which is soldered to a circuit board, and the backplane board. The CPU module is inserted into the backplane, which is possible because the IC693CPU331 is a plug-in module. The user must always install the CPU module into slot 1 of the baseplate. Remote baseplate and expansion are features that Modular CPU supports. This CPU model has a scan rate per 1 K of logic, or we can say the Boolean contacts is typically 0.4 milliseconds. There is a maximum of 16K bytes of program memory available for the user. There are also 128 bits reserved for references to the System Status.
The IC693CPU331 supports multiple modes of communication including LAN with multidrop support and Ethernet. This module supports other communication modules, such as FIP, GBC, GCM, and GCM+. IC693CPU331 also supports features including override and a battery powered clock. However, interrupts are currently not supported. RAM and EEPROM or EPROM (optional) are the supported memory storage types. It is also compatible with PCM/CCM.
| Processor Speed | 10 MHz |
| I/O Points | 512 |
| Register Memory | 4KBytes |
| Floating Point Math | No |
| 16 BIT System | Yes |
| Processor |
80188 |
| CPU Type | Single slot CPU module |
| Total Baseplates per System | 5 (1 CPU baseplate + 4 expansion and/or remote) |
| Load Required from Power Supply | 350 milliamps from +5 VDC supply |
| Processor Speed | 10 MegaHertz |
| Processor Type | 80188 |
| Operating Temperature | 0 to 60 degrees C (32 to 140 degrees F) ambient |
| Typical Scan Rate | 0.4 milliseconds per 1K of logic (boolean contacts) |
| User Program Memory (maximum) | 16K Bytes |
| Discrete Input Points - %I | 512 |
| Discrete Output Points - %Q | 512 |
| Discrete Global Memory - %G | 1280 bits |
| Internal Coils - %M | 1024 bits |
| Output (Temporary) Coils - %T | 256 bits |
| System Status References - %S | 128 bits (%S, %SA, %SB, %SC - 32 bits each) |
| Register Memory - %R | 2048 words |
| Analog Inputs - %AI | 128 words |
| Analog Outputs - %AQ | 64 words |
| System Registers (for reference table viewing only; cannot be referenced in user logic program) | 16 words (%SR) |
| Timers/Counters | 680 |
| Shift Registers | yes |
| Built-in Ports | 1 (uses connector on PLC power supply). Supports SNP/SNP-X slave protocols. Requires CMM module for SNP/SNP-X master, CCM, or RTU slave support; PCM module for RTU master support. |
| Communications | LAN - Supports multidrop. Also supports Ethernet, FIP, Profibus, GBC, GCM, GCM+ option modules. |
| Override | yes |
| Battery Backed Clock | yes |
| Interrupts | no |
| Type of Memory Storage | RAM and optional EPROM or EEPROM |
| PCM/CCM Compatibility | Yes |
