| Brand: | GE Fanuc | Model: | IC693CPU340 |
|---|---|---|---|
| Series: | Series 90-30 | Product Type: | CPU Module |
| Clock Speed: | 20 Megahertz | Microprocessor: | 80C188XL |
| Register Memory: | 19.9 Kilobytes | User Program Memory: | 32 Kilobytes |
| I/O Points: | 512 | Current Input: | 490 Milliamps |
| High Light: | 24VDC Negative Logic Input module,24VDC Positive Logic Input Module,2A Negative Logic Output Module |
||

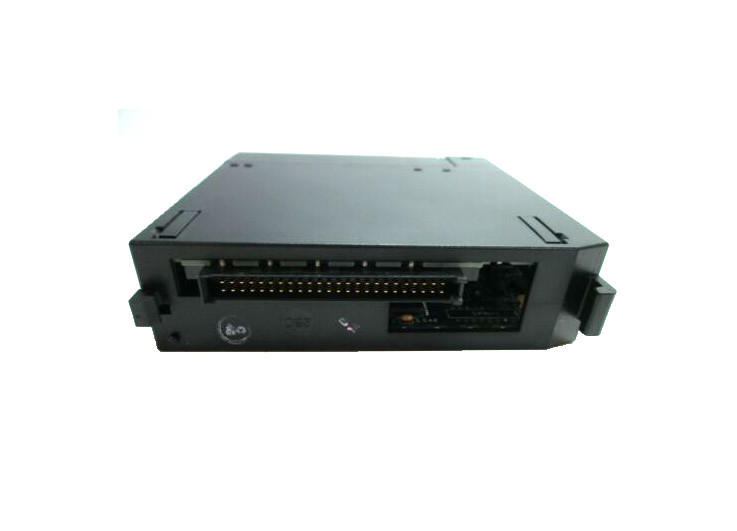

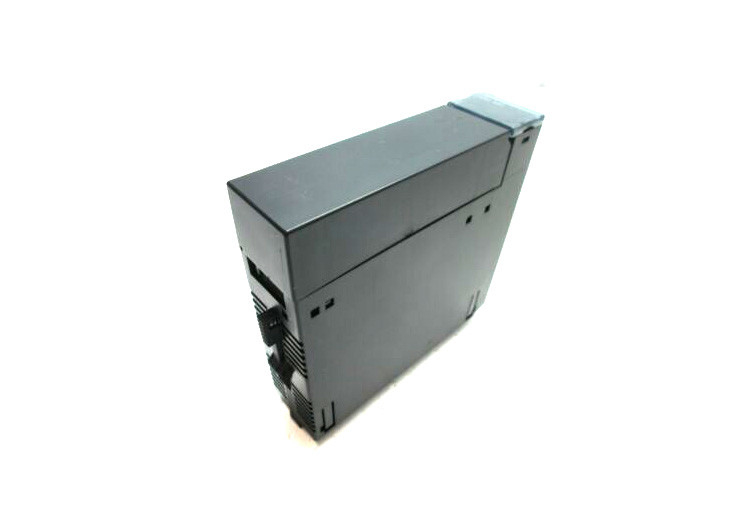

IC693CPU340 is a one slot CPU 340 Module with 32 Kbytes User Memory and 10K Registers. It has one CPU baseplate and four expansion baseplates for each system.The IC693CPU340 has a power supply that needs a load of 350 milliamps from +5 VDC supply. It uses processor 80188 that has a processing speed of 10 Megahertz. Operating Temperature of IC693CPU340 is 0 to 60 degrees C (32 to 140 degrees F) ambient. Usually, the Scanning Rate of IC693CPU340 is 0.3 milliseconds per 1K of logic (Boolean contacts). Firmware as the highest User Program Memory gives out 9.0, 240K Bytes. The exact size of the present user program memory relies on the number designed for the %R, %AI, and %AQ composed word memory types. It also has discrete input and discrete output points of 512.The CPU 340 has a Discrete Global Memory -%G of 1280 bits
The IC693CPU340 Analog Inputs-%A1 and Analog output-%AQ consist of 128 words and 64 words respectively. Further, it comprises of a system register with 16 words that can only be used to reference table viewing and does not allow referencing in the user logic program. The time count for the module is normally 680 with the existence of a shift register. The module has Built-in Ports 1 (uses the connector on PLC power supply).This port holds up the SNP/SNP-X slave protocols which need CMM module for SNP/SNP-X master. In terms of Communication, it has a LAN – guide multidrop. It also offers assistance to Ethernet, FIP, Profibus, GBC, GCM and GCM+ option modules. IC693CPU340 uses RAM and optional Flash as memory storage in order to store the necessary data.
| Processor Speed : | 20 MHz |
| I/O Points : | 512 |
| Register Memory : | 19.9KBytes |
| Floating Point Math: | No |
| 16 BIT system | |
| Processor: | 80C188XL |
CPU340 Catalog Number IC693CPU340
| CPU Type | Single slot CPU module |
| Total Baseplates per System | 5 (1 CPU baseplate + 4 expansion and/or remote) |
| Load Required from Power Supply | 490 milliamps from +5 VDC supply |
| Processor Speed | 20 MegaHertz |
| Processor Type | 80C188XL |
| Operating Temperature | 0 to 60 degrees C (32 to 140 degrees F) ambient |
| Typical Scan Rate | 0.3 milliseconds per 1K of logic (boolean contacts) |
| User Program Memory (maximum) | 32K Bytes |
|
Discrete Input Points - %I Discrete Output Points - %Q |
512 512 |
| Discrete Global Memory - %G | 1280 bits |
| Internal Coils - %M | 1024 bits |
| Output (Temporary) Coils - %T | 256 bits |
| System Status References - %S | 128 bits (%S, %SA, %SB, %SC - 32 bits each) |
| Register Memory - %R | 9999 words |
| Analog Inputs - %AI | 1024 words |
| Analog Outputs - %AQ | 256 words |
| System Registers (for reference table viewing only; cannot be referenced in user logic program) | 16 words (%SR) |
| Timers/Counters | >2000 |
| Shift Registers | yes |
| Built-in Ports | 1 (uses connector on PLC power supply). Supports SNP/SNP-X slave protocols. Requires CMM module for SNP/SNP-X master, CCM, or RTU slave support; PCM module for RTU master support. |
| Communications | LAN - Supports multidrop. Also supports Ethernet, FIP, Profibus, GBC, GCM, GCM+ option modules. |
| Override | yes |
| Battery Backed Clock | yes |
| Interrupts | yes |
| Type of Memory Storage | RAM and optional Flash |
| PCM/CCM Compatibility |
yes |
