Product Details:
Payment & Shipping Terms:
|
| Brand: | GE Fanuc | Model: | IC693CPU350 |
|---|---|---|---|
| Series: | Series 90-30 | Operating Temperature: | 0 To 60 Degrees Celsius (32 To 140 Degrees Fahrenheit) |
| Serial Port: | RS-485 (via Power Supply | CPU Type: | Single Slot CPU Module |
| User Memory: | 32K Bytes | Processor Type: | 80386EX |
| Power Requirements: | 670 Milliamps From +5 VDC Supply | Type Of Memory Storage: | RAM And Flash |
| Highlight: | 24VDC Negative Logic Input module,24VDC Positive Logic Input Module,2A Negative Logic Output Module |
||

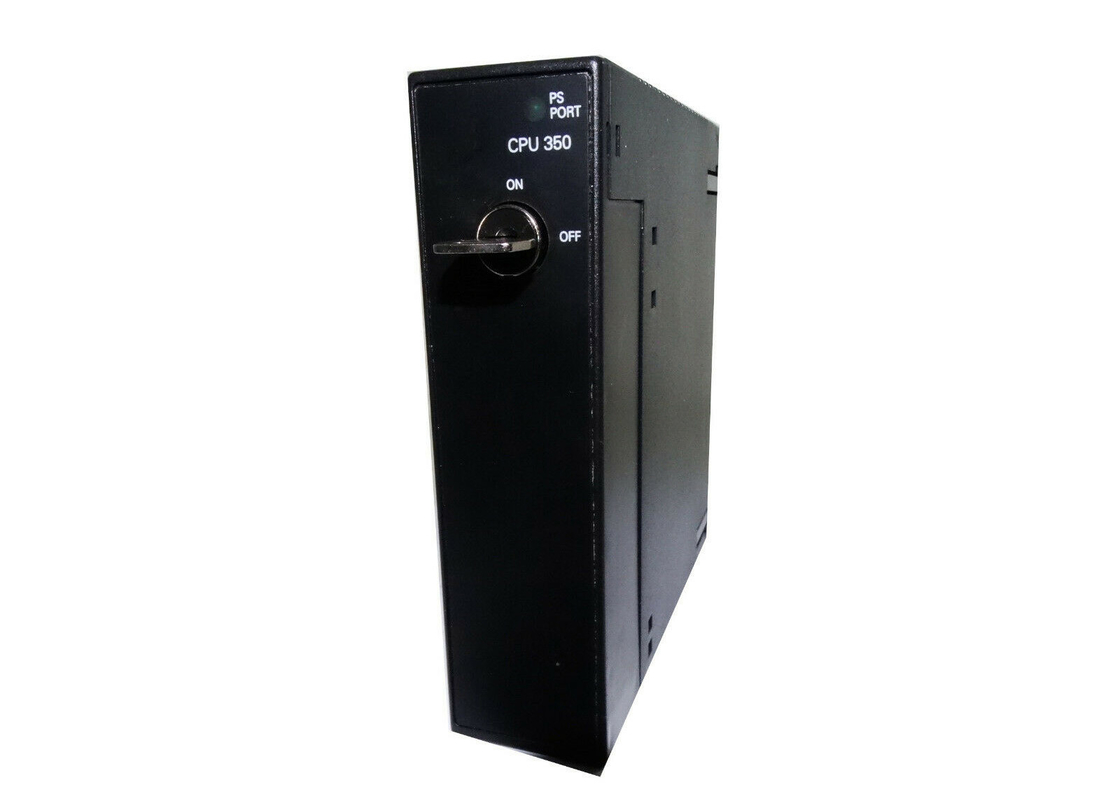

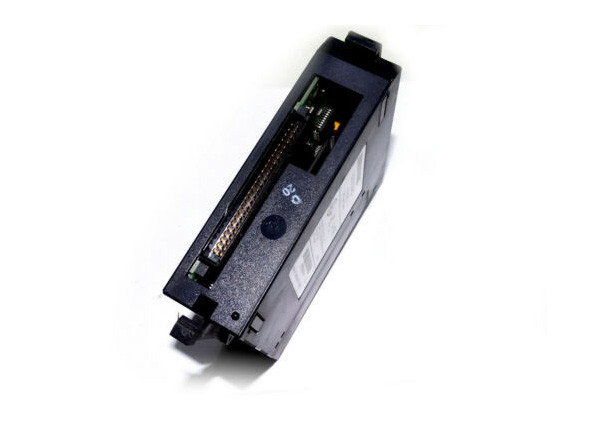

The CPU Model 350 IC693CPU350, acts as a controller, I/O system, and speciality module designed to meet the demands of flexible industrial solutions. Among other things, it comes with 32Kbytes user memory, 4K I/O, 8 Racks and a logic execution of 0.22msec/K. It is compatible with advanced modules such as Ethernet, various bus modules, and control. Designed in a single overall architecture, the IC693CPU350 is well suited for thousands of applications, such as complex motion control, mining, water treatment, elevator control, high-speed packaging, injection molding, material handling, food processing, continuous emission monitoring and many more. By configuring just the system you need, you save critical space and reduce cost. Furthermore, IC693CPU350 can also be adapted to a wide range of applications such as: digital interfaces (for push buttons, switches, proximity sensors, relays, contactors and many other devices), analog modules (with varying degrees of resolution for flow, temperature or pressure applications), direct connect wiring or remote termination and local or remote I/O systems.
It has a built-in Ethernet user-enabled communication which supports both SRTP and Modbus TCP/IP application protocols and provides a real-time link for connected systems. With scalable processing power, users can create a system that is ideal today while leaving open the option of creating more powerful system tomorrow without changing your software. An integrated motion control supports high performance in point-to-point applications. With a variety of field bus interfaces, the IC693CPU350 enables distributed control and/or I/O. Users can choose from a variety of easy to install and quick to configure field bus interface modules. It is programmable with Proficy Logic Developer PLC-Machine Edition and supports a wide range of programming languages such as Ladder Diagram (LDI), Instruction List (IL), Structural Text (ST), and C Block. It is a low-cost solution with redundant CPUs and power supplies for high availability solutions.
The IC693CPU350 is a single slot CPU module with one CPU baseplate and 7 expansion and/or remote baseplates. It uses a 80386EX processor type with a speed of 25 MHz, operating with an ambient temperature of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). This CPU also has a typical scan rate of .22 msec/K and maximum user program memory of 32K bytes. It is equipped with a built-in serial port which supports SNP/SNP-X slave protocols and a LAN port which supports multidrop, Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules. The controller supports shift registers, override, battery backed clock, PCM/CCM compatibility, periodic subroutine interrupts’ feature, floating point Math, and RAM and flash memory storage. It requires 670 milliamps supplied from a +5 VDC power supply.
| Processor Speed : | 25 MHz |
| I/O Points : | 2048 |
| Register Memory : | 19.9KBytes |
| Floating Point Math: | Yes |
| 32 BIT system | |
| Processor: | 80386EX |
CPU350 Catalog Number IC693CPU350
| CPU Type | Single slot CPU module |
| Total Baseplates per System | 8 (CPU baseplate + 7 expansion and/or remote) |
| Load Required from Power Supply | 670 milliamps from +5 VDC supply |
| Processor Speed | 25 MegaHertz |
| Processor Type | 80386EX |
| Operating Temperature | 0 to 60 degrees C (32 to 140 degrees F) ambient |
| Typical Scan Rate | 0.22 milliseconds per 1K of logic (boolean contacts) |
| User Program Memory (maximum) | 32K Bytes (not configurable) |
| Discrete Input Points - %I | 2,048 |
| Discrete Output Points - %Q | 2,048 |
| Discrete Global Memory - %G | 1,280 bits |
| Internal Coils - %M | 4,096 bits |
| Output (Temporary) Coils - %T | 256 bits |
| System Status References - %S | 128 bits (%S, %SA, %SB, %SC - 32 bits each) |
| Register Memory - %R | 9,999 words |
| Analog Inputs - %AI | 2,048 words |
| Analog Outputs - %AQ | 512 words |
| System Registers (for reference table viewing only; cannot be referenced in user logic program) | 28 words (%SR) |
| Timers/Counters | >2,000 |
| Shift Registers | Yes |
| Built-in Serial Port | 1 (uses connector on PLC power supply). Supports SNP/SNP-X slave protocols. Requires CMM module for SNP/SNP-X master, CCM, or RTU slave protocol support; PCM module for RTU master support. |
| Communications | LAN - Supports multidrop. Also supports Ethernet, FIP, Profibus, GBC, GCM, GCM+ option modules. |
| Override | Yes |
| Battery Backed Clock | Yes |
| Interrupts | Supports the periodic subroutine feature |
| Type of Memory Storage | RAM and Flash |
| PCM/CCM Compatibility | Yes |
| Floating Point Math Support | Yes. Firmware-based in firmware releases 9.0 and later. |
