Product Description

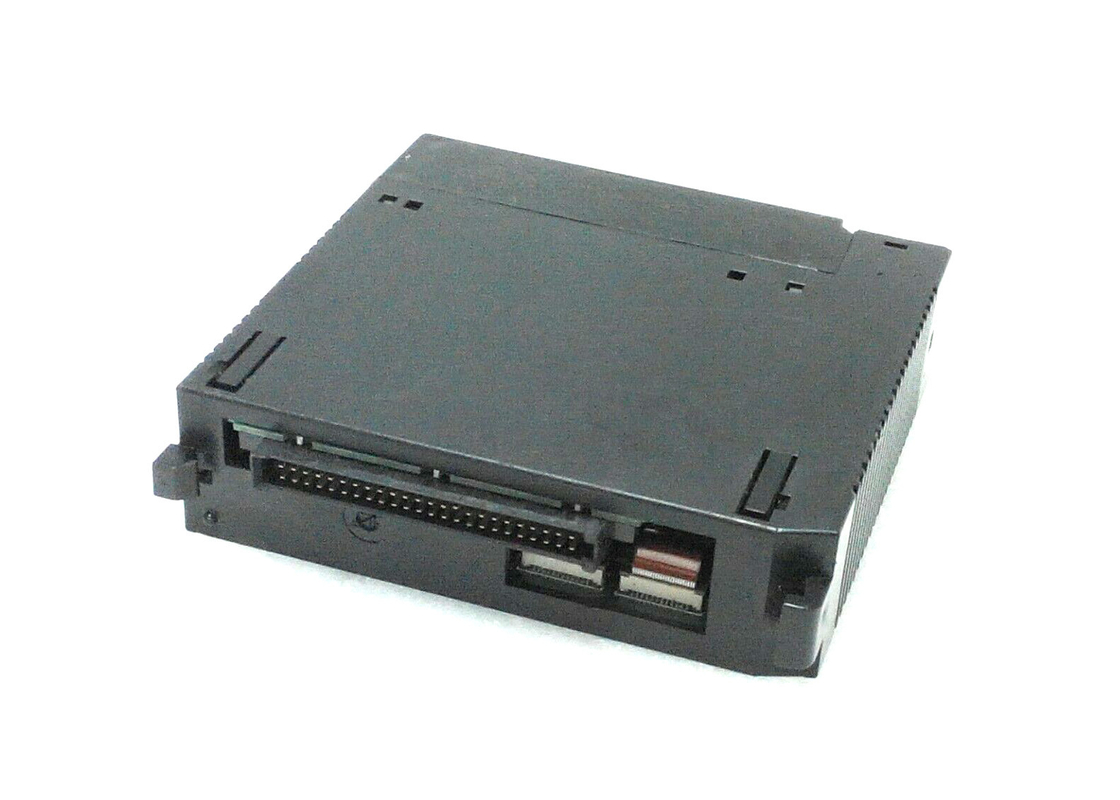

The IC693CPU352 is a single slot CPU module manufactured by GE Automation and Controls for the Series 90/30 PLC system. The total number of Baseplates for each system is 8, which includes one baseplate for CPU, and seven remote and expansion. The load requirement of the Power Supply is 890mA from a +5Volts DC supply. The processor type is an 80386EX with a processing speed of 25Mhz. The optimum operating temperature for the system is between 0 degrees and 60 degrees Celsius (32 degrees and 140 degrees Fahrenheit). This specification is also referred to as the ambient temperature. The typical rate of scanning is 0.22milliseconds for every 1K logic (I.e., Boolean contacts).

Since the release of version 9.0 firmware, the maximum program memory for the user is 240K Bytes. However, the effective available size of the program memory for the user depends on configured amounts for configurable types of word memory. The discrete input and output points are 2048 each, 4096 bits for internal coils, 1280 bits for global memory, 256 bits for temporary output coils, 128 bits total (%S, %SB, %SA, %SC which have 32 bits for each) as references for system status. There are %R (Register Memory), %AI (Analog Inputs), %AQ (Analog Outputs), all configurable in increments of 128 words.

There are more than 2000 numbers of Timers/Counters, and there are also Shift Registers present. There are three serial ports built-in, which support RTU slave and SNP or SNPX slave, and SNP or SNPX master or slave, and Serial Input/output (on port 1 and port 2). Communications support LAN (multidrop supported), Ethernet, Profibus, FIP, GBC, GCM+ option modules. Flash memory and RAM are the available storage memory types. The Logicmaster configuration and programming software support CPU352.

The IC693CPU352 CPU from GE Fanuc is a Series 90-30 CPU module. It is designed to function at the center of a programmable logic controller or PLC from the Series 90-30 product line. In a Series 90-30 PLC, the IC693CPU352 CPU module is installed in a special CPU baseplate, and the PLC can contain as many as 7 additional baseplates which are remote baseplates or expansion baseplates. The voltage input rating of the IC693CPU352 CPU module is 5 Volts DC while its current rating is 910 milliamps. The maximum processor speed of this CPU is 25 Megahertz. The IC693CPU352 CPU module can operate at full power in a temperature range between 32 and 140 degrees Fahrenheit or 0 and 60 degrees Celsius.

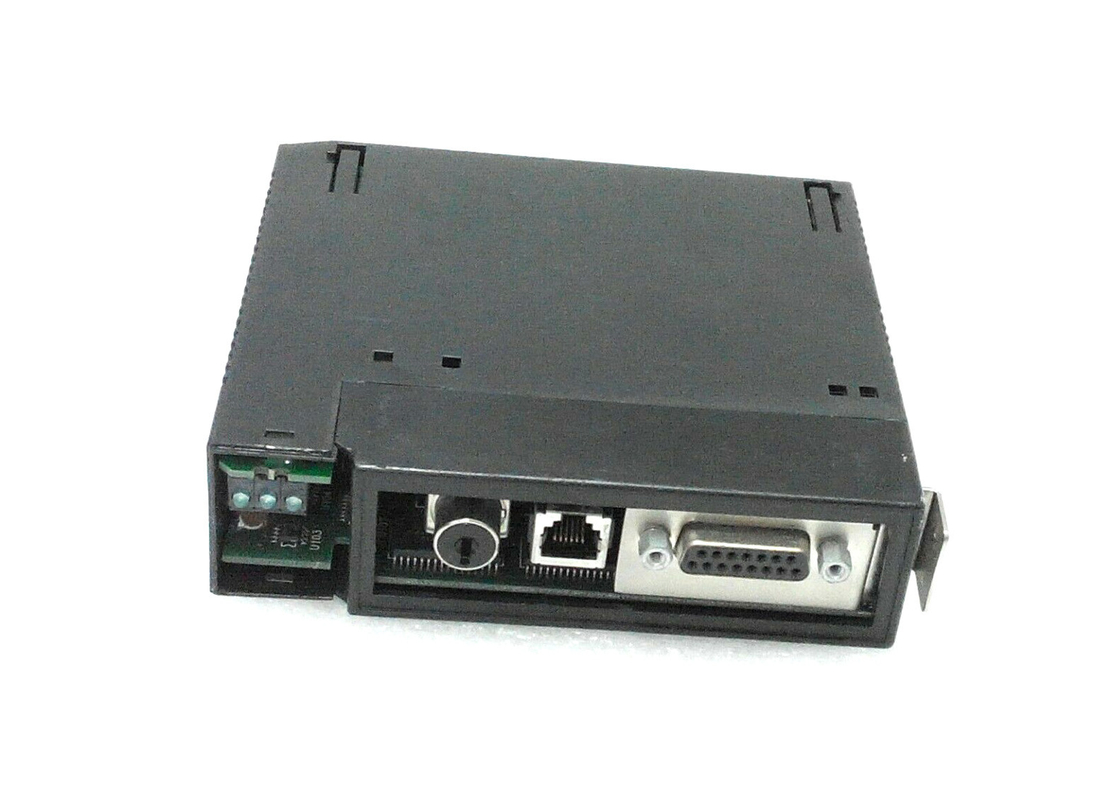

The GE Fanuc Series 90-30 IC693CPU352 CPU module comes with 3 serial ports for communication, and it supports the RTU slave protocol, the SNP slave protocol, and the SNPX slave protocol. This CPU dissipates about 4.55 Watts of heat during operation. Option modules can be connected to the IC693CPU352 CPU module to allow it to communicate through different networks. These option modules include Profibus, Ethernet, FIP, GBC, GCM+, and multi-drop LAN modules. The IC693CPU352 CPU module is capable of scanning 1 KB of logic approximately every 0.22 milliseconds. There is a shield ground connector on the bottom of the CPU module that allows it to be protected. The operating modes supported by the IC693CPU352 CPU module are the Run mode and the Stop mode, and the users can select the mode that they want with a keyswitch.

Technical Specifications

Technical Specifications for IC693CPU352
