GE FANUC IC693MDL231 , 240 Volt AC Isolated Input Module , Series 90-30

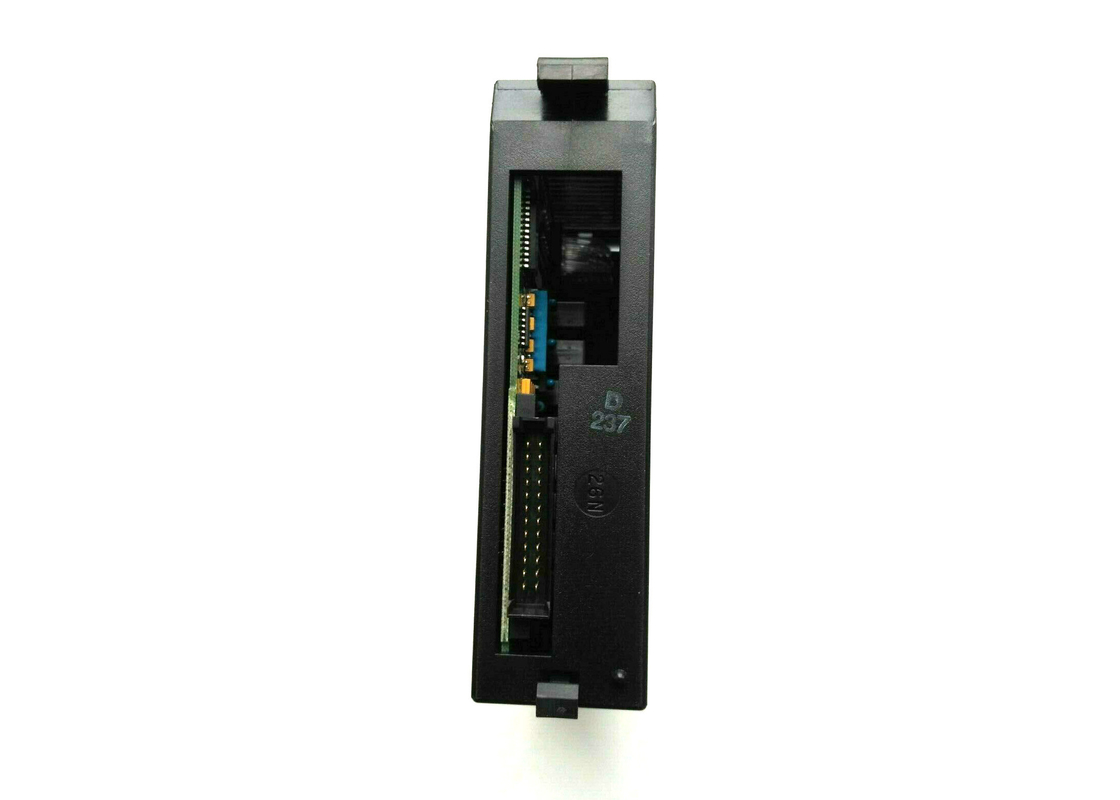

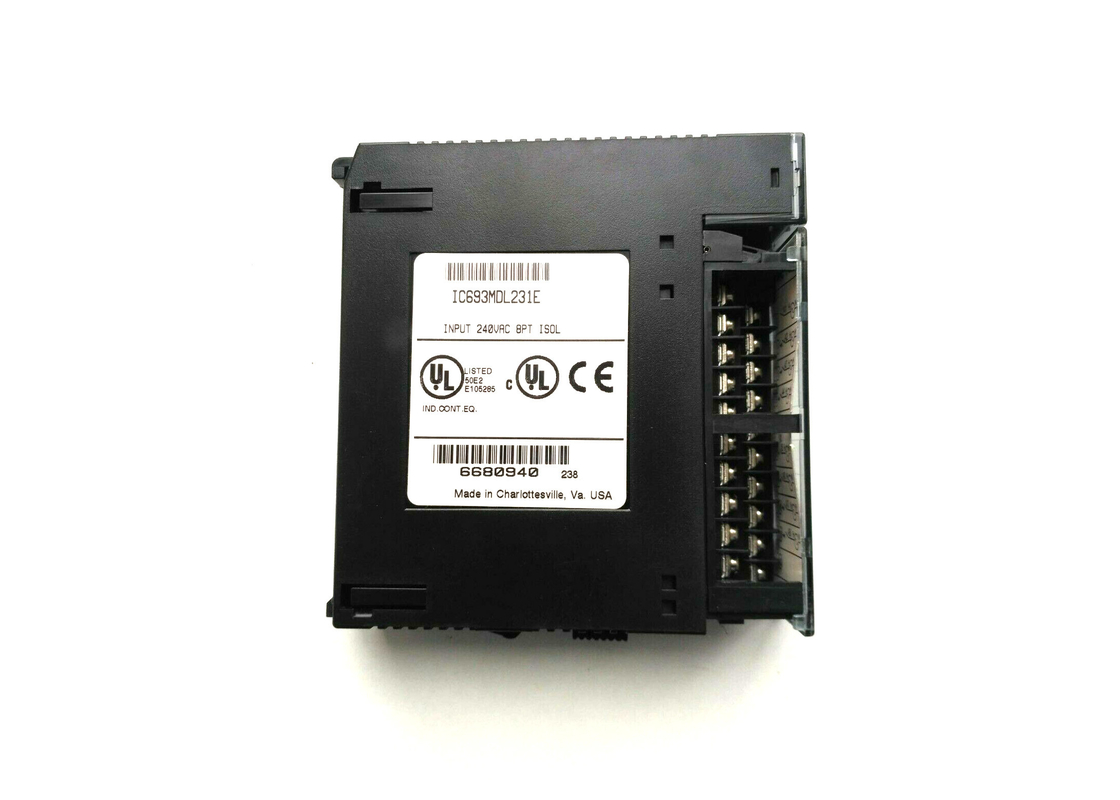

Large Image :  GE FANUC IC693MDL231 , 240 Volt AC Isolated Input Module , Series 90-30

Product Details:

Place of Origin: USA
Brand Name: GE
Model Number: IC693MDL231

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100
Detailed Product Description
Brand: GE Fanuc Model: IC693MDL231
Series: Series 90-30 Product Type: Isolated Input Module
Voltage: 240 V AC Inputs: 8
Frequency: 50/60 Hertz Input Current At A Rated Voltage: 15 MA
Isolation Between Field Side And Logic Side: 1500 V RMS
High Light:

24VDC Negative Logic Input module

,

24VDC Positive Logic Input Module

,

2A Negative Logic Output Module

GE FANUC IC693MDL231 , 240 Volt AC Isolated Input Module , Series 90-30

Product Description


The GE Fanuc IC693MDL231 is a 240 volt AC Isolated Input module. Compatible with the Series 90-30 Programmable Logic Controller, this input module has 8 isolated input points. Each point has a common power input terminal. There are many input devices that users can operate with this module because of its input characteristics. Such devices as pushbuttons, electronic proximity switches and limit switches may be operated once an external power source has been supplied by the user. Of course, as the IC693MDL231 is an AC module, it cannot use DC power.

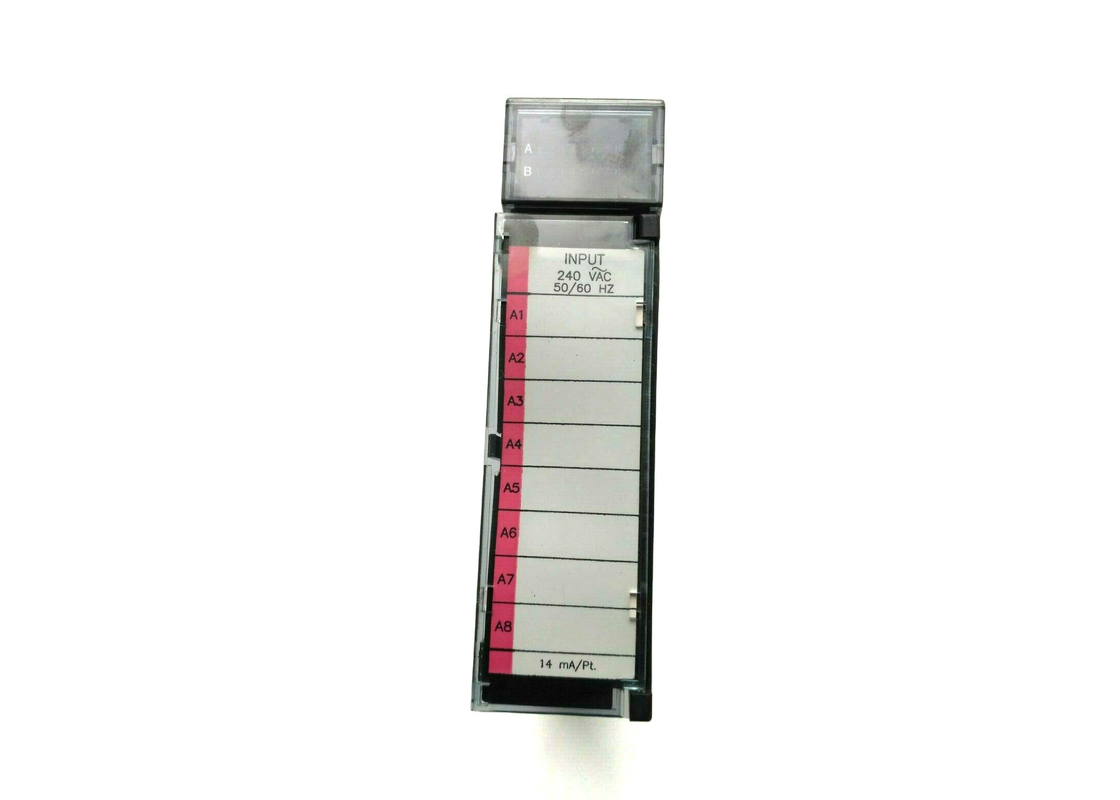

Like many similar modules in the 90-30 range, this module has an LED block on the top. There is a single row of 8 LEDs, which represent the ON/OFF status of points 1 to 8. The door panel on the front of the IC693MDL231 module allows for an insert between the inner and outer surfaces. When the door is closed over, the outer surface of the insert can be used to record information on circuit identification. There is circuit wiring information on the inner surface. The edge of the insert is colored red, indicating that the IC693MDL231 is a high-voltage module. Users can install the input module in a 5-slot or 10-slot baseplate of a Series 90-0 system, using any I/O slot.



About IC693MDL231

The IC693MDL231 isolated input module is a product of the GE Intelligent Platforms/GE Fanuc. It belongs to the Series 90-30 product line and it operates on a voltage of 240 Volts AC. This module is well-matched with the GE Series 90-30 PLCs. This input module comprises 8 isolated input points, with each point having a single power input terminal. It has input properties that make it best for use with different input devices which can be operated with the IC693MDL231 module due to its input features. These devices include electronic proximity switches, limit switches, and pushbuttons which can be operated when the users supply an external source of power. This input module does not use DC power because it is an AC module.



The GE Fanuc IC693MDL231 input module, like many other Series 90-30 modules, features an LED block located on the top of this device. This module comes with 8 LEDs in a single row that show the "ON" and "OFF" status for input points 1 to 8. It also has a door panel on the front that allows for an insert between the interior and exterior surfaces. The outer surface of the insert records the information on circuit identification whenever the door closes. Additionally, there will be circuit wiring information on the interior surface of the insert. The insert comes with a red edge, which indicates that the IC693MDL231 module is a high-voltage device. The operators of this module have the ability to install an input module in any of the 5-slot or 10-slot baseplates of the Series 90-30 PLC by using the input and output slots.



Technical Specifications


Rated Voltage: 240 Volt AC
# of Inputs: 8
Freq: 50/60 Hz
Input Current: 15 mA at rated Voltage
Isolation: 1500 volts RMS between field side and logic side
DC Power: No





Technical Information



Rated Voltage 240 volts AC, 50/60 Hz
Input Voltage Range 0 to 264 volts AC, 50/60 Hz
Inputs per Module 8 (each input point has a separate common)
Isolation 1500 volts RMS between field side and logic side
  500 volts RMS between inputs
Input Current 15 mA (typical) at rated voltage
Input Characteristics:
On-state Voltage 148 to 264 volts AC
Off-state Voltage 0 to 40 volts AC
On-state Current 6 mA minimum
Off-state Current 2.2 mA maximum
On response Time 30 ms maximum
Off response Time 45 ms maximum
Power Consumption 60 mA (all inputs on) from 5 volt bus on backplane
