| Brand: | GE Fanuc | Model: | IC693MDL330 |
|---|---|---|---|
| Series: | Series 90-30 | Product Type: | Input Module |
| Power Type: | AC | Output Voltage Range: | 85-264V AC |
| Number Of Input Points: | 8 | Isolation: | N/A |
| Load Current Per Point: | 1A | ||
| High Light: | 24VDC Negative Logic Input module,24VDC Positive Logic Input Module,2A Negative Logic Output Module |
||

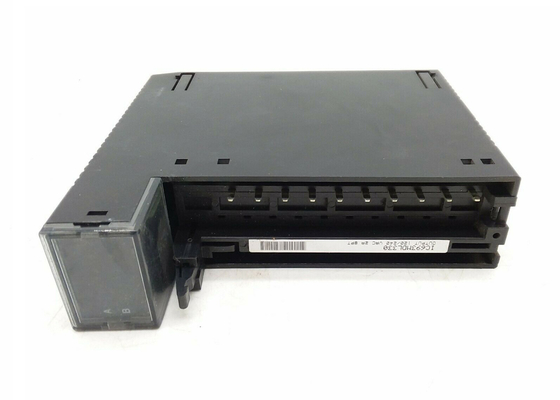

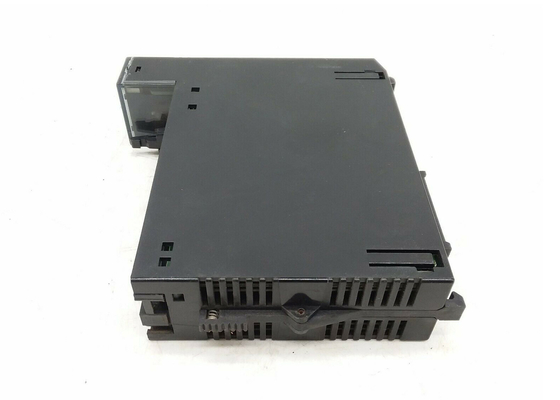

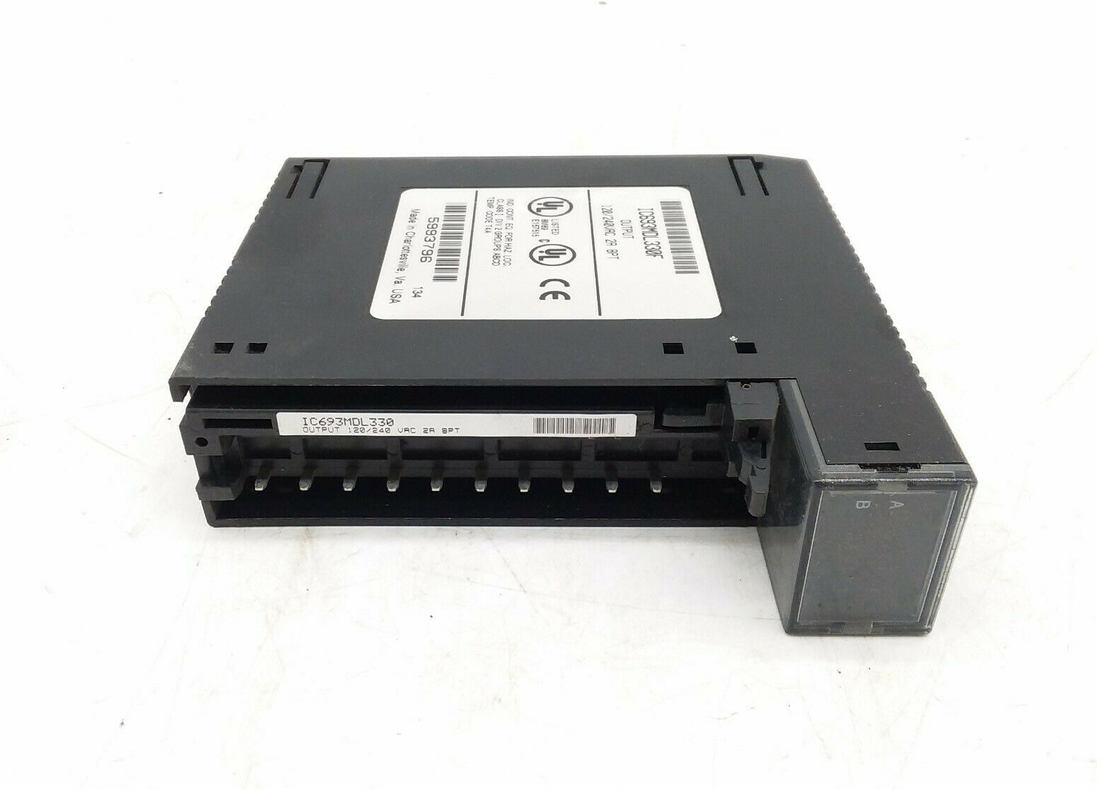

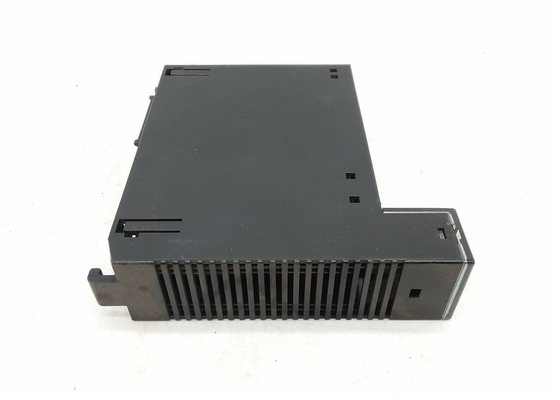

IC693MDL330 is a 120/240 volt, 2-Amp AC Output Module for the GE Fanuc Series 90-30. The module provides four output points in each of its two isolated groups for a total of eight. The two commons are not compound for this module. This allows each group to perform on completely individual AC-supplied phases. Alternatively, they can all also work using the same supply. Each group also has the protection of a 5-ampere fuse for each common. There is an RC snubber in place for each output to protect against transient electrical noise on the power line.
The output voltage range for this module is 85 to 264 volts AC, 50/60 Hz. The output current is 2 amperes maximum per point. Per group, the maximum is 4 amps at 40 °C (104 °F). The IC693MDL330 provides high-degree inrush current (10x the rated current/ 20 amperes maximum for one cycle), making the outputs suitable for controlling a wide range of inductive and incandescent loads. The minimum load current is 100 mA.
The user must provide AC Power for operating loads connected to outputs. DC is not supported. The IC693MDL330 module has LED indicators at the top, which display the ON/OFF status for each point. There are two horizontal rows with eight green LEDs each, as well as one LED at the center between the two rows. The eight upper LEDs, which are labeled A1 through 8, indicate output status. The red “F” LED indicates a blown fuse, showing ON if this happens. The IC693MDL330 has an insert between the inside and outside surface of the hinged door. When the hinged door is closed, the surface facing the inside of the module displays circuit wiring information, and circuit identification information can be recorded on the external surface. The external left edge of the insert is color-coded red to indicate a high-voltage module. The IC693MDL330 has an ON response time of 1 ms maximum, while the OFF response time is ½ cycle maximum. Its power consumption is of 160 mA (with all outputs on) from 5 voltages bus on backplane.
| Rated Voltage: | 120/240 volts AC |
| # of Inputs: | 8 |
| Freq: | 50/60 Hz |
| Output Current: | 2.0 A per point |
| Output Voltage Range: | 85 - 132 volts AC |
| DC Power: | No |
| Rated Voltage | 120/240 volts AC |
| Output Voltage Range | 85 to 264 volts AC, 50/60 Hz |
| Outputs per Module | 8 (two groups of four outputs each) |
| Isolation | 1500 volts between field side and logic side |
| 500 volts between each group | |
| Output Current t |
2 amp maximum per point 4 amps maximum per group at 40 ° C (104°F) |
| Output Characteristics | |
| Inrush Current | 20 amps maximum for one cycle |
| Minimum Load Current | 100 mA |
| Output Voltage Drop | 1.5 volts maximum |
| Output Leakage Current | 3 mA maximum at 120 volts AC |
| 6 mA maximum at 240 volts AC | |
| On Response Time | 1 ms maximum |
| Off Response Time | 1/2 cycle maximum |
| Power Consumption | 160 mA (all outputs on) from 5 volt bus on backplane |
