Product Description

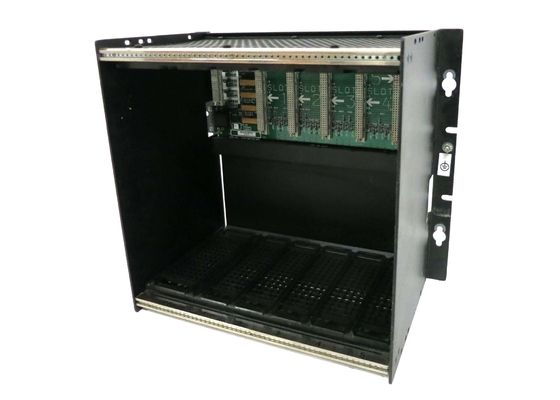

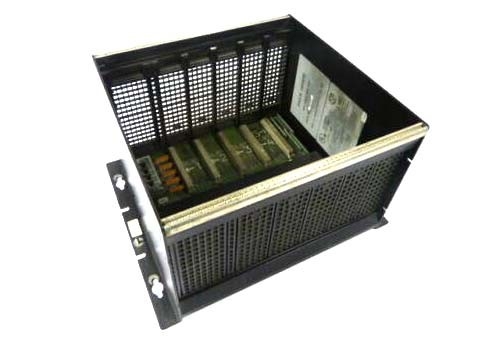

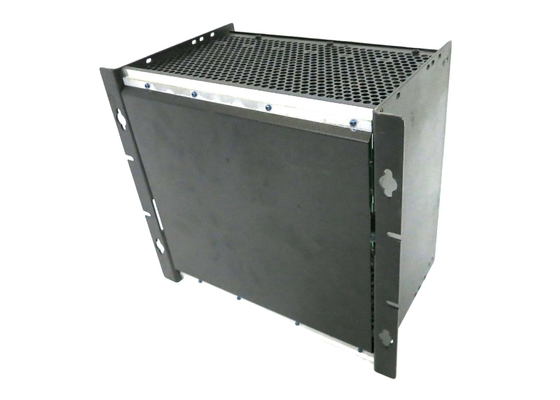

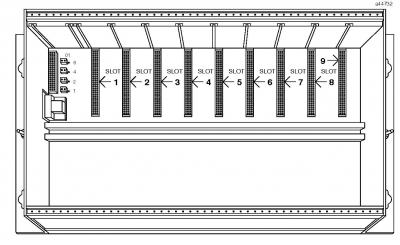

The IC697CHS750 is a 5-Slot Rear Mount I/O Rack by GE Fanuc for the series 90-70 PLCs. It is a rack used to connect with modules that belong to the IC697 PLC series. Racks with the same characteristics as this one are IC697CHS790 and IC697CHS791. The difference between them is the number of slots and the mounting orientation. To power this rack, there are different types of AC or DC IC697 power supplies. In some cases, a single power supply can be used for two racks with a power extension cable. The rack’s size is 11.15’’x 19’’x 7.5’’ but the space needed for mounting the rack should be larger to ensure adequate air flow.

To power the IC697CHS750, use the top left slot to connect the power supply. On both the right and the left sides of the panel, there are ground studs. When installing the rack, some space must be empty to provide access. More space is required to connect two racks with the same power supply. Around 6 inches is adequate. There is also an optional VME J2 Backplane Kit that can be helpful when installing the rack.

The IC697CHS750 rack is compatible with high-density modules of the IC697 series. The wires that connect to these modules enter the rack through the bottom cavity, which can provide space for up to forty #14 wires. To program the I/O point references of the modules, the MS-DOS programming software configurator function can allow the user to configure the equipment without the need to access jumpers or DIP switches.

About IC697CHS750

The IC697CHS750 rack is an I/O rack manufactured by GE Fanuc. It connects different components and modules from the GE Series 90-70 PLC product line together. It is equipped with 5 slots and it has a rear mounting mechanism. The rack has an open enclosure and it is suitable for indoor use only. It can be easily mounted on a factory floor. The components that are connected in the 5 slots can have individual power supplies of their own on the left side of the module position. The rack is compact in size and it weighs around 2 kilograms. It has dimensions of 11.15 inches in height, 12.60 inches in width, and 7.5 inches in depth. The enclosure of the rack is 254 millimeters deep. The IC697CHS750 rack uses airflow to prevent overheating. For convection cooling, the flow of air between the I/O rack and the nearest air outlet should not be obstructed.

The GE Fanuc Series 90-70 IC697CHS750 I/O rack comes with a current rating of 20 Amps. It runs with a voltage supply of 5 Volts DC. The rack supports additional accessories including the backplane J2 jumper kit that is useful during the installation process. The rack is equipped with a removable terminal block that can be accessed through the hinged door. The cable to the rack is passed through the bottom of the hinged door. An I/O terminal restraining strap is present on the side of the rack that holds the terminal firmly in place. The power supply connector is situated on the inside of the rack along with the spacer. The system noise can be eliminated by using grounding measures.
