| Brand: | GE Fanuc | Model: | IC697CPU782 |
|---|---|---|---|
| Series: | Series 90-70 | Product Type: | CPU Module |
| Compatibility: | GE Fanuc 90-70 PLCs | Clock Speed: | 16 Megahertz |
| Maximum RAM: | 512 Kilobytes | Current Input: | 1.6 Amps |
| Voltage Input: | 5 Volts DC | Warranty: | 1 Year |
| High Light: | ESCPP Positive Logic Output Module,24VDC Positive Logic Output Module,RS485 Digital I O Module |
||

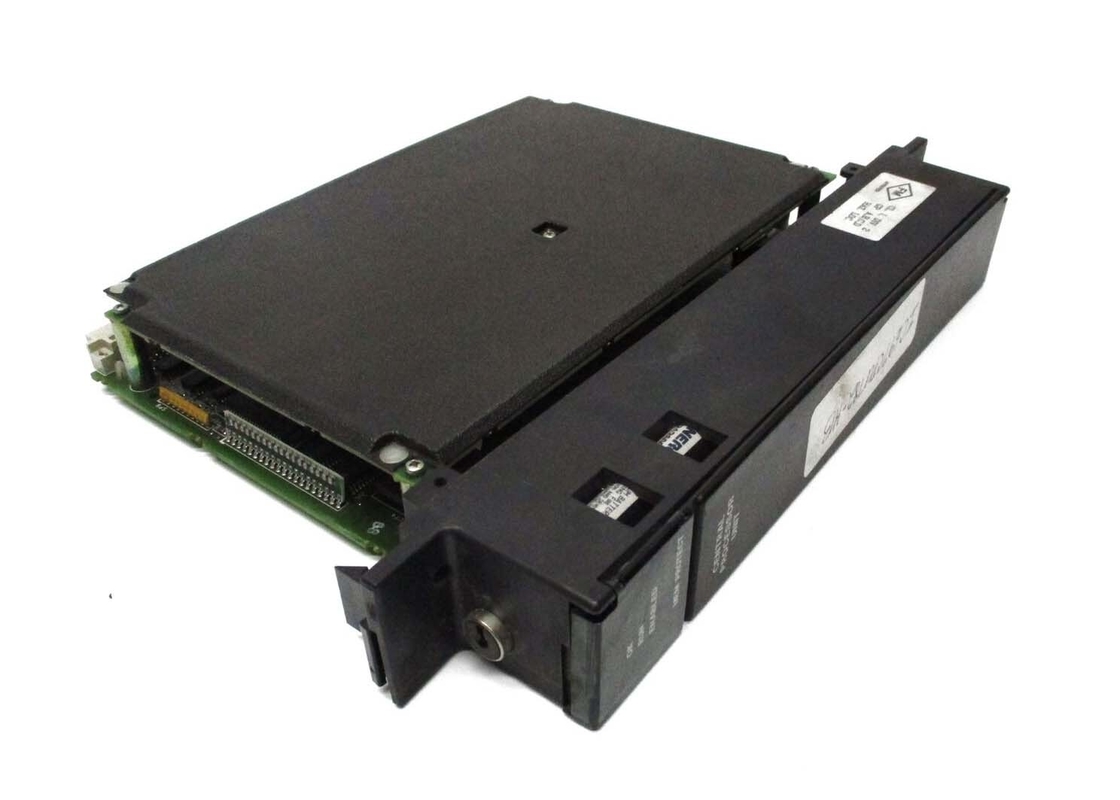

The IC697CPU782 is a Programmable Logic Controller designed to fit into a single rack slot. It is capable of controlling machinery and material handling systems in real-time. A rack-mounted backplane gives this device the ability to communicate with various I/O modules. To operate and control this device, use the run/stop control switch or a connected computer with the corresponding software. The IC697CPU782 has a 16MHz microprocessor with the ability to perform floating point calculations at performance speeds of 0.4 microseconds. This device can process various mixtures of up to 12K inputs and outputs and 8K analog I/O.
The IC697CPU782 requires a memory expansion board to store user data and program information. This expansion board provides up to 512 KB of volatile memory and 256 KB of flash memory. Volatile memory is maintained by a CMOS RAM battery. To install this expansion board, the CPU must first be initialized by a connected computer. IC697 LAN interface modules, IC660 and IC661 bus controllers, numerous coprocessor modules, various communications modules, and all discrete and analog I/O modules from the IC697 family are compatible with the IC697CPU782.
This device is configured by software running from a programmer computer. DIP switches and jumpers are not necessary for programming. Configuration is possible via serial or parallel interface. An Ethernet connection is also possible if the proper hardware is installed. Either MS-DOS or a Windows 95 and Windows NT computer running appropriate software is needed to program the IC697CPU782. A password protects the configuration settings along with a built-in memory protect key switch.
Detailed instructions for installing the IC697CPU782 can be found in the device manual. Disconnect power from the rack before attempting to install. Set the memory key switch in the off position. The run/stop switch should be in the stop position. Connect the memory expansion board. The CMOS RAM battery can be placed into either connector. Insert the IC697CPU782 into the rack, and power it on.
The GE Fanuc IC697CPU782 module is a 16 megahertz CPU module for GE Series 90-70 PLCs. The vibration rating for the module is 1 G at 57 to 150 Hertz. The shock rating is 15 G for 11 milliseconds duration. The operating temperature range for the Series 90-70 systems is 0 to 60 degrees Celsius. The storage temperature range is -40 to 85 degrees Celsius. The recommended range for the relative humidity level is from 5 to 95%, non-condensing. The recommended enclosure is a steel cabinet with an environmental protection rating of IP 54 to provide protection against splashing water and dust. GE Fanuc products are approved for global use and they are manufactured with ISO9001 quality assurance for applications in industrial environments. Agency approvals for GE Fanuc products include the CE, UL508, CSA22.2, and UL2279 standards. Standard 9-slot and 5-slot racks are used for installing the IC697 programmable controllers.
The IC697CPU782 module must be installed in slot 1 of the PLC rack. The IC697CPU782 module supports 32-bit instructions and its memory is expandable to 512 KB. The CPU module also supports floating point operations. The microprocessor used for the IC697CPU782 module is 80386DX at 16 megahertz. Up to 8000 analog I/O and 12,000 inputs/outputs are supported by the CPU module. The IC697CPU782 module can be programmed through software which runs on the MS-DOS or MS-Windows operating system. The computer running the programming software can connect to the IC697CPU782 module through a serial connection, a parallel connection, or through Ethernet connections. For serial connections, an integrated RS-422/RS-485 serial port is provided on the CPU module. Ethernet connections require the installation of an optional communication module. The IC697CPU782 module requires 1.6 Amps of current from the PLC backplane at 5 Volts DC.
| Module Type: | Expandable, Floating Point CPU |
| Number of Slots: | 1 (Single slot) |
| Current Required: | 1.6 Amps |
| Number of Points: | 12K inputs and outputs (any mix) |
| Serial Ports: | One |
| Supports: | IC660/IC661 I/O and IC697 I/O |
|
Batter Shelf Life Memory Retention |
10 years at 200 C (680 F) 6 months nominal without applied power |
| Current required from 5V Bus | 1.6 Amps (includes expansion memory) |
| Time of Day Clock (internal timing) Accuracy Elapsed Time Clock |
3.5 seconds per day .01% maximum |
| Serial Port | RS422 / 485compatible,Programmer Serial Attachment |
| VME | System designed to support the VME standard C.1 |
