Product Details:
Payment & Shipping Terms:
|
| Brand: | GE Fanuc | Model: | IC697CPX772 |
|---|---|---|---|
| Series: | Series 90-70 | Product Type: | CPU Module |
| Compatibility: | GE Fanuc 90-70 PLCs | RAM: | 512 Kilobytes |
| NV-RAM: | 256 Kilobytes | Current Draw: | 3.1 Amps |
| Voltage Input: | 5 Volts DC | Warranty: | 1 Year |
| Highlight: | ESCPP Positive Logic Output Module,24VDC Positive Logic Output Module,RS485 Digital I O Module |
||

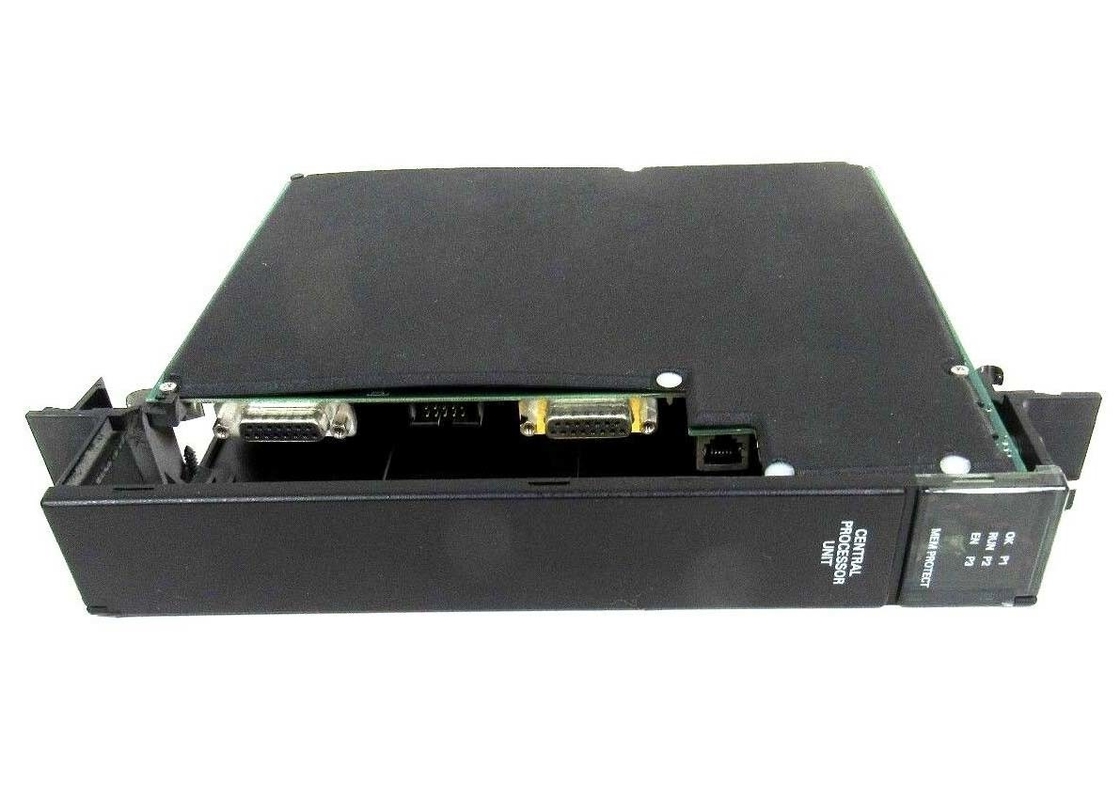

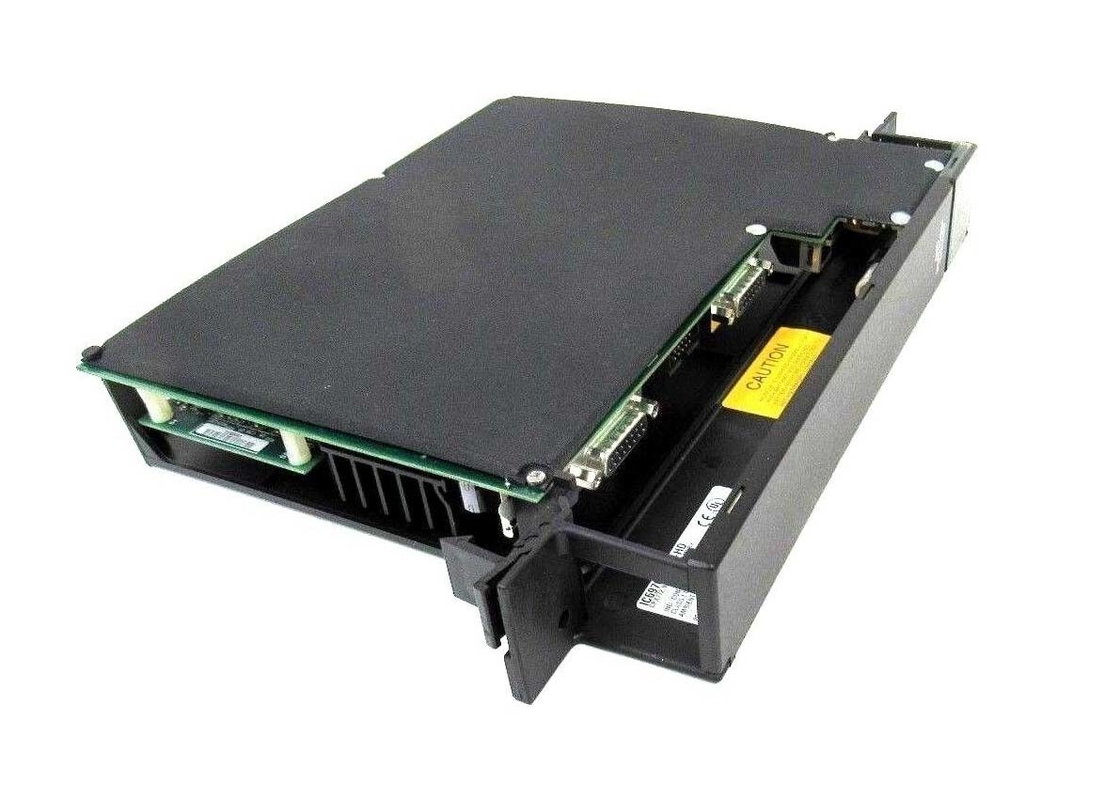

The GE Fanuc IC697CPX772 is a single-slot CPU with real-time control functions over machines and processes. This module comes with 512 KB of built-in RAM for the storage of user data, including program, configuration, and register data. IC697CPX772 has a non-volatile flash memory of 256 KB and operational memory used to store user data and firmware. The operating conditions for the IC697CPX772 module include an enclosure of minimum size without any air flow into the system. The operating temperature of this module is 50 degrees Celsius. The module is subject to derating if the 100Watt DC/AC supply or 90-Watt DC supply is in use.
IC697CPX772 includes seven green LEDs on its front which indicate the status of the CPU: the position of the toggle switch, memory protection, serial port activity, and the state of the program. A three-position switch (RUN/STOP) is used to control its operations. User data is protected using software passwords. A key switch is used to protect it manually. The end user must carefully install the PLC equipment for safe and proper operation. The module should power up and the top left (OK) LED will blink. When diagnostics have successfully finished, the top left LED will remain ON, and the second (RUN) and third (EN) LEDs will be OFF. The fourth (bottom left) LED (MEM PROTECT) is off if the keyswitch is in the OFF position. The CPU is now ready to be programmed. This module does not require any jumpers or DIP switches for its configuration.
The GE Fanuc IC697CPX772 module is a 96 megahertz CPU module. The IC697CPX772 module is a 32-bit point module with 512 KB of user memory. Additionally, the module contains 256 KB of non-volatile flash memory. The IC697CPX772 module takes up one slot in the PLC rack. The microprocessor used by the module is an 80486DX4 microprocessor clocked at 96 megahertz. Three integrated serial ports are provided on the module. The 3 ports are independent and they can be accessed from connectors on the front of the module. The serial ports can be used to interface with serial devices and serial programming terminals. Port 1 supports the RS-232 serial communication protocol and it has a 6-pin RJ-11 connector. Port 2 supports the RS-485 serial communication protocol and it has a 15-pin female D-connector.
Port 3 on the IC697CPX772 CPU module also supports the RS-485 protocol. The difference is that Port 2 is optocoupler isolated while Port 3 is not isolated. The IC697CPX772 module has a current consumption rating of 3.1 Amps. The input voltage required by the module is 5 Volts DC. The working temperature range of the module is from 32 to 140 degrees Fahrenheit. The following 3 different types of rack fan assemblies can be used with the IC697CPX772 module: 120 Volts AC-powered assembly, the 240 Volts AC-powered assembly, and the 24 Volts DC-powered assembly. The IC697CPX772 module supports floating point math, 2000 inputs/outputs, and 8000 analog I/O. The module is programmed by software running on DOS or Windows-based systems. The programming computer can connect to the CPU module over serial connections or over Ethernet connections.
| Module Type: | Central Processing Unit |
| Number of Slots: | 1 (Single slot) |
| Current Required: | 3.1 Amps |
| Number of Points: | 2K inputs and outputs (any mix) |
| Serial Ports: | Three (RS-232 and RS-485) |
| Supports: | IC660/IC661 I/O and IC697 I/O |
|
Battery: Shelf life Battery: Memory retention |
5 years at 20o C (68o F) 6 months nominal without applied power. |
| Current required from 5V bus | 3.1 Amps nominal |
| Operating Temperature | 0 to 60oC (32oF to 140oF) |
|
Time of Day Clock accuracy Elapsed Time Clock (internal timing) accuracy |
" 3.5 seconds per day maximum " .01% maximum |
|
Serial Ports Port 1: RS-232 compatible Port 2: RS-485 compatible (optocoupler isolated) Port 3: RS-485 compatible (not isolated) |
Programmer Serial Attachment, or other serial devices Protocols supported: SNP Slave only |
| VME Compatibility | System designed to support the VME standard C.1 |
