GE FANUC IC697HSC700 , High-Speed Counter (HSC) Module Designed

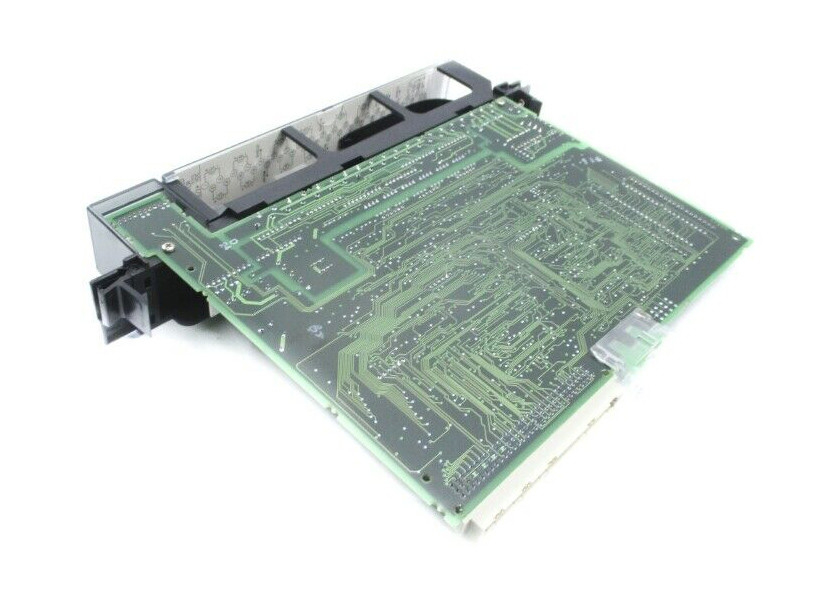

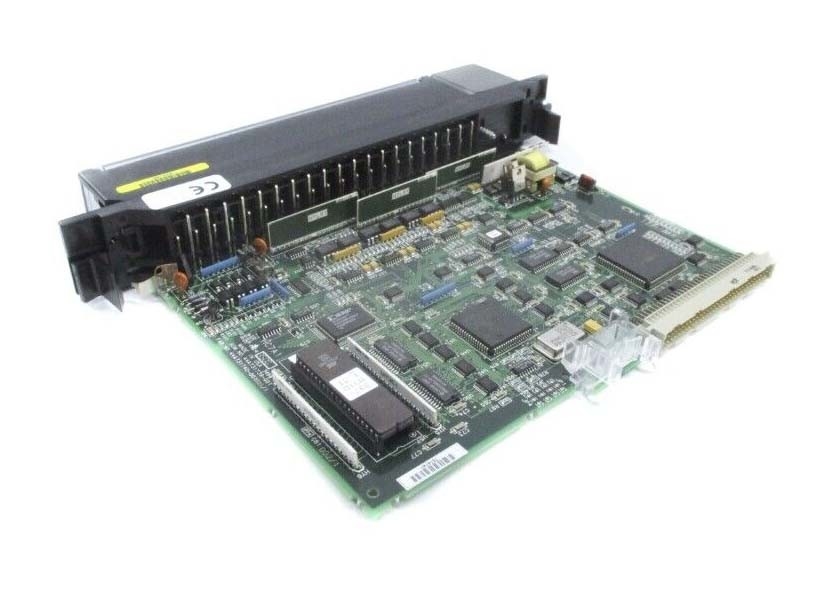

Large Image :  GE FANUC IC697HSC700 , High-Speed Counter (HSC) Module Designed

Product Details:

Place of Origin: USA
Brand Name: GE
Model Number: IC697HSC700

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100
Detailed Product Description
Brand: GE Fanuc Model: IC697HSC700
Series: Series 90-70 Product Type: High-Speed Counter
Processing Speed: 200 KHz Input Voltage: 5 V DC
Input Voltage Range: 10-30 V DC Output Voltage: 30 V DC
Input/Output Type: Positive Logic Warranty: 1 Year
High Light:

ESCPP Positive Logic Output Module


24VDC Positive Logic Output Module


RS485 Digital I O Module

GE FANUC IC697HSC700 , High-Speed Counter (HSC) Module Designed

Product Description

The IC697HSC700 is a High-Speed Counter (HSC) Module designed for the 90-70 series created by GE Fanuc. Features of the high-speed counter module include a single slot, five selectable counter types, 12 single-ended or differential inputs, TTL, non-TTL, and magnetic pickup input thresholds, and four positive logic outputs with LEDs that indicate status. This module also has an external oscillator and built-in +5 VDC output. Configuration is completed via MS-DOS or Windows over Ethernet TCP/IP or the SNP port. The configuration function is already installed on the programming device, which can be a compatible PC.

The IC697HSC700 module processes rapid pulse signals directly (up to 200 KHz or 800 KHz for Type E in A Quad B mode. Functions include the ability to sense inputs, process input count data, and control outputs without requiring communication to the PLC CPU. The module has a straightforward, easy to use PLC interface ideal for industrial applications, including turbine flowmeter, meter proving, velocity measurement, material handling, and motion/process control.

High speed counter types for the IC697HSC700 module include A, B, C, D, and E configurations. The counters all have 12 inputs, four outputs (preset), and PLC ladder interrupt ability (optional). Count rates for types A-D are 200 KHz maximum with the high frequency filter and 30 Hz with the low-frequency filter. The Count, Count Disable, and Preload inputs for each counter can be configured for a high frequency filter (2.5 microseconds) or a low-frequency filter (12.5 milliseconds).

For type E, the maximum count rate with the low-frequency filter (12.5 milliseconds) is 30 Hz; with the high-frequency filter (2.5µs), the maximums are 200 KHz in Up/Down mode and 800 kHz in A Quad B mode. The Count, Count Disable, and Preload inputs for each counter can use either filter, however, the Strobe and Strobe Disable inputs use only the high-frequency filter. See the user manual for more information on type operating features.

Technical Specifications

Module Type: High Speed Counter
Processing Speed: 200 KHz
Input Voltage Range: 5 VDC or 10 to 30VDC
Output Voltage Range: 30VDC
Input/Output Type: Positive Logic
Power Consumption: 500mA @ 5VDC



Technical Information



ModuleOperating Voltage 5 VDC (from backplane)
ModuleCurrentDrain 1A + (10 mA x number of ON outputs) + (1.6 x encoder current)


Types A - D, and Type E in Up/Down mode


200 KHz

Type E in A Quad B mode 800 KHz
OutputPoints Powered by user supplied 5V, or 10 to 30 VDC
LEDs MODULE OK and O1 - O4 (Output circuit. status)
Input and Output Isolation Peak (1 second)



SteadyStatus 30 V AC / DC


VoltageRange TTL


MagneticPickup (I1 to I4 only) InputThresholds (I1 to I12)

Von Voff

Encoder Power


Input FilterDelay IN1 to IN8

IN9 to IN12

Input Impedance Input Hysteresis Input Cable




10 to 30 VDC
400 mV
TTL Non-TTL MagneticPickup
1.4V 8.0V 400 mV
0.8V 5.0V 200 mV
5 VDC, 500 mA @40ï‚°C (104ï‚°F), 300 mA @60ï‚°C
10 ms or 2 sselectable
2 s
6000 ohms
250 mV typical
Maximum length: 30 meters (100 feet)
OutputType PositiveLogic,opticallyisolated
MaximumSupplyVoltage 30.0 VDC
MaximumOutputCurrent at 60ï‚°C (140ï‚°F) 1.0 A for each output using 10 to 30 VDC supply
OutputCurrent using 5 VDC supply 20 mA typical
Inductive Load Clamp Voltage –8.0 V typical
OFF State Leakage Current 10 A for each output
