Product Description

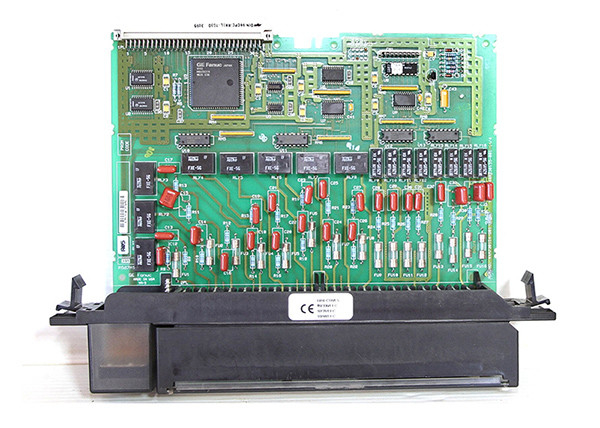

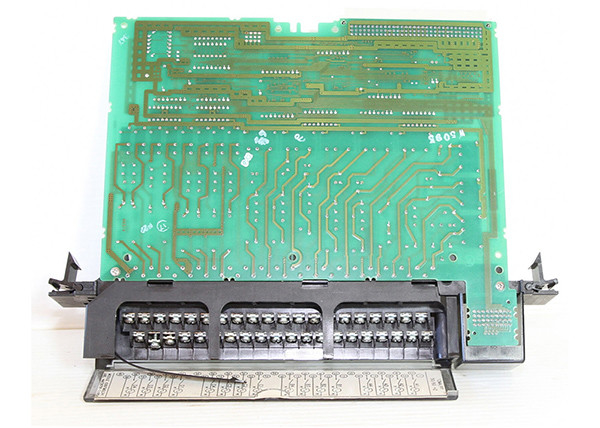

The IC697MDL241 is a 240 VAC Discrete Input Module manufactured by GE Fanuc. Highlighted features of this module include 16 individually isolated points, a 20 ms input filter, and proximity switch compatibility. The IC697MDL241 module is designed for use with a PLC (proximity logic controller). Each isolated input can be used on a separate phase of the AC supply.

The input is reactive with IEC standard current-voltage characteristics. Characteristics are compatible with a variety of proximity switches. The IC697MDL241 module is equipped with LED indicators, which show the ON-OFF status of each point on the logic side of the circuit. These can be found at the top of the module. The IC697MDL241 is mechanically keyed to maintain correct replacement with a similar type in the field. I/O references are configurable by the user and DIP switches or jumpers are not needed. Configuration is completed via the configuration function of MS-DOS or Windows programming software running on Windows 95 or Windows NT over Ethernet TCP/IP or through the SNP port. Programming Software configuration functionality is conveniently preinstalled.

The IC697MDL241 is compatible with an array of input devices, including pushbuttons, limit switches, and selector switches, as well as electronic proximity switches, both 2-wire and 3-wire. Input circuitry is capacitive to ensure low heat dissipation, which contributes to the module’s reliability and extended life. Input current characteristics provide 10mA typically in the ON state and can sink up to 5mA of leakage current when OFF. The module is compatible with a variety of 2- and 3-wire proximity switches.

About IC697MDL241

The IC697MDL241 Input Module is a discrete input module manufactured by GE Fanuc as part of Series 90-70. It operates on 240 Volts AC voltage rating and it features 16 separate isolated points with an input filter time of 20 milliseconds and proximity switch compatibility. This module is designed and intended for use with Programmable Logic Controllers (PLCs), and each isolated input can function as a single AC supply phase. It also has inputs that are reactive with the IEC standard current-voltage properties, which are compatible with different proximity switches. The GE Fanuc IC697MDL241 Module features LEDs for indicating the on and off status for each of the points on the circuit logic side. The LEDs are found on top of the module.

The GE Fanuc IC697MDL241 Discrete Input Module is mechanically keyed to provide easy replacement with a corresponding module type in the field. The users can configure the I/O references and DIP jumpers or switches are not required. These configurations can be completed through the configuration functionality of the Windows or MS-DOS programming software that runs on the Windows NT or Windows 95 operating system through the SNP port or Ethernet TCP/IP port. The programming software configuration function is preinstalled. The IC697MDL241 Module is matched with a collection of input devices such as limit switches, selector switches, pushbuttons, and 2-wire and 3-wire electronic proximity switches. The IC697MDL241 Module has capacitive input circuitry that ensures that there is low heat dissipation, and this contributes to the reliability and long life of the module. It has a typical input current of 10 milliamps in the on-state and it can also sink a leakage current of up to 5 milliamps in the off-state.
