| Brand: | GE Fanuc | Model: | IC697MDL740 |
|---|---|---|---|
| Series: | Series 90-70 | Rated Voltage: | 24 To 48 Volts DC |
| Output Current: | 2 Amps Per Point, 4 Amps Per Group | Output Voltage Range: | 20 To 60 Volts DC |
| Required Current: | 0.15 Amps | Number Of Outputs: | Number Of Outputs |
| Isolation Voltage: | 1500 Volts | Warranty: | 1 Year |
| High Light: | ESCPP Positive Logic Output Module,24VDC Positive Logic Output Module,RS485 Digital I O Module |
||

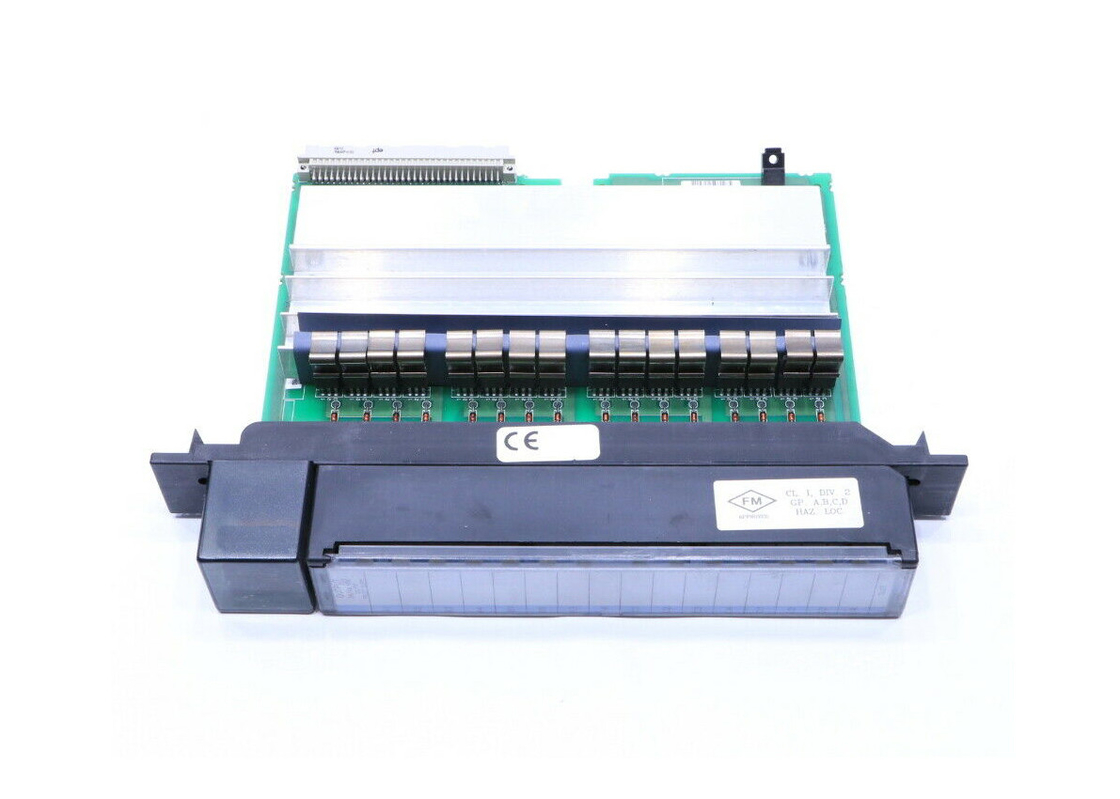

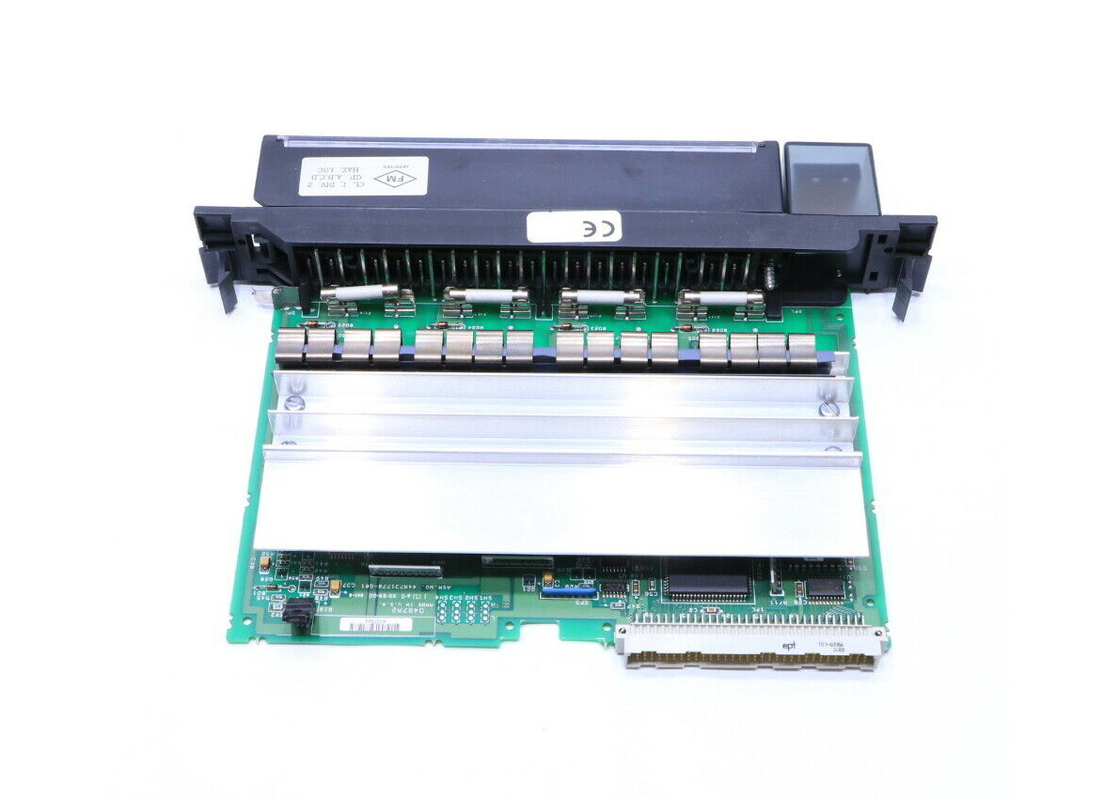

The GE Fanuc IC697MDL740 is a discrete output module that can be used to power devices like motor starters, solenoids and indicators. These loads can be connected to one of the module's 16 outlet points that are grouped into clusters of four points. The output provided to each of these points is 24/48 Volt direct current at a rate of 2 amperes per point of long-term current. The input surge conduction capacity of the IC697MDL740 is, however, more significant than 2 amperes. Each of the output point clusters has a common 10-ampere fuse.
The face of the module hosts a series of LED indicators giving the status at different locations of the circuit and the fuses.
The IC697MDL740 does not call for a DIP or jump switches for its configuration. Configuration can be carried out by the user through a Windows 96 or Windows NT running a Windows or MS-DOS software. This process is carried out using the SNP port or Ethernet TCP/IP.
Furthermore, the user is allowed to configure the IC697MDL740 such that the output points get turned off or continue in the existing state.
A mechanical key is provided with each IC697MDL740 to customize a slot to accommodate the module. The key is inserted into the back plate of the IC697MDL740 such that it slides into the centre of the slot where the module is initially installed in. This key stays in the groove even after the removal of the module to prevent accidental misuse of the slot. However, this accessory can be removed if necessary after the extraction of the IC697MDL740. The removal of the module can be carried out by manipulating the clips securing it to the slot.
The GE Fanuc discrete output module that is known as the IC697MDL740 discrete output module is frequently used with programmable logic controllers or PLCs from the GE Series 90-70 product line. The IC697MDL740 discrete output module works well with many GE PLC devices and it has a wide range of features that can contribute to PLC system enhancement and improved machine performance. The IC697MDL740 output module provides 16 outputs that require a voltage range of 20 to 60 Volts DC to operate. The specified current for the output is 2 Amps per point or 4 Amps per every output group. This particular module responds in only 2 milliseconds and its voltage drops less than 1 Volt.
The IC697MDL740 discrete output module has a high inrush capacity which is about 10 times the value of its rated current value. The specified inrush current allows the module to support various loads. This output module includes LED indicators for fuse status and device on-off status updates. All the LED indicators are located on the top of the module. The module also includes a specific keying technology that does not allow for the mounting of incompatible modules. This safety feature can be valuable since every component in the system must meet the needs of the application for which the module is applied. The configuration process of the IC697MDL740 module is simple and it can be done in several ways. All adjustments are performed on a PC that runs the Windows operating system. For additional protection, the module can be purchased with a conformal coating which comes as an optional feature. Other optional features are available from the factory too.
This content was written and compiled by DO Supply and should not be copied.
| Rated Voltage: | 24 or 48 volts DC |
| Number of Outputs: | 16 Outputs (4 groups of 4) |
| Output Current: | 2 Amps per point, 4 Amps per group |
| Current Required: | 0.15 Amps |
| Output Voltage Range: | 20 to 60 volts |
| DC Power: | Yes |
|
Rated Voltage: OutputsperModule: |
24 or 48 volts DC 16 (four groups of 4 outputs each) |
| Isolation: |
1500 volts - any output to backplane 500 volts between input groups |
| Output VoltageRange: | 20 to 60 volts |
| OutputCurrent: | 2 amps maximum per point |
| 4 amps maximum per group | |
| OutputCharacteristics- | |
| Inrush Current: | 20 amps maximum for 20 ms |
| Output VoltageDrop: | 0.8 volt (0.4 ohm) maximum |
| ResponseTime-On: | 2 msmaximum |
| ResponseTime-Off: | 2 msmaximum |
| OutputLeakage: | 1mAmaximum |
| Current Required from 5V Bus: | 0.15 amp |
| VME | System designed to support the VME standard C.1 |
