| Brand: | GE Fanuc | Model: | IC697MDL750 |
|---|---|---|---|
| Series: | Series 90-70 | Rated Voltage: | 24 To 48 Volts DC |
| Output Current: | 0.5 Amps Per Point, 2 Amps Per Group | Output Voltage Range: | 20 To 60 Volts DC |
| Required Current: | 0.25 Amps | Number Of Outputs: | 32 |
| Isolation Voltage: | 1500 Volts | Warranty: | 1 Year |
| High Light: | ESCPP Positive Logic Output Module,24VDC Positive Logic Output Module,RS485 Digital I O Module |
||

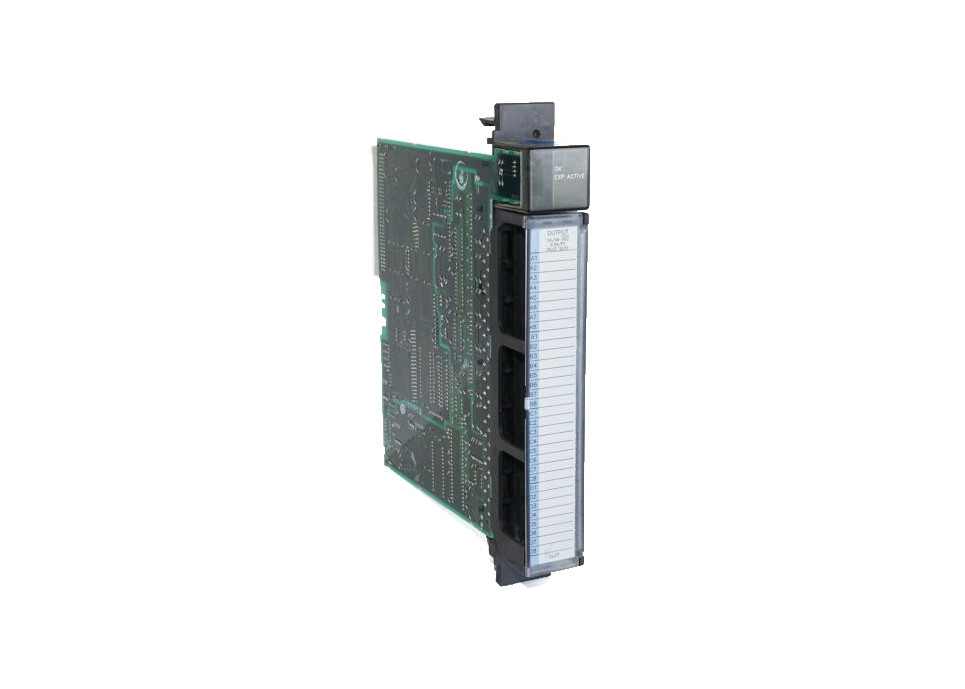

The GE Fanuc90-70 Series module IC697MDL750 is a discrete output module that is capable of converting a potentially high influx of input into the desired output. The module hosts 32 outlets that are sorted into four fused assortments of 8 points each. Each of these points is rated at 24/48 Volts and a long-term current of 0.5 amperes. Each of the groups populated by 8 points has an overall capacity of 2 amperes after making allowance for dissipative factors. Depending on its usage time and rating, each IC697MDL750 also has an ephemeral capability of directing large input currents. The output current of an IC697MDL750 is capable of powering motor starters, solenoids, indicators and other such devices.
The LED lights present on the top of the IC697MDL750 are indicative of the condition prevalent at different locations on the internal logic circuit. Additionally, the on and off status of the outlet points are also indicated by LED on the IC697MDL750.
An IC697MDL750 module is furnished with a key that is included in the packaging. This key is to be used to alter the specifications of the slot that plays host to the IC697MDL750. This customization of the slot is aimed at preventing it from being used improperly. The key is affixed during the initial instalment of the IC697MDL750 and remains in that position during any subsequent removal of the module. However, this appendage can be easily uninstalled if the need arises.
Several features of the IC697MDL750 are subject to the configuration by the user. The first such characteristic is the input and output references of the module that can be customized using a personal computer that runs a Windows or MS-DOS software. This process is conducted through an SNP port or Ethernet TCP/IP. Furthermore, the outlets of the IC697MDL750 can be manipulated by the user to either turn off of remain in their earlier state.
| Rated Voltage: | 24 or 48 volts DC |
| Number of Outputs: | 32 Outputs (4 groups of 8) |
| Output Current: | 0.5 Amps per point, 2 Amps per group |
| Current Required: | 0.25 Amps |
| Output Voltage Range: | 20 to 60 volts |
| DC Power: | Yes |
|
Rated Voltage: Outputs per Module: |
24 or 48 volts DC 32 (four groups of 8 outputs each) |
| Isolation: |
1500 volts - any output to backplane 500 volts between input groups |
| Output Voltage Range: Output Current: |
20 to 60 volts 0.5 amps maximum per point 2 amps maximum per group |
| OutputCharacteristics | |
| Inrush Current: | 10 amps maximum for 20 ms |
| Output Voltage Drop: | 1 volt (2 ohms) maximum |
| Response Time-On: | 1 ms maximum |
| Response Time-Off: | 1 ms maximum |
| Output Leakage: | 1 mA maximum |
| Current Required from 5V Bus: | 0.25 amp |
| VME | System designed to support the VME standard C.1 |
