| Brand: | GE Fanuc | Model: | IC660BBD110 |
|---|---|---|---|
| Series: | Genius I/O | Product Type: | Discrete Input Module |
| Inputs: | 16 | Outputs: | None |
| Voltage Type: | AC | Operating Temperature: | 32 To 140 Degrees Fahrenheit |
| Storage Temperature: | -40 To 212 Degrees Fahrenheit | Warranty: | 1 Year |
| High Light: | ESCPP Positive Logic Output Module,24VDC Positive Logic Output Module,RS485 Digital I O Module |
||

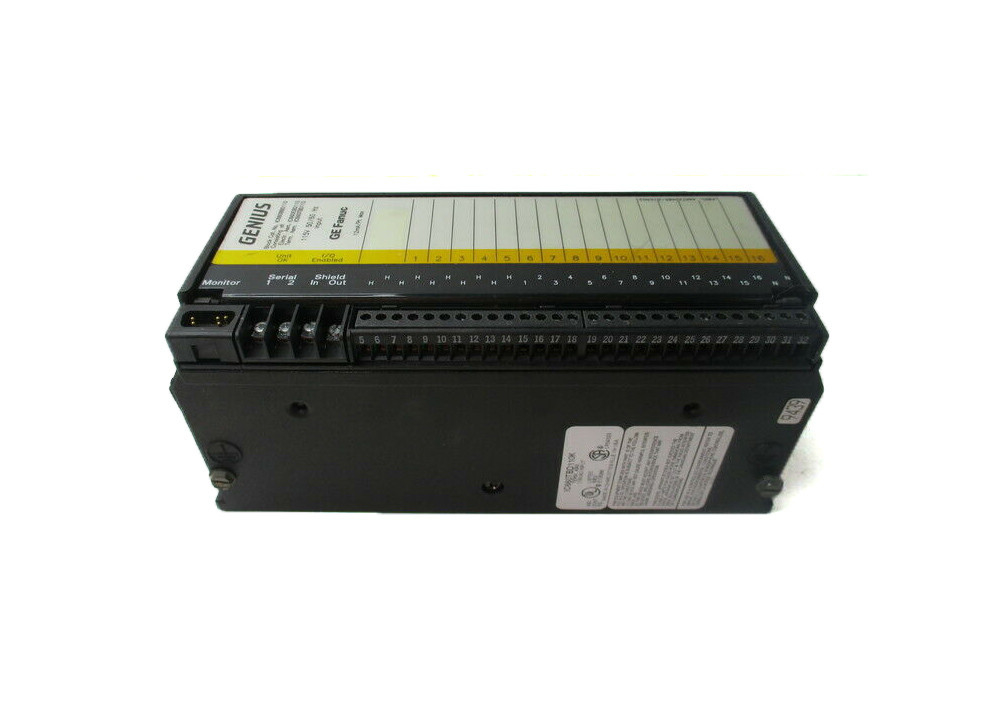

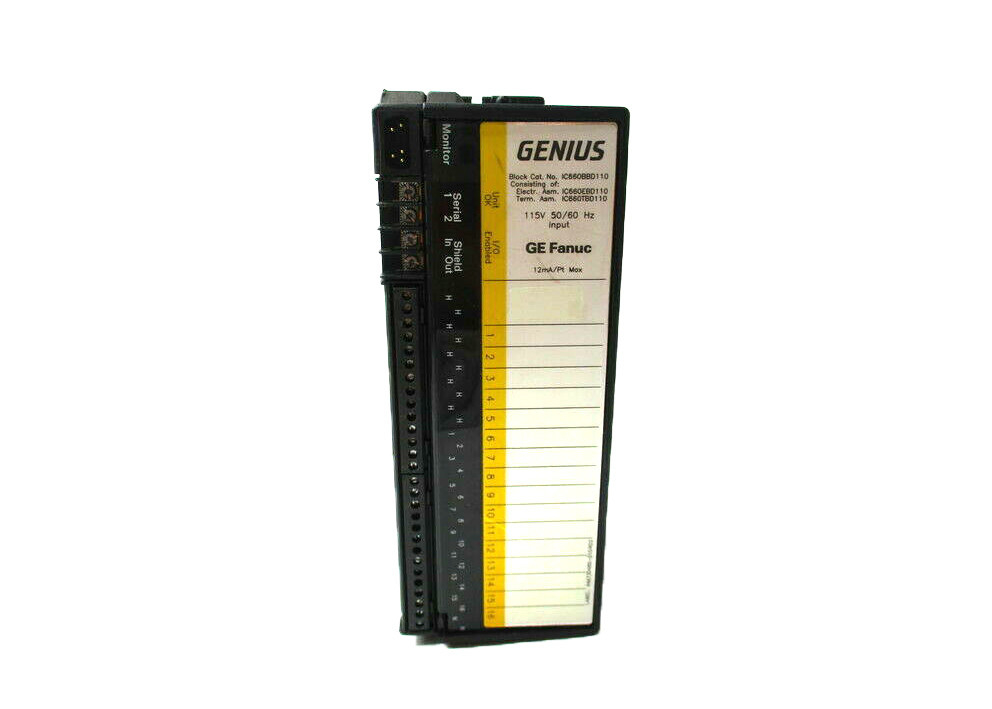

The IC660BBD110 is a low leakage, discrete input block weighting 4 lbs., manufactured by GE Fanuc. It comes with 16 points and is rated 115 Volt AC with an input and operating voltage range of 93-132 VAC and a frequency of 47-63 Hz. This block has a storage temperature range of -40 degrees Celsius to +100 degrees Celsius.
LEDs on the IC660BBD110 input block work together with diagnostic software to prompt or alert the user if a switch fails, if temperature is above threshold levels, or if a load exceeds design parameters. Input thresholds for each block can be programmed. If an LED displays ON for an input circuit, this indicates threshold voltage. In the case of output circuits, a lit LED indicates that the specific circuit is working normally as expected via commands from the CPU. The I/O LED emits steadily when the CPU is running and communicating.
Fault reporting to the CPU can be enabled or disabled on a circuit-by-circuit basis. If fault reporting is disabled, data that would have gone to both the CPU and the handheld monitor is sent only to the handheld monitor. Distribution of IC660BBD110 block’s input and output circuits can be configured as either all output, input, or a combination of the two. The user should always disconnect power first before wiring to ensure safe removal of the block.
| Rated Voltage: | 115 volt AC |
| # of Points: | 16 |
| Input Range: | 93-132 VAC |
| Load Current: | N/A |
| Operating Voltage: | 93-132 VAC |
| Points per Common: | Two groups of 8 |
| Block Type: | 16 circuits, inputs only |
| CatalogNumbers: | |
| 115VAC 16 Circuit Input Block | IC660BBD110 |
| TerminalAssemblyOnly | IC660TBD110 |
| ElectronicsAssemblyOnly | IC660EBD110 |
|
Size (height x width x depth): Weight: LEDs (I/O block): LEDs (each circuit): |
8.83” (22.44cm) x 3.50” (8.89cm) x 3.94” (10.00cm) 4 lbs. (1.8 Kg) UnitOK,I / OEnabled Reflect state of input (logic side) |
| Input to ground (or serialbus) isolation | 1500V |
| Terminal board rating (input or feedthrough current) | 5.0Amps |
| HeatDissipation: | 28 Watts maximum with 16 inputs on at full current. |
| Operatingvoltage: | 93–132 VAC |
| Frequency: | 47–63 Hz |
| Requiredpower (block only): | 80mAmaximumblockcurrent, plus 200mAmaximum input circuitcurrent |
| Power Supply Dropout Time: | 1 cycle (16.7mS at 60 Hz / 20mS at 50 Hz) |
| InputCharacteristics: | |
| Input off state, input on state | Programmable threshold (25% to 85%) |
| Inputimpedance(typical) | 11.6Kohms |
| Input open wire | Programmable threshold (25% to 85%) |
| Input shorted wire | Fixed 10%–90% thresholds |
| Input processing time (typ) | 1mS (plus selectable filter time) |
| Selectable input filter times | 10 to 100mS in 10mS increments |
| Inputdiagnostics | Open Wire, Short Circuit |
| Environmental: | |
| Operatingtemperature | 0C to +60C (32F to +140F) |
| Storagetemperature | –40C to +100C (–40F to +212F) |
| Humidity | 5% to 95% (non–condensing) |
| Vibration | 5–10 Hz 0.2” (5.08mm) displacement, 10–200 Hz at 1G |
