Ge Fanuc IC660BBR101 , Normally Open Relay Output Block Manufactured

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

Ge Fanuc IC660BBR101 , Normally Open Relay Output Block Manufactured

Large Image :  Ge Fanuc IC660BBR101 , Normally Open Relay Output Block Manufactured

Product Details:

Place of Origin: USA
Brand Name: GE
Model Number: IC660BBR101

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable

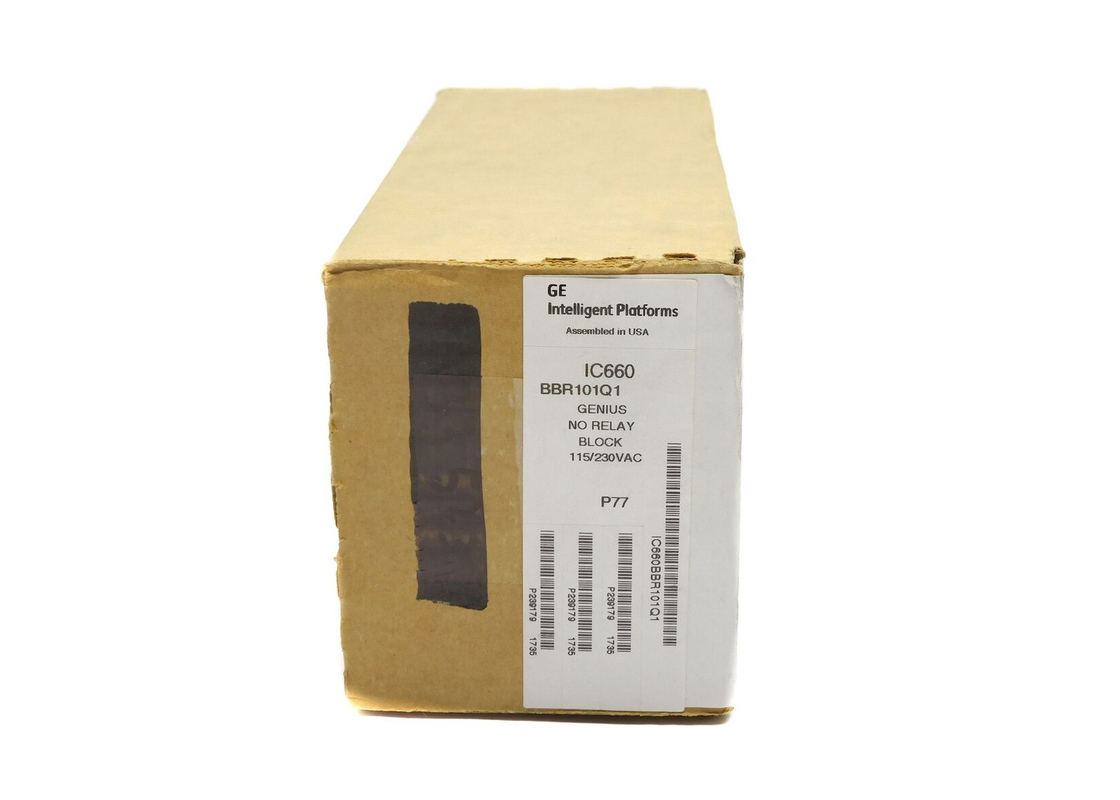

Packaging Details: New in original box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100
Detailed Product Description
Brand: GE Fanuc Model: IC660BBR101
Series: Genius I/O Product Type: Output Block
Number Of Outputs: 16 Output Voltage Type: AC Or DC
Number Of Output Groups: 4 Frequency: 47 To 63 Hertz
Operating Temperature: 32 To 140 Degrees Fahrenheit Warranty: 1 Year
High Light:

5V DC Digital I O Module

,

PLC Isolated Relay Output Module

,

PCM Solid State Microcomputer Module

Ge Fanuc IC660BBR101 , Normally Open Relay Output Block Manufactured

Product Description

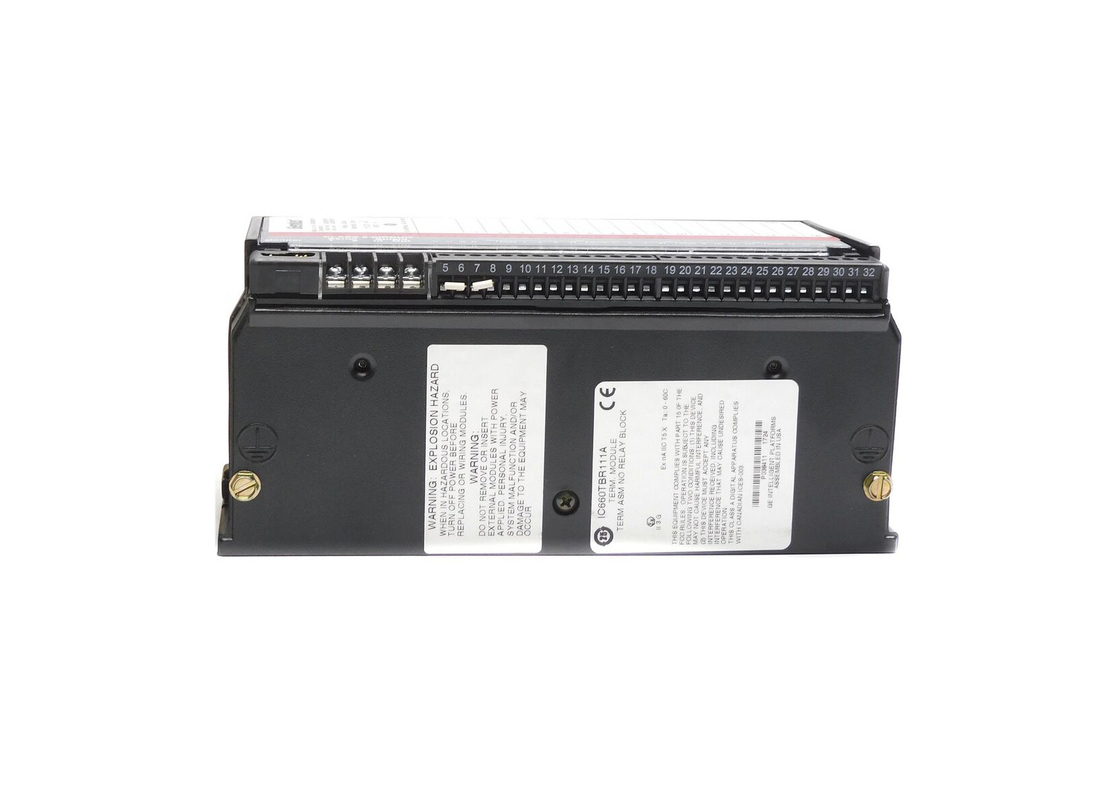

The IC660BBR101 is a Normally Open Relay Output Block manufactured by GE Fanuc. The block comes with 16 output circuits grouped into four groups, each with four outputs. Each output can be powered by either AC or DC. Because of its normally open design, the block’s contacts are separated by default until power is applied to close the gap existing between circuit components.

The relay block has a rated voltage of 115 VAC, which is the factory setting, to 230 VAC. The voltage selection is made possible by jumpers located on the block’s assembly. The block runs on a load current of 2 Amps. Output circuit group isolation is 1500VAC. IC660BBR101 is useful in a variety of low power applications such as relays, lamps, and contactors.

A handheld monitor is used for customization of the relay output. This includes setting up defaults for power-up output actions, reverting to factory settings if there is electrical communication interference, and selecting redundancy types. The block can alternatively be used as a bus switching module (BSM).

LEDs on the block display the status of the unit as well as input and output conditions. A blinking LED indicates a fault in the circuit. When the LED is OFF, the block is faulty and/or not drawing power. A simple LED ON indicates optimum performance. If a normally closed relay block is preferred, consider the IC660BBR100 relay output block.


Technical Specifications


Rated Voltage: 115 VAC or 230 VAC
# of Points: 16
Input Range: N/A
Load Current: 2 Amp
Operating Voltage: 93-132 VAC / 185-265 VAC
Points per Common: Four groups of 4





Technical Information

Specifications

Block Type: CatalogNumbers:

Output Block, Normally–Closed Relays TerminalAssemblyonly ElectronicsAssemblyonly

Output Block, Normally-Open Relays TerminalAssemblyonly

ElectronicsAssemblyonly

16 circuit relay outputs in four isolated groups of four



IC660BBR100 IC660TBR100 IC660EBR100 IC660BBR101 IC660TBR101

IC660EBR101

Size (height x width x depth):

Weight

LEDs (I/O Block)

LEDs (each circuit)

8.83” (22.44cm) x 3.50” (8.89cm) x 3.94” (10.00cm)

4 lbs. (1.8 kg)

UnitOK,I / OEnabled

Individual relay coilstate

EnvironmentalSpecifications: Operatingtemperature Storagetemperature Humidity

Vibration

0C to +60C (32F to +140F)

–40C to +100C (–40F to +212F)

5 to 95% (non–condensing)

5–10Hz 0.2” (5.08mm) displacement; 10–200Hz at 1G

Block PowerSupply: Frequency Operatingvoltage

Power requirement

Power supplydropouttime Isolation:

Alloutputs to chassis ground Between output groups

Power terminals to chassis ground Power terminals to outputs

Comms terminals to power terminals Comms terminals to outputs

HeatDissipation

47–63 Hz

(115VAC) 93VAC to 132VAC; (230VAC) 185VAC to 265VAC 87mA at 115 VAC

1 cycle

1500 VAC

1500 VAC

1700 VDC

1500 VAC

1700 VDC

1500 VAC

10.1 watts maximum with 16 outputs on

OutputCharacteristics: Maximum Output current Maximumswitchingpower Maximuminrush current Output OFF leakage current

Maximumswitchingfrequency Output turn–on delay (maximum) Output voltage range

Minimumrecommendedload



2 amps per circuit 60 Watts or 125 VA 2 amps per circuit

0.1mA

20cycles / minute(inductiveloads) 5mS

5V to 250V AC or 5V to 220V DC

10mA

Relay Type

Initial Contact Resistance

Fixed coil moving armature 100 milliohms, maximum

Typical Life: OperatingVoltage:

250VAC

250VAC

125VAC

220VDC

110VDC

30VDC

30VDC

12VDC

MaximumCurrent for Load Type * TypicalLife Resistive Lamp Solenoid (operations) 0.5A –– –– 200,000

–– 0.1A 0.1A 100,000

1.0A 0.2A 0.3A 100,000

0.3A –– –– 100,000

0.6A –– –– 100,000

2.0A –– –– 500,000

–– 0.2A 0.3A 100,000

–– 0.3A 0.5A 100,000

Effect of AdditionalCurrent onOperatingLife:

250VAC

125VAC

30VDC

12VDC

Current in Load Type TypicalLife Resistive Lamp Solenoid (operations) 0.1A –– –– 1,500,000

0.3A –– –– 1,000,000

1.0A –– –– 2,000,000

2.0A –– –– 1,000,000

* Lamp loads are defined as a X10 inrush with a power factor (PF) of 1.00; when turned OFF, they represent a PF of 1.00. Solenoids are de- fined as a X10 inrush with a PF of 0.65; when turned OFF, they repre-

sent a PF of 0.35.
