The GE Fanuc IC660EBA024 electronic assembly is made for the Genius I/O block system. This electronic assembly with its corresponding terminal assembly (the IC660TAB024) makes up the whole functioning Genius I/O current source analog block. While the terminal assembly houses the block’s configuration settings that are stored in EEPROM and provides a base for all the field wiring, the electronic assembly contains the block’s microprocessor and provides an interface between field devices and the Genius bus. The IC660EBA024 electronic assembly also sends or accepts 4 milliamps to 20 milliamps rated analog signals. The IC660EBA024 electronic assembly comes with a 24/48 Volts DC rated block with 6 individually-isolated circuit channels (4 inputs and 2 outputs). Each circuit channel can accept 4 to 20 milliamps rated analog signals that are transmitted to the controller as discrete signals, and each input on its own provides 24 Volt DC loop power.

The IC660EBA024 electronic assembly comes with a dedicated bus switching module (BSM) that shares an electric common with the 2 output circuits and is isolated from the input circuits. All of the circuit channels support independent linear scale selection that helps convert internal values to application-supported engineering units. The electronic assembly offers software configuration and advanced diagnostics like alarm detection (low and high input signals), over-range and under-range input and output signal detection, open-wire detection (on the input), output error feedback detection, and internal fault reporting. The I/O block is backwards compatible with older block versions, and it supports configuration by using the IC66HHM501E hand-held monitor. The IC660EBA024 electronic assembly has an open-type design and it requires a protective enclosure for installation.

About IC660EBA024

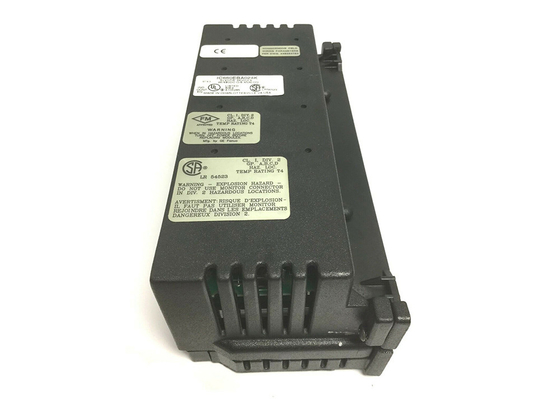

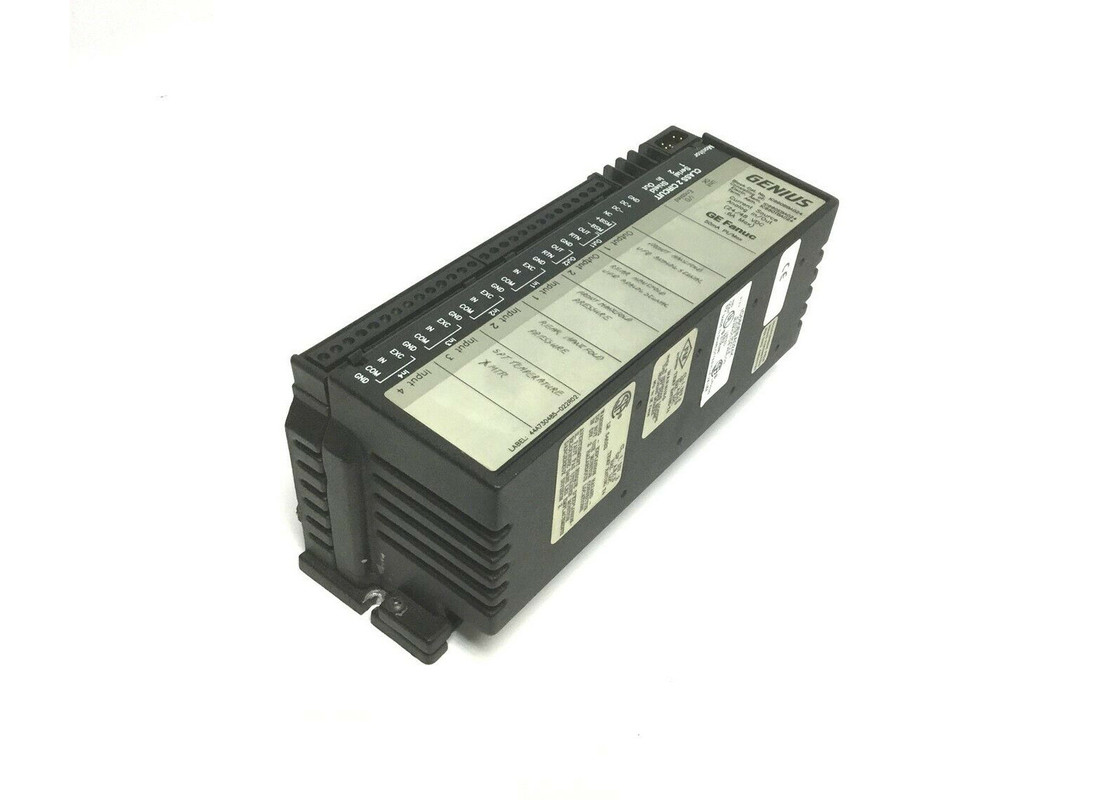

The GE Fanuc IC660EBA024 Genius I/O Block Electronics Assembly is an electronics assembly for the Genius I/O current source analog I/O blocks. The current source analog I/O block provides an interface between a controller and field devices that send or accept 4 milliAmps to 20 milliAmps rated analog signals. The IC660EBA024 Electronics Assembly has 4 isolated 4 to 20 milliAmps rated current sourcing inputs that each have a 24 Volts rated current loop power supply, and 2 outputs that control 2 of the 4 to 24 milliAmps rated current loops. The IC660EBA024 Electronics Assembly has an operating voltage range of 18 Volts DC to 56 Volts DC, with 600 milliAmps of operating current and a maximum power rating of 12.0 Watts. The IC660EBA024 Electronics Assembly inputs have up to 1500 Volts of group to group isolation, and the output channels and the Bus Switching Module (BSM) common are isolated from the inputs.

The IC660EBA024 Electronics Assembly has an input resolution of 1microamp and an accuracy of 0.1% of the full-scale reading at 25 degrees Celsius. Each input channel has a signal range of 4 to 24 milliamps and an over-range value of 0 to 25 milliamps. It has a user-selectable input conversion time (16.6 to 400 milliseconds) and an input impedance of 100 Ohms. The IC660EBA024 Electronics Assembly has 2 output channels with 6.0 microamps of resolution and 0.15% of the full-scale reading output accuracy at 25 degrees Celsius. Each output channel has a signal range of 4 to 24 milliamps and an adjustable update time of 6 to 8 milliseconds. The IC660EBA024 Electronics Assembly is software configurable and it offers advanced diagnostics features including open wire detection, low and high input alarm detection, under range/over-range detection, feedback error detection, and internal fault reporting diagnostics.
