Product Details:
Payment & Shipping Terms:
|
| Brand: | GE Fanuc | Model: | IC660EBD025 |
|---|---|---|---|
| Series: | Genius I/O | Product Type: | Electronics Assembly |
| Circuits: | 2, 32-circuit | Block To Block Isolation: | 850 V |
| Operating Voltage: | 4.9 To 5.3 V DC, 5 V DC Supply | Warranty: | 1 Year |
| Highlight: | 5V DC Digital I O Module,PLC Isolated Relay Output Module,PCM Solid State Microcomputer Module |
||

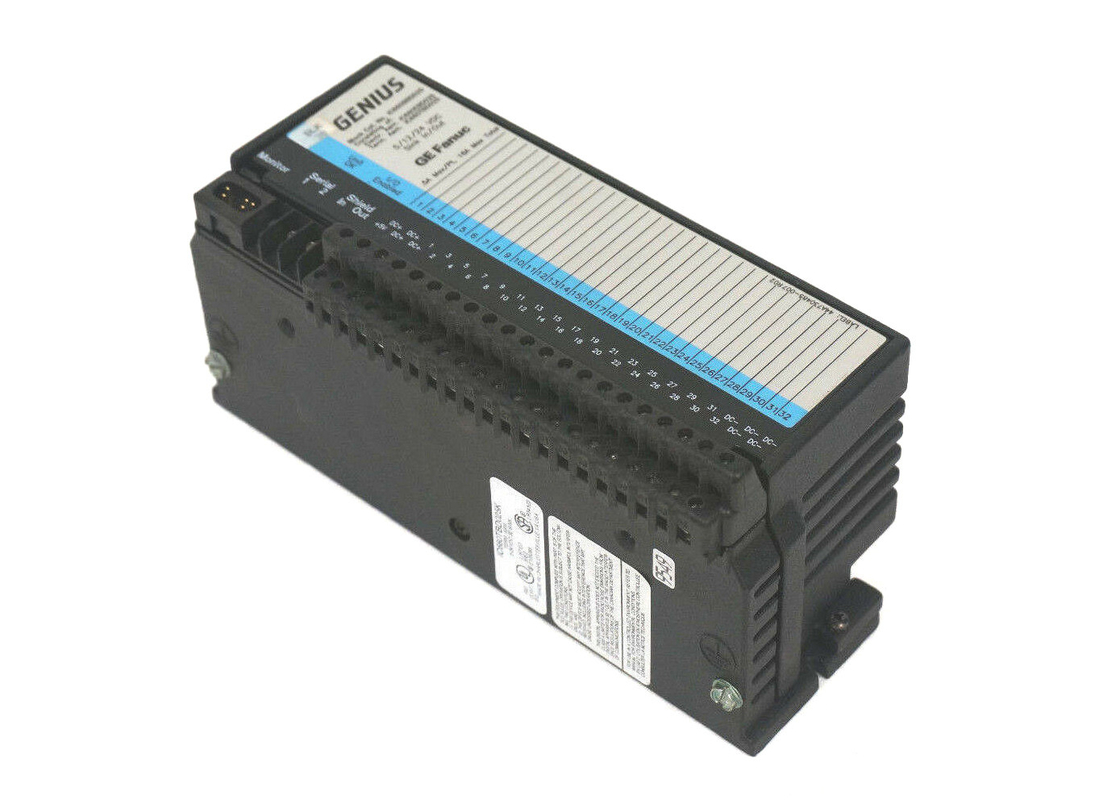

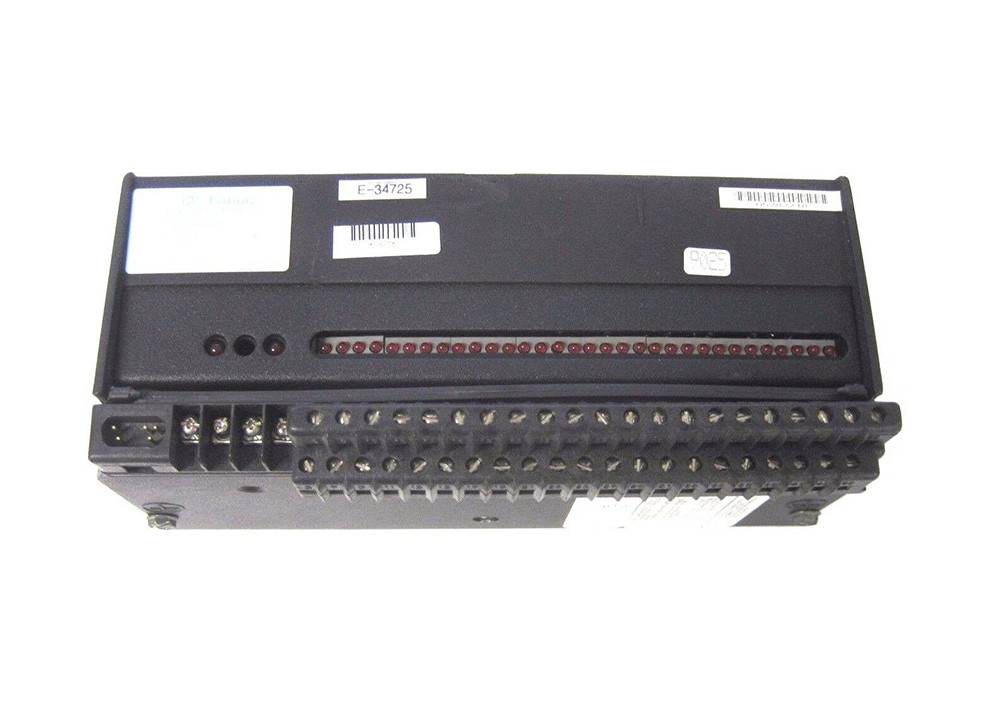

The GE Fanuc IC660EBD025 electronic assembly is an electronic assembly for a 32-circuit sink and source I/O block manufactured by GE Intelligent Platforms/GE Fanuc as a member of the Genius I/O product family. This 32-circuit sink block that the IC660EBD025 electronic assembly is part of has a rating of 5, 12, or 24 Volts DC and it is designed to receive current from the field output devices which are the 32-circuit source blocks rated at 12 to 24 Volts DC.
The Genius I/O block features a block-to-block isolation of 850 Volts with a heat dissipation rating of 11 Watts at a minimum with 8 inputs and it has 18 Watts of maximum heat dissipation with 32 outputs at a current rating of 5 Amps. The block, including the IC660EBD025 electronic assembly has a 1-source operating voltage range of 10 to 30 Volts DC with a power supply rated at 12 or 24 Volts DC or 4.9 to 5.3 Volts DC with a power supply voltage of 5 Volts for sink blocks only.
Other notable specifications of the IC660EBD025 electronic assembly and the entire DC 32-circuit source/sink blocks include a ripple of 10 percent maximum at 12/24 Volts and 1 percent maximum at 5 Volts.
These blocks also have a power source dropout time of 4 milliseconds at 12 Volts and 20 milliseconds at 24 Volts. They also have a required DC power current rating of 300 milliamps maximum and 150 milliamps typical. Generally, these blocks weigh about 4 pounds (1.8 kilograms) and their dimensions are 8.83 x 3.58 x 4.7 inches. Some of the output specifications of the IC660EBD025 electronic assembly include a steady-state output current of 0.5 Amps per circuit at maximum and a block output current of 16 Amps total.
The GE Fanuc IC660EBD025 electronics assembly is an electronics assembly manufactured by GE Fanuc as part of the Genius I/O series. This electronics assembly has two 32-circuit DC blocks, including 32 circuits rated at 12/24 Volts DC on a source block to provide current to the field output devices and 32 circuits rated at 5, 12, or 24 Volts DC on a sink block that receives current from the field output devices.
Both the IC660EBD025 electronics assembly runs at a nominal voltage rating of 12 to 24 Volts DC with the sink version that is 5 Volts TTL-compatible. The 32-circuit DC input and output blocks interface with a variety of input devices like the 2-wire and 3-wire electronic proximity switches.
The outputs can provide low-power control and indicating devices such as contactors, lamps, and relays with power. The IC660EBD025 electronics assembly's circuits can all be configured to be either outputs or inputs.
While using the GE Fanuc IC660EBD025 electronics assembly, the output circuits can be connected directly to the input circuits without using the logic state inversion or the other components.
This flexibility offers efficiency to industrial applications. Every circuit comes with built-in protection when they are used as outputs to protect the device while enabling short-time surges. It also offers protection against the shorted loads caused by the wiring errors. It also features a block LED that shows proper block operation as well as CPU communications. The fault reporting of the GE Fanuc IC660EBD025 electronics assembly can be disabled or enabled circuit by circuit.
Other configurable features of this block include the output powerup default settings, CPU redundancy type, and the bus switching module control.
| Brand | GE Fanuc |
| Series | Genius I-O |
| Part Number | IC660EBD025Â |
| Brand | GE Intelligent Platforms/GE Fanuc Automation |
| Product Line | Genius I/O |
| Product Type | Electronics Assembly |
| Circuits | 2, 32-circuit |
| Block to Block Isolation | 850 V |
| Operating Voltage | 10 to 30 V DC, 12/24 V DC supply |
| Operating Voltage | 4.9 to 5.3 V DC, 5 V DC supply |
| Maximum Output Current (Steady State) | 0.5 Amps |
| Maximum Inrush Current | 4 Amps up to 10 microseconds |
| Block Output Current | 16 Amps |
| Max. Output turn-on delay | 0.5 microseconds |
| Operating Temperature | 0 to 60 degress Celsius |
| Output Diagnostic | Switch Fault |
| Storage Temperature | -40 to 100 degrees Celsius |
| Non-Condensing Humidity | 5 to 95 percent |
