Technical Information

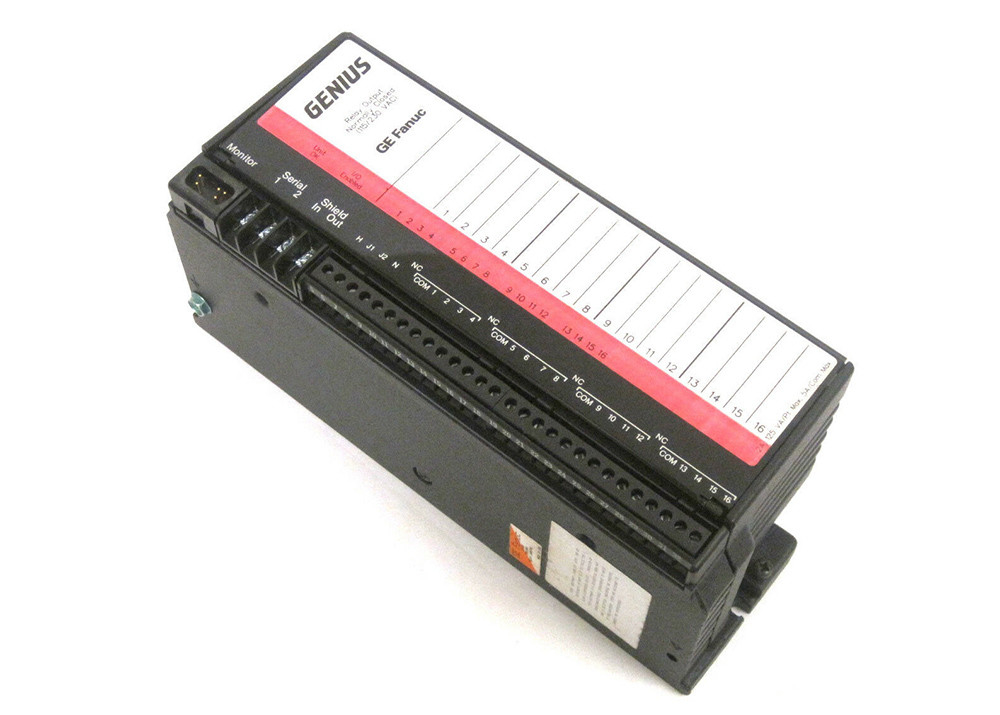

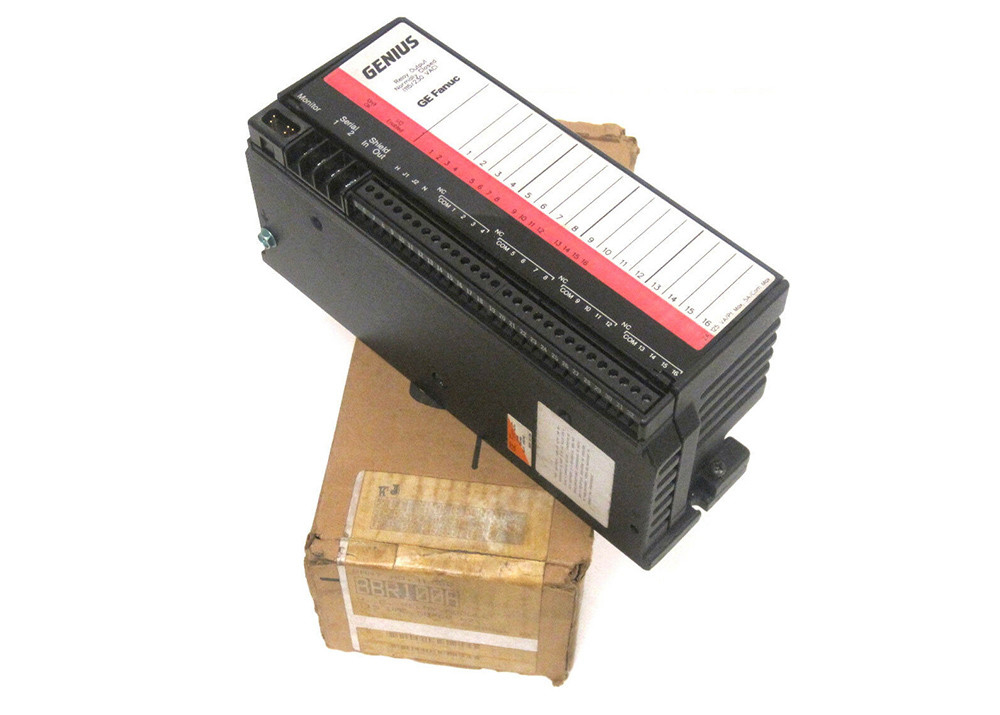

The Genius IC660EBR100 output block is a 16-circuit relay output block by GE Fanuc. This relay output block is part of the Genius I/O family, and it provides 16 circuits in 4 separate groups, each with 4 relay outputs. This block runs on a voltage rating of 115 or 230 Volts AC. The block is a normally-closed relay output block featuring normally-closed contacts. The IC660EBR100 relay output is compatible with different low-power control and indicating devices, including contactors, lamps, and relays. The output components operate on voltage ranges from 5 to 220 Volts DC or 5 to 250 Volts AC, and they are switchable at up to 60 Watts or 125 Volts-Amps. Generally, the IC660EBR100 relay output block and the other blocks in the Genius I/O series weigh about 4 pounds or 1.8 kilograms with dimensions of approximately 8.83 x 3.34 x 3.91 inches. It also features the “I/O enabled” and “Unit OK” LED indicators, and individual relay coil state LEDs on each circuit.

Other specifications of the GE Fanuc IC660EBR100 output block include a 0 to 60 degrees Celsius operating temperature range, a -40 to 100 degrees Celsius storage temperature range, and non-condensing humidity range of 5 to 95 percent. The block power properties of the IC660EBR100 relay output block include an operating frequency range of 47 to 63 Hertz, an operating voltage range of 93 to 132 Volts AC with the 115 Volts AC rated power supply, or an operating voltage range of 185 to 265 Volts AC with the 230 Volts AC rated power supply, and one cycle of power-source dropout time. With a power supply voltage of 115 Volts AC, this block requires a current rating of 87 milliamps.

About IC660EBR100

The IC660EBR100 electronics assembly block is manufactured by the GE Intelligent Platforms/GE Fanuc Automation. It belongs to the Genius I/O series and it features 16 circuit relay outputs that are placed in 4 separate groups of 4 outputs each as well as an LED on each circuit with an individual relay coil state. This electronics assembly has an approximate weight of 1.8 kilograms and it measures 8.83 x 3.50 x 3.94 inches. Its environmental specifications are an operating temperature ranging from 0 to 60 degrees Celsius, and a storage temperature range of -40 to 100 degrees Celsius at a relative humidity range of 5 to 95 percent, non-condensing. The IC660EBR100 electronics assembly block has a nominal voltage rating of 115 Volts AC and an operating voltage range of 93 to 132 volts AC or a nominal voltage rating of 230 Volts AC at an operating voltage of 185 to 265 Volts AC.

The IC660EBR100 electronics assembly block has a power current requirement of 87 milliamps at a voltage of 115 Volts AC, with a power supply dropout time of 1 cycle. It comes with a heat dissipation rating of 10.1 Watts maximum with 16 outputs on. The GE Fanuc IC660EBR100 electronics assembly block has a maximum output current of 2 Amps per circuit, and a maximum switching power of 60 Watts or 125 Volt-Amps. It also has an inrush current of 2 Amps (maximum) for every circuit, with an output off-state leakage current of 0.1 milliamps. It has an all-out switching frequency of 20 cycles in 60 seconds for the inductive loads or an output turn-on delay time of 5 microseconds. The IC660EBR100 electronics assembly block has an output voltage ranging from 5 to 250 Volts AC or 5 to 220 Volts DC, as well as a minimum recommended load of 10 milliamps. It also has a fixed coil moving armature relay type.

Technical Specifications for IC660EBR100
