Product Details:
Payment & Shipping Terms:
|
| Brand: | GE Fanuc | Model: | IC660TBR101 |
|---|---|---|---|
| Series: | Genius I/O | Product Type: | Terminal Assembly |
| Operating Temperature: | 0 To 60 Degrees Celsius | Storage Temperature: | -40 To 100 Degrees Celsius |
| Relative Humidity: | 5 To 95% | Relay Type: | Normally Open |
| Highlight: | 5V DC Digital I O Module,PLC Isolated Relay Output Module,PCM Solid State Microcomputer Module |
||

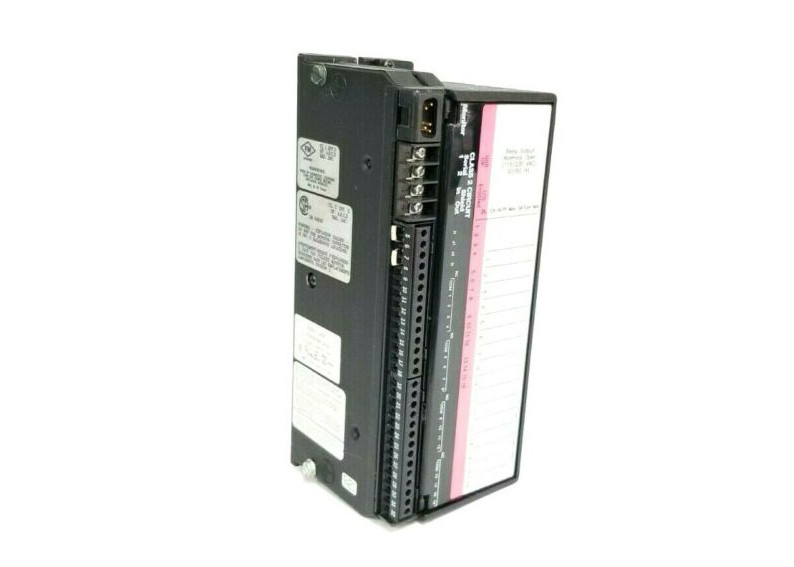

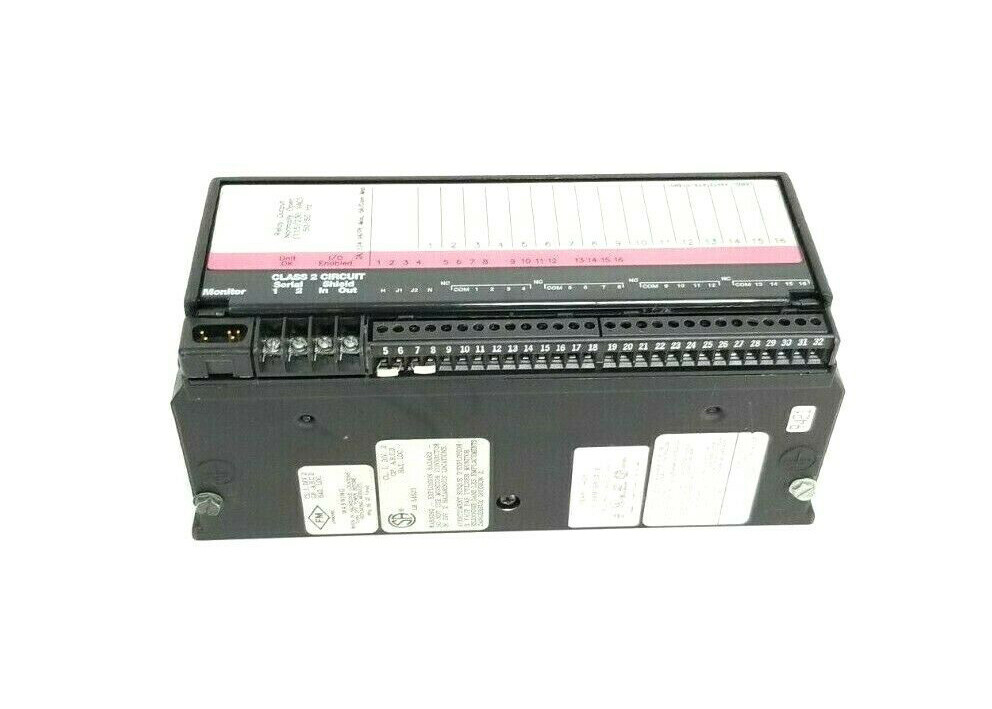

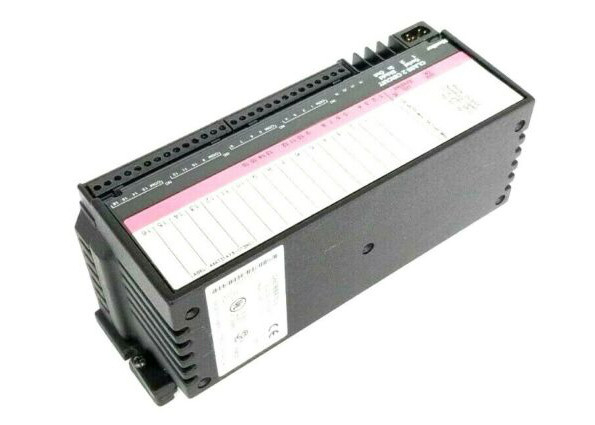

The IC660TBR101 block is a GE terminal block. This block is one of the main components of a complete I/O block. The block comes with 16 circuit relay outputs that are placed in groups of 4. All 4 of the circuits share a common input terminal. The terminal block is 8.83 inches in height, 3.50 inches in width, and 3.94 inches in depth. It is lightweight and weighs only 4 pounds. This terminal assembly is used with an open relay output block with an open architecture. The assembly can be mounted both vertically and horizontally depending on the installation area. The top section on the front side has a port to connect hand held monitor and programming terminals.
The IC660TBR101 terminal block has a current rating of 87 milliamps with a voltage of 115/230 Volts AC. For installation, the environmental temperature should be set between 0 and 60 degrees Celsius and the assembly can be stored at a temperature between -40 and 100 degrees Celsius. The IC660TBR101 terminal block has LED indicators for individual circuits that show the flow of power through them. There is also the “Unit OK” LED. The operating frequency of the terminal is 50/60 Hertz. The drop out time of the power supply is 1 cycle and it has an isolation rating of 1500 Volts AC for output to chassis. The assembly dissipates 10.1 Watts of energy as heat with all 16 outputs turned on. The IC660TBR101 terminal block should work with a minimum load of 10 milliamps with an output off-state leakage current of 0.1 Amps.
The IC660TBR101 terminal assembly is a terminal assembly for a GE Fanuc Genius I/O block with normally-open relays that has the catalog number IC660BBR101. A terminal block like the IC660TBR101 terminal assembly is 1 of the 2 primary components of Genius I/O blocks and the other component is the electronics assembly. The IC660TBR101 terminal assembly forms the block base and all of the field wiring connections are made to it. The configuration data of the Genius I/O block is stored in the terminal assembly and therefore it is not necessary to reconfigure the I/O block if the electronics assembly is replaced. The terminal assembly is mechanically and electrically keyed to accept an electronics assembly of the same type in terms of voltage, wiring configuration, and number of circuits.
The other block component, the electronics assembly, houses the I/O, active components, and communication circuits of the I/O blocks. The electronics assembly can be replaced without disturbing the field wiring. The I/O block for which the IC660TBR101 terminal assembly is designed, i.e. the ICC660BBR101 I/O block, is a 16-circuit relay output block. The outputs are separated into 4 isolated groups of 4 circuits each. The I/O block weighs 4 pounds and it measures approximately 224 x 35 x 39 millimeters. The recommended range of the operating temperature for the block is from 0 to 60 degrees Celsius. For transportation and storage, the recommended range for the ambient temperature is from -40 to 100 degrees Celsius. The current requirement of the I/O block is 87 milliamps at 115 Volts AC. The AC supply voltage ranges are 93 to 132 Volts AC and 185 to 265 Volts AC.
| Brand | GE Fanuc |
| Series | Genius I-O |
| Part number | IC660TBR101 |
| Product type | Terminal assembly |
| Compatibility | IC660BBR101 |
| Operating temperature | 0 to 60 degrees Celsius |
| Storage temperature | -40 to 100 degrees Celsius |
| Relative humidity | 5 to 95% |
| Relay type | Normally open |
| Field Wiring Connections | Supported |
