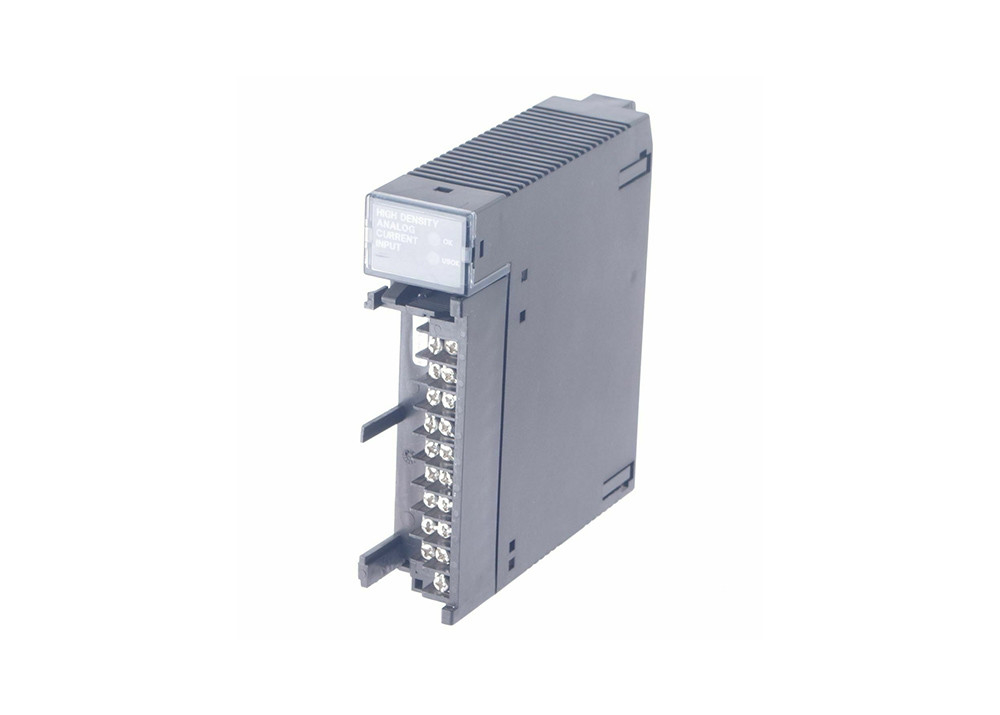

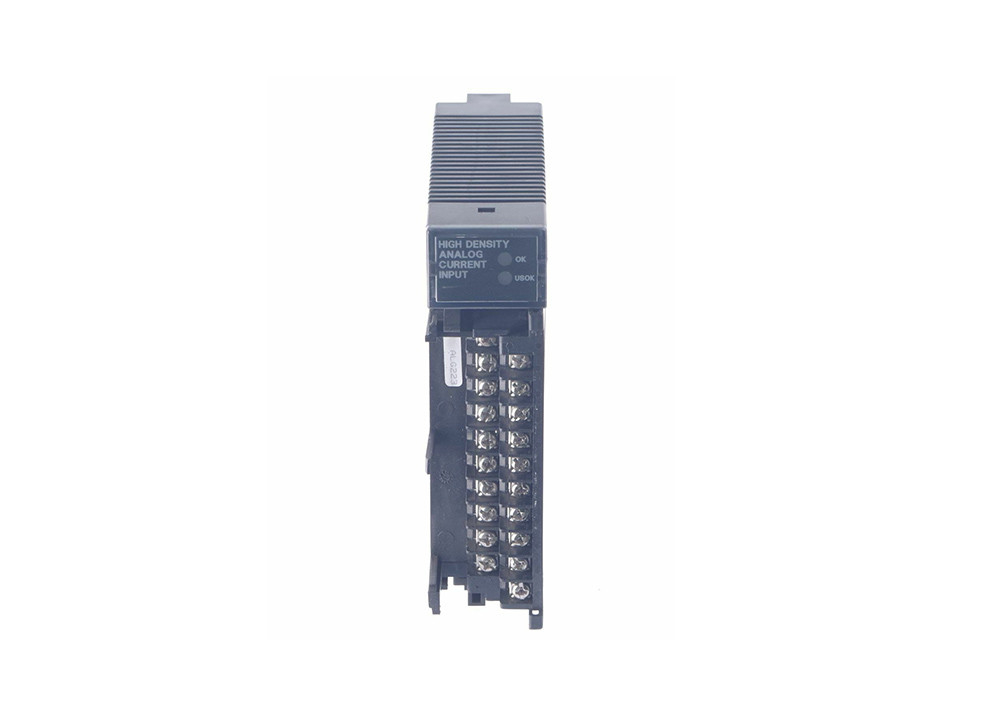

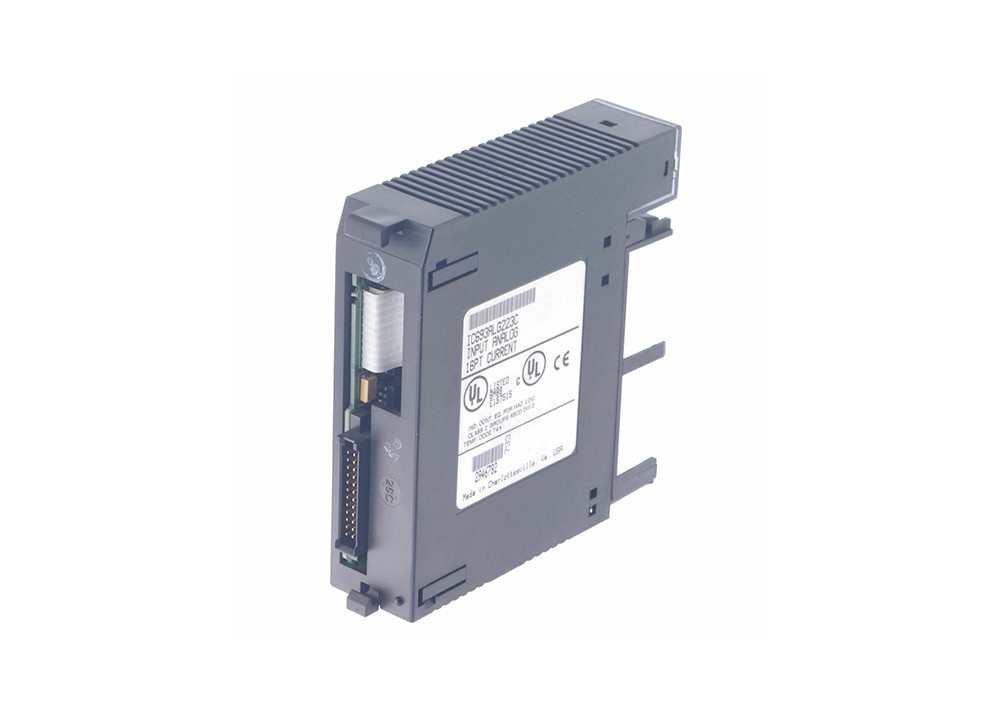

Ge Fanuc IC693ALG223C ， Series 90-30 Programmable Logic Controller

The GE Fanuc Series 90-30 Programmable Logic Controller (PLC) module with catalog number IC693ALG223 is a Sixteen (16) channels, single ended, analog input module that is used to interface field devices and instrument that provide analog signals as representation to measurement of process variable. Specifically, each channel of the IC693ALG223 is configurable of receiving 0-20 mA, 4-20 mA and 4-20 mA enhanced signals. Some of the devices that are capable of providing these signals are Transmitters, Variable Frequency Drive’s (VFD) speed feedback, data loggers, panel meters and other devices.

The IC693ALG223 is a single slot module that is installed to any slot of a Series 90-30 5-slot or 10-slot baseplate. Depending on the controller installed, the number of allowed instances of the IC693ALG223 varies. For Model 311, Model 313, and Model 323 system, up to Four (4) module instances is compatible. For Model 331 system, Eight (8) modules, Twelve (12) with Model 340 and 341 system and 51 in Model 351 and 352 systems.

The IC693ALG223 has 12-bit resolution with update rate of 13 msec for all 16 channels, absolute accuracy of ± 0.25% of full scale @ 25 Deg. Celsius (77 Deg. Fahrenheit): ± 0.5% of full scale over specified operating temperature range and linearity of < 1 LSB from 4 to 20 mA for 4 to 20 mA range and < 1 LSB from 100 µA to 20 mA for 0 to 20 mA and 4 to 20 mA Enhanced ranges. This module is designed with 1500 volts isolation capability between field side and logic side.

The IC693ALG223 16-Channel Analog Input Module comes with 200 Hertz of input filter response and 250 ohms of input impedance. The maximum number of analog current input modules that may be installed in the system is 4 with CPUs 311, 313, and 323, 8 with CPU 331 and 12 with CPUs 340 and 341. It has high levels of resolution and accuracy to deal with very sensitive analog signals. It can receive analog inputs from a variety of sensors such as level sensors, flow sensors, and temperature sensors. Each channels’ accuracy are 4 microamps of resolution in the 4 to 20 milliamps current range, 5 microamps of resolution in the 0 to 20 milliamps current range, and 5 microamps of resolution in the 4 to 20 enhanced milliamps current range. It uses an external power supply with a voltage range of 20 to 30 Volts DC and 10% supply voltage ripple. This module is designed to support a wide range of industrial signals
