AB 1746-NO8V ， SLC 500 Analog Output Module ， Single-ended

Name: AB 1746-NO8V ， SLC 500 Analog Output Module ， Single-ended
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: 1746-NO8V
Price: 100000.00 USD
Availability: InStock

Product Details:

Place of Origin:	USA
Brand Name:	AB
Model Number:	1746-NO8V

Detail Information

Place of Origin:

USA

Brand Name:

Model Number:

1746-NO8V

Brand:

Model:

1746-NO8V

Series:

SLC 500

Outputs:

Output Wiring:

Single-ended

Output Voltages:

-10 To +10VDC; -10.25 To +10.25VDC; 0 To 10VDC; 0 To 5VDC And 1 To 5VDC.

Module Type:

Analog Output Module

Compatible Chassis:

Any 1746 Chassis Slot Except Slot 0

Highlight:

High Light

Highlight:

240VAC Isolated Relay Output Module

PLCs Solid State Microcomputer Module

ESCPP Positive Logic Output Module

Trading Information

Minimum Order Quantity:

Price:

negotiable

Packaging Details:

New in original boxRockwell Automation

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

100

Product Description

AB 1746-NO8V , SLC 500 Analog Output Module , Single-Ended

Technical Specifications for 1746-NO8V

Manufacturer	Rockwell Automation
Resolution	16-bit 320 µV/count
Module Type	Analog output module
Series	SLC 500
Part Number/Catalog No.	1746-NO8V
Brand	AB
Output wiring	Single-ended
Output voltages	-10 to +10VDC; -10.25 to +10.25VDC; 0 to 10VDC; 0 to 5VDC and 1 to 5VDC.
Output coding	-32,768 to +32,767
Compatible chassis	Any 1746 chassis slot except slot 0
Backplane current consumption	120 mA at 5V dc 160 mA at 24V dc (J4 jumper set to RACK) 0 mA at 24V dc (J4 jumper set to EXT)

Backplane Power consumption	5.6W
SLC Data Formats	Scaled engineering units Scaled for PID Proportional counts 1746-NO4 format User-defined scale
Optional Output Data Parameters	User defined scale limits Output clamping limit Output alarm limits Ramp rate/limit Preset fault value Output behavior under fault condition (reset, hold, preset) Alarms latch Reset latched alarms
Outputs	8
Backplane Current (5 Volts)	120 milliamps
Backplane Current (24 Volts)	160 milliamps
Update Time	540 microseconds/8 channel
Step Response	1 millisecond
Step Response	60 milliseconds in, 2.5 milliseconds out
UPC	10781180054560
UPC	10781180054577

About 1746-NO8V

The AB 1746-NO8V is an analog output module that is compatible for use with SLC 500 controllers. This module provides voltage output signal ranging from ±10.25VDC. This module is ideally used to control modulating devices such as valves, dampers, Variable Frequency Drives (VFD), Louvers, and other devices that operate with analog signals.

The 1746-NO8V has Eight (8) output channels with resolution of 16-bits or 320 µV/count. It has output coding of 32,768 to +32,767 and comes with a built-in R-2R Ladder Network as the Digital to Analog (DAC) conversion method. It has an output step response of 1 ms or 0 to 95% of full scale with individual channel update time of 5 ms to update all 8 channels for class 1 and 10 ms to update all 8 channels for class 2.

The 1746-NO8V has an overall accuracy of 0.1% of full scale at 25°C and 0.2% of full scale at 60°C with maximum overall accuracy drift of ±33 ppm/°C of full scale. It has a load range of 1K ohm and greater and with load current of 10 mA (maximum).

Specific nominal output voltages of the 1746-NO8V are -10 to +10VDC; -10.25 to +10.25VDC; 0 to 10VDC; 0 to 5VDC and 1 to 5VDC. Converted analog data, configurable for each channel are Scaled engineering units, Scaled for PID, Proportional counts, 1746-NO4 format and User-defined scale while Optional Output Data Parameters are User defined scale limits, Output clamping limit, Output alarm limits, Ramp rate/limit, Preset fault value, Output behavior under fault condition (reset, hold, preset), Alarms latch and Reset latched alarms.

The 1746-NO8V has an overall backplane power output of 5.6W and a user-optional DC power source with a power rating of 24V DC. It has an output voltage range within ±10.25V DC and uses an R-2R Ladder Digital-to-Analog Converter with a Channel resolution of 16-bits (320µV/count). The 1746-NO8V has an output step response time of 1ms and it uses approximately 5ms to update signals on all 8 channels. The load range on the 1746-NO8V’s outputs can go above 1KÎ© and the maximum load current on the outputs is 10mA. The 1746-NO8V has an output impedance less than 1Î© and a 2.5% (±10.25V) over-range capability. It offers an overall output accuracy of 0.2% with a Â±33 ppm/°C drift accuracy and a gain error of 0.15% with an OFFSET drift error of ±0.53 LSB/°C. The 1746-NO8V offers circuit isolation between the field wiring and the backplane to protect the chassis and the processor is tested at 500V DC and uses LED lights to indicate the module and channel status. It has a 0-60°C operational temperature range at a 5-95% non-condensing relative humidity and it is CUL and CE-certified for use in Class I, Division 2 Hazardous Locations. The 1746-NO8V has an operational shock rating of 30G and a vibration of 5G at 10-500Hz.

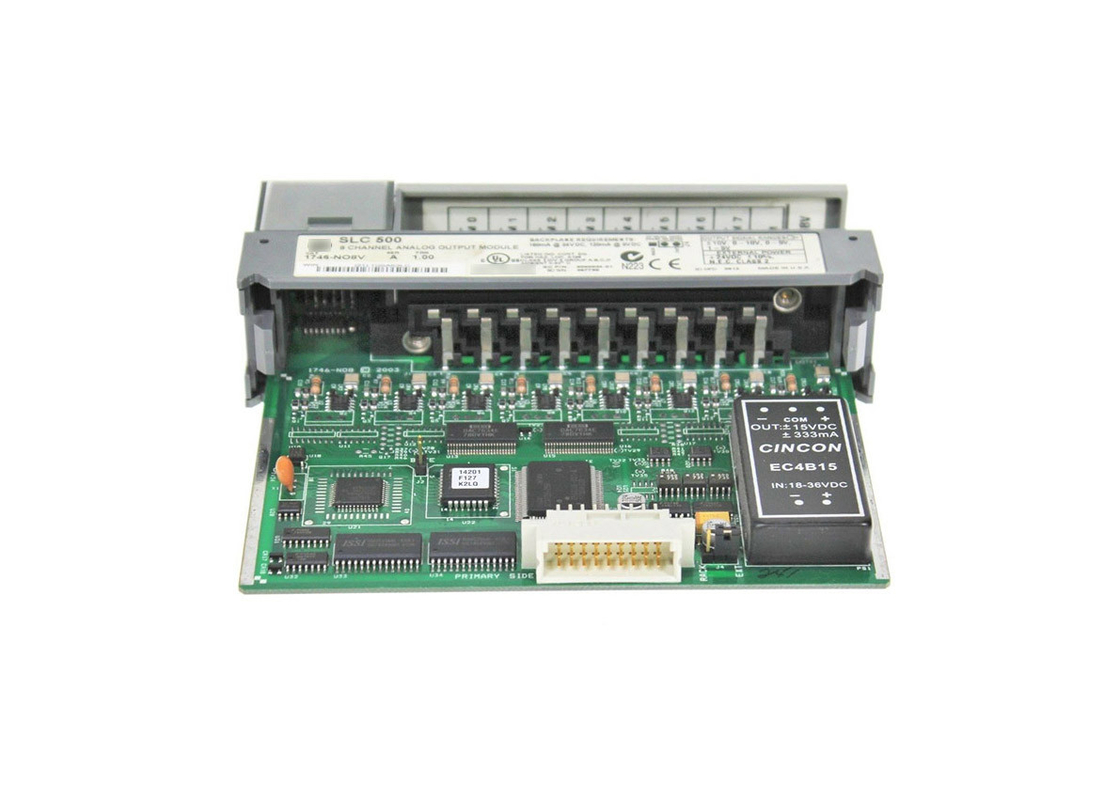

AB 1746-NO8V ， SLC 500 Analog Output Module ， Single-ended 0

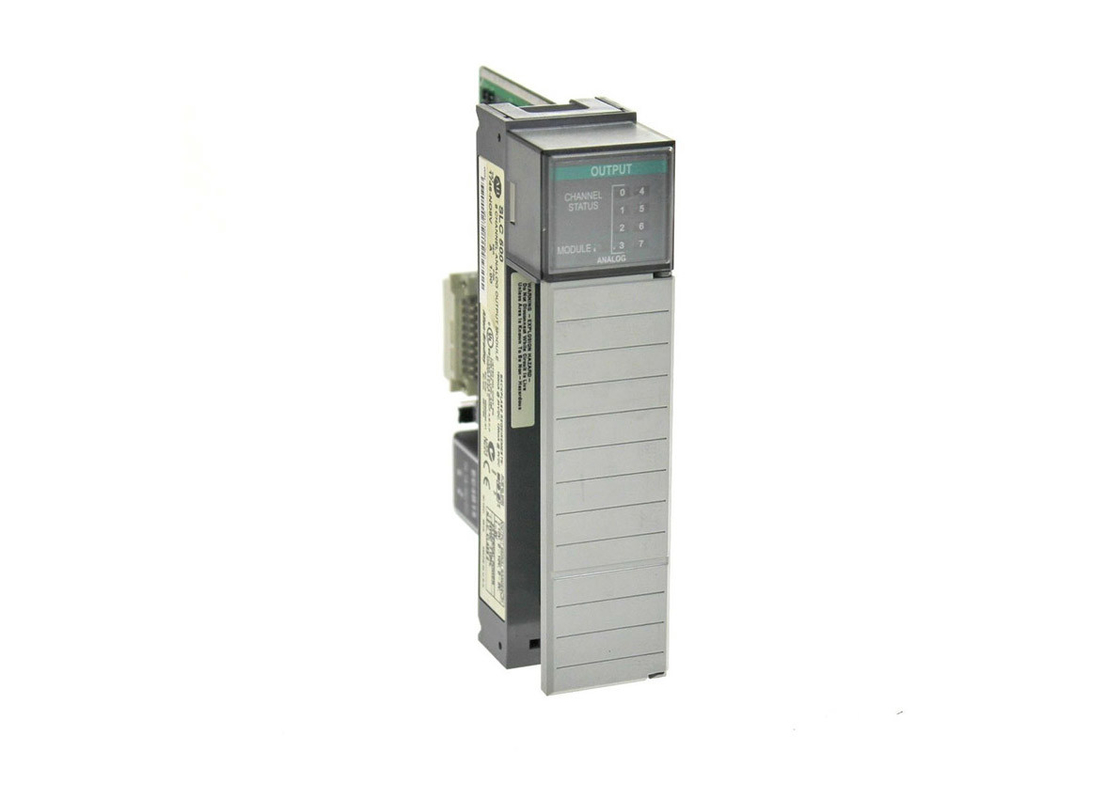

AB 1746-NO8V ， SLC 500 Analog Output Module ， Single-ended 1

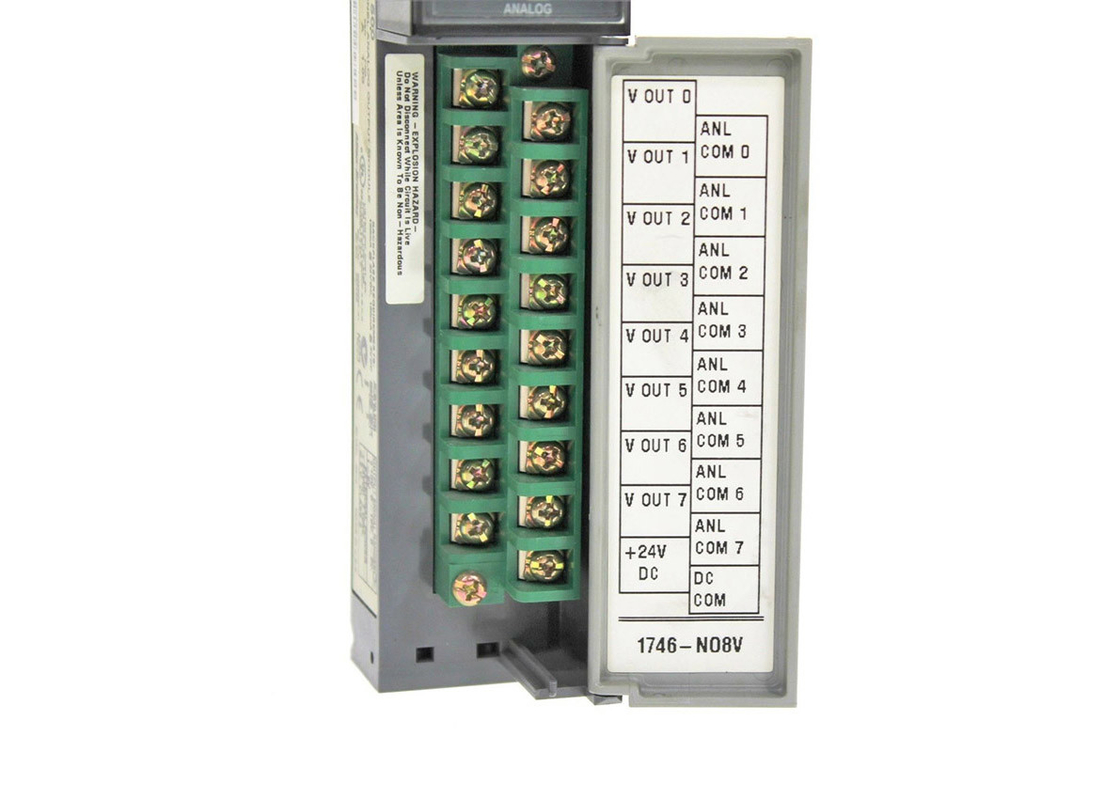

AB 1746-NO8V ， SLC 500 Analog Output Module ， Single-ended 2
