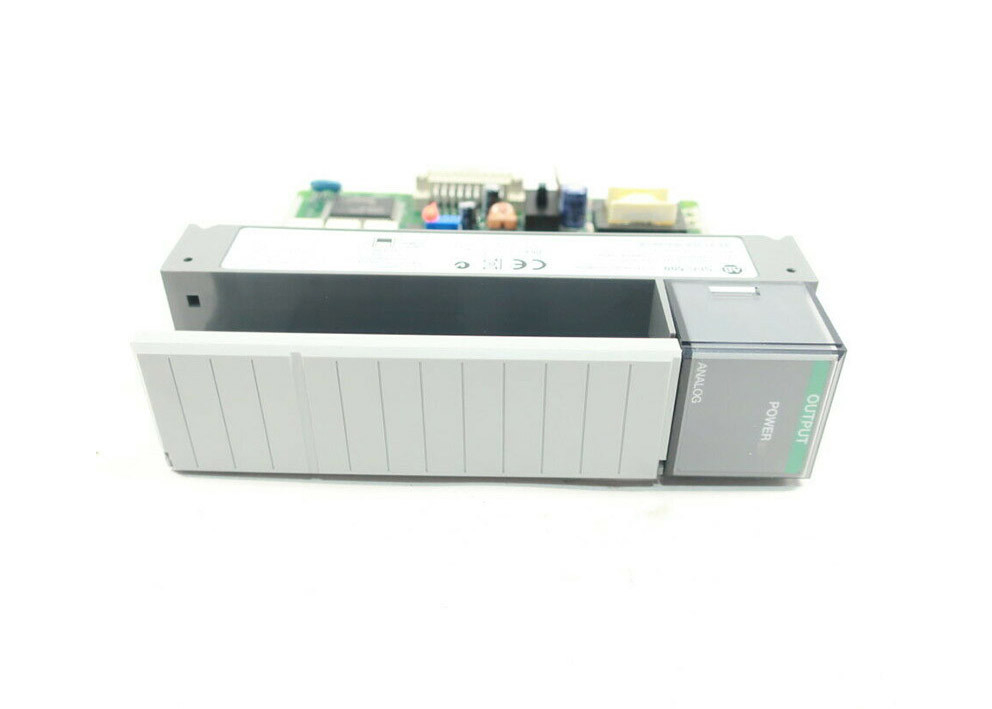

AB 1746-NO4V ， SLC 500 Analog Output Module ， 10 VDC

Name: AB 1746-NO4V ， SLC 500 Analog Output Module ， 10 VDC
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: 1746-NO4V
Price: 100000.00 USD
Availability: InStock

Product Details:

Place of Origin:	USA
Brand Name:	AB
Model Number:	1746-NO4V

Detail Information

Place of Origin:

USA

Brand Name:

Model Number:

1746-NO4V

Brand:

Model:

1746-NO4V

Series:

SLC 500

Module Type:

Analog Output Module

Backplane Current (5 Volts):

55 Milliamps

Backplane Current (24 Volts):

145 Milliamps

Output Voltage:

-10 To +10VDC

Full Scale Output:

10 VDC

Highlight:

High Light

Highlight:

240VAC Isolated Relay Output Module

PLCs Solid State Microcomputer Module

ESCPP Positive Logic Output Module

Trading Information

Minimum Order Quantity:

Price:

negotiable

Packaging Details:

New in original box

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

100

Product Description

AB 1746-NO4V , SLC 500 Analog Output Module , 10 VDC

Technical Specifications for 1746-NO4V

Manufacturer	Rockwell Automation
Brand	AB
Part Number/Catalog No.	1746-NO4V
Series	SLC 500
Module Type	Analog Output Module
Backplane Current (5 Volts)	55 milliamps
Outputs	Four (4)
Backplane Current (24 Volts)	145 milliamps
Output Voltage	-10 to +10VDC
Full Scale Output	10 VDC
Conversion Method	R-2R Ladder

Voltage Output Coding	-32,768 to +32,764
Update Time	512 microseconds
Backplane Current	(5 Volts) 55 milliamps; (24 Volts DC) 145 milliamps
Resolution	14 bits
Resolution	14 bits
Step Response	2.5 milliseconds
Step Response	2.5 milliseconds
Indicators	LEDs
UPC	10662073735929
Ambient Operating Temperature	0 to 60 degrees Celsius

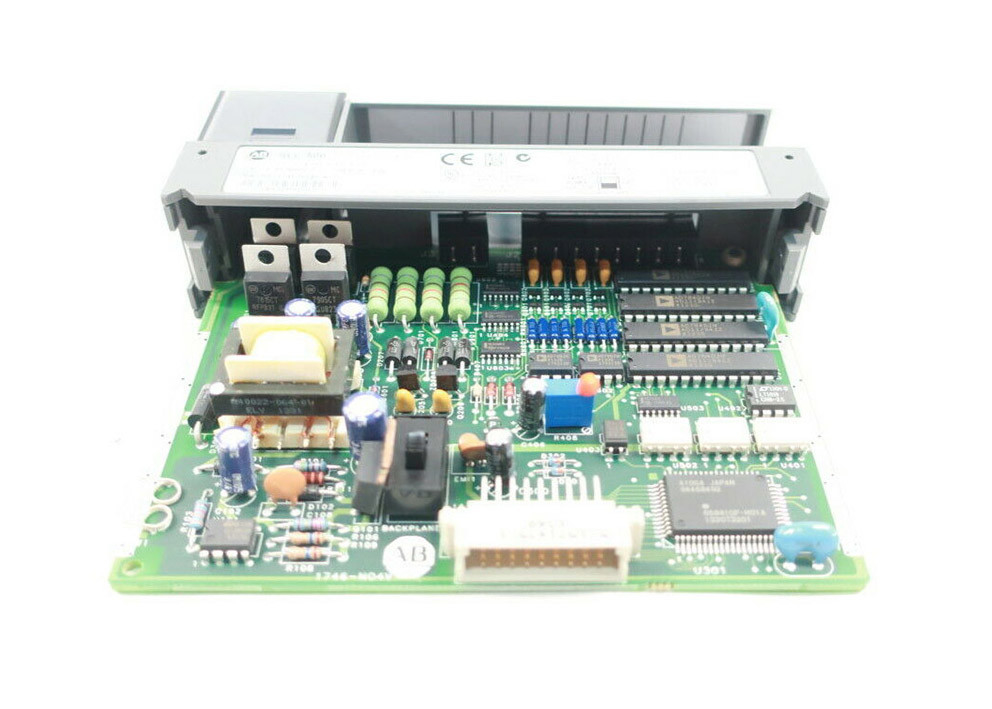

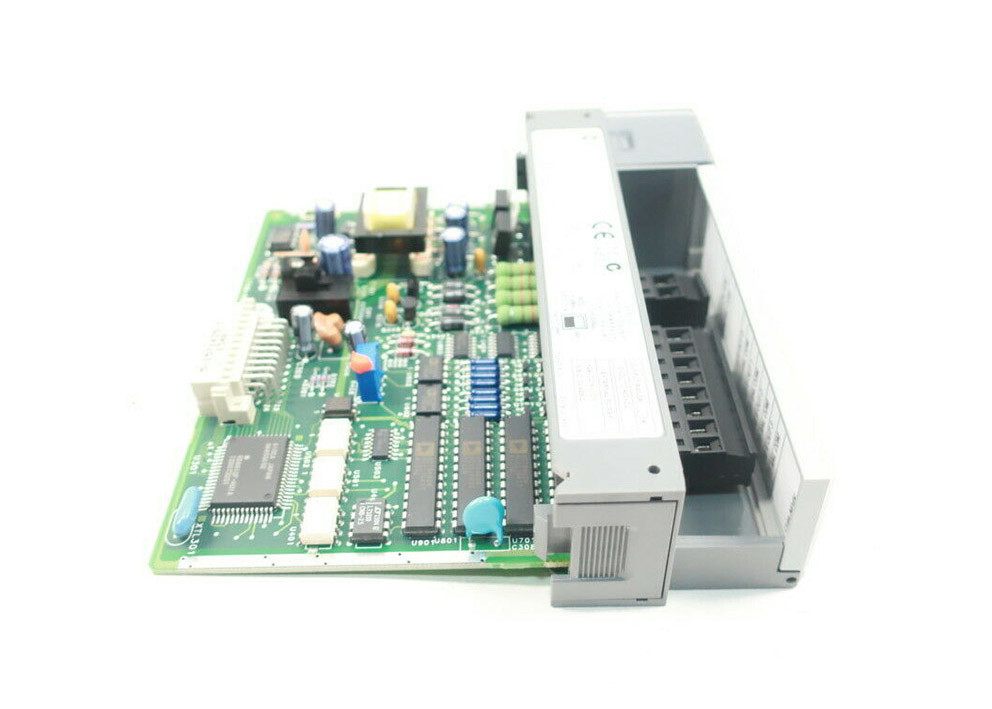

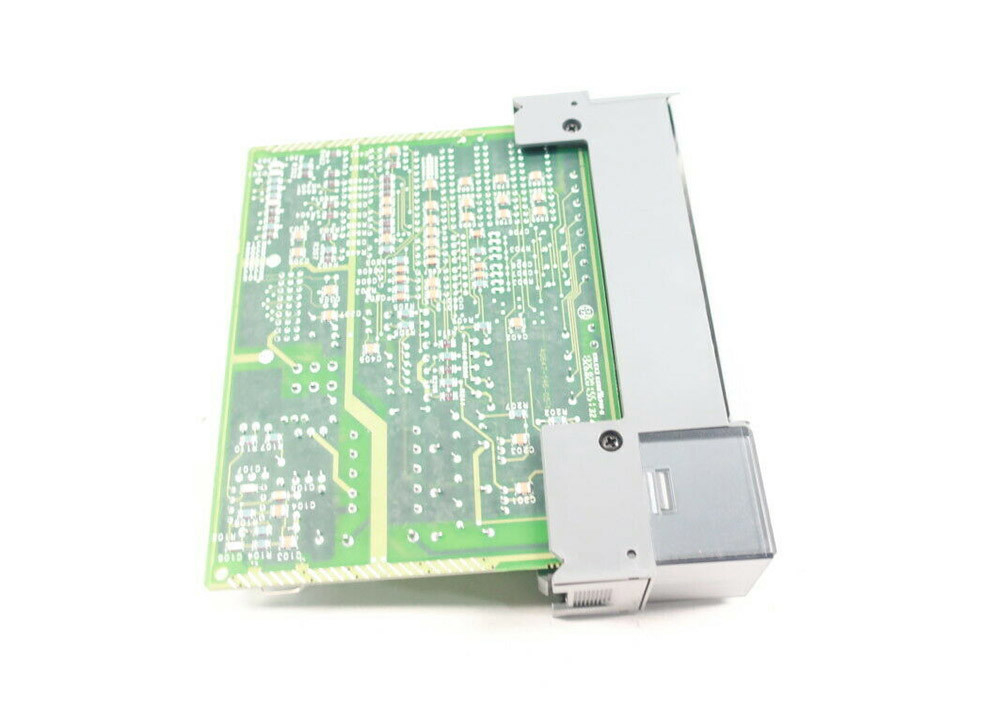

About 1746-NO4V

The AB 1746-NO4V is a Four (4) point, non-isolated SLC 500 standard analog voltage output module. It has an output range of -10 to
10 Volts -1 LSB DC with backplane current ratings of 55 mA at 5 Volts and 145 mA at 24 Volts. AN external 24 VDC power supply may use with
this module by activating SW1 external. If the backplane power is sufficient, the backplane power may be used as the power source of this
module instead of an external supply. The 1746-NO4V has a field wiring to backplane isolation of 500 Volts DC, and a maximum load reactance
of 1 µF and maximum load current of 10 mA.

This module is a factory calibrated module and uses a 16-bit two’s complement binary communication format. The 1746-NO4V is enclosed in

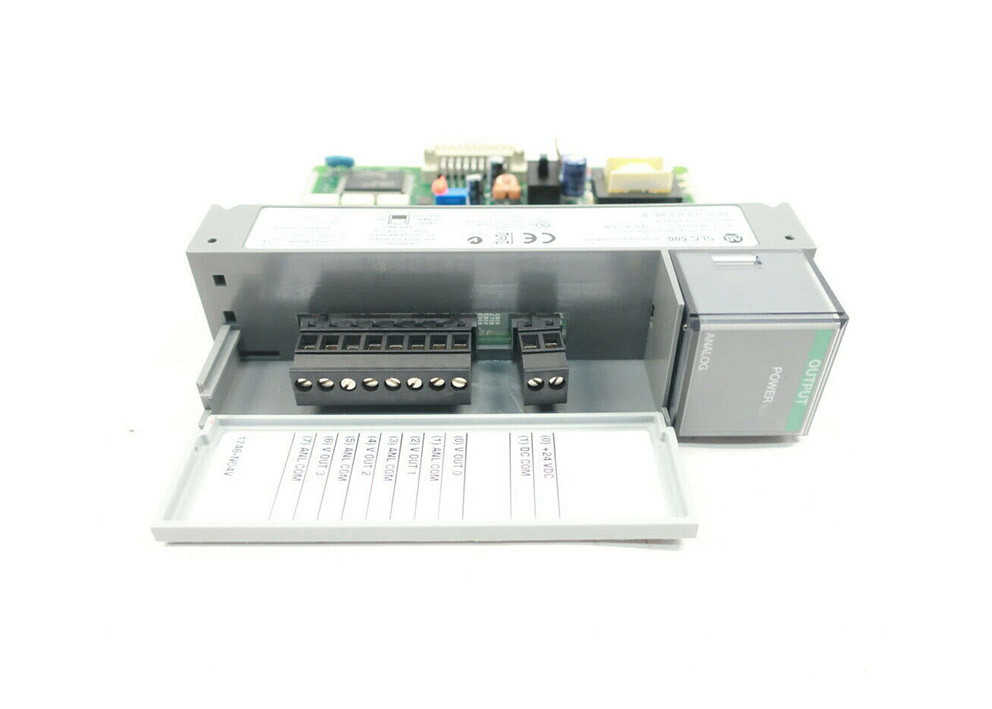

an open-type enclosure and mounts on a 1746 chassis. It is also equipped with an LED status indicator and a removable terminal block (RTB).
Recommended wire size for this module is #14 AWG maximum wire size. Its update time is 512 µs for all the channels that are in parallel, and
it has a step response time of 2.5 ms at 95%. The 1746-NO4V’s operating temperature ranges from 32 to 140 degrees Fahrenheit, its
non-operating temperature ranges from -40 to 185 degrees Fahrenheit and its non-condensing relative humidity for operation and storage is 5
to 95%. The 1746-NO4V’s has a maximum overall accuracy drift of +/- 54 ppm/degrees Celsius full scale.

The AB 1746-NO4V module is a Programmable Logic Controller (PLC) analog output module that belongs to the SLC 500 product
platform. The output channels of this module produce voltage signal ranging from -10 to +10VDC signals.

When installing this module to the chassis, certain guides may be used for determining the ideal slot or chassis assignment of the module.
Two (2) general factors are considered such as ambient Temperature and Electrical noise. For electrical noise, the module is recommended to
be installed away from AC or high levels of DC voltage. Additionally, it is best to install this module away from the system power supply. For
ambient temperature consideration, the chassis that is nearest to the enclosure bottom is the recommended installation chassis.

This module does not support removal under power. Never remove this module when power is applied as electrical arcs may happen causing
damage to the electronic circuitry. The module may also be installed with the Removable Terminal Block (RTB) installed in its front panel. Use
14 AWG wire and limit a maximum of Two (2) wires terminated in the same terminal. This is to provide room for troubleshooting as well as be
able to close the module cover.

Analog outputs may be assigned to a PID controller output, a result of Mathematical operation or a manual value entered from a Human Machine
Interface (HMI), or Supervisory Control and Data Acquisition (SCADA). These are control commands sources. It may also be used to
re-transmit signals for reference of other devices to implement their monitoring, recording and conversion applications. For stand alone
controllers that require control coordination such as load sharing function, analog outputs may be used to send the reference signal of all
involved controllers and devices.

AB 1746-NO4V ， SLC 500 Analog Output Module ， 10 VDC 0

AB 1746-NO4V ， SLC 500 Analog Output Module ， 10 VDC 1
