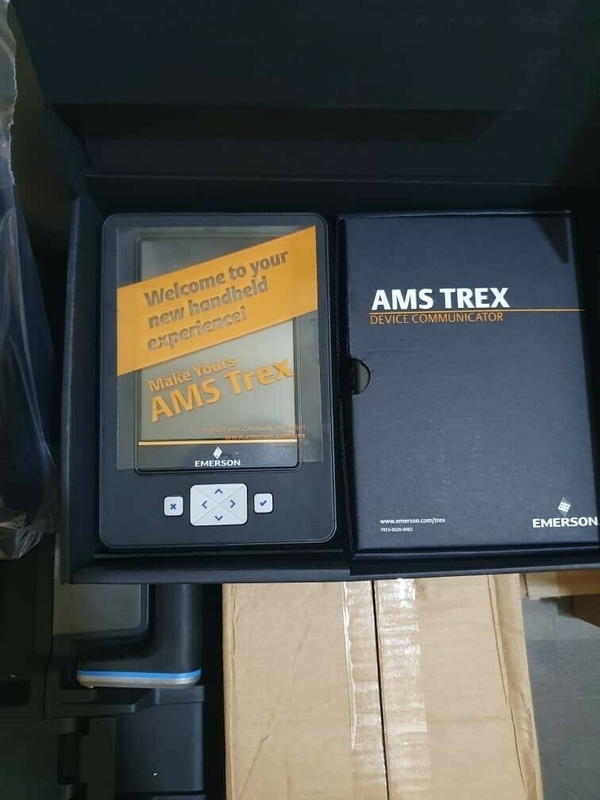

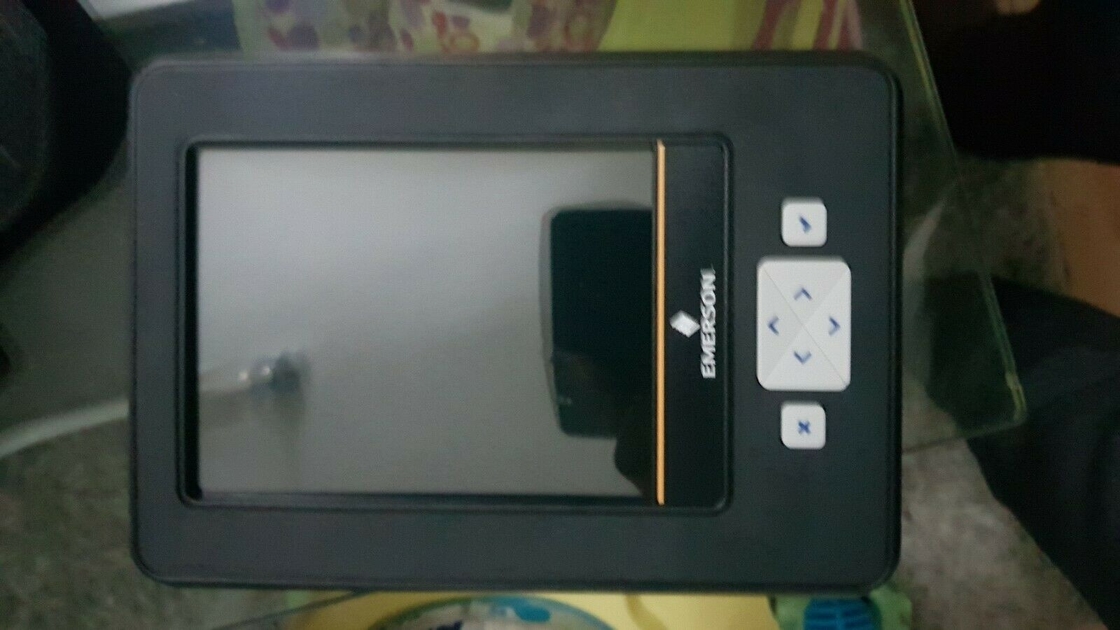

TREXLHPKLWS3S EMERSON Trex Device Communicator 8+ Hour Battery

TREXLHPKLWS3S EMERSON Trex Device Communicator 8+ Hour Battery

Quick Details:

• TREXLHPKLWS3S
• TREX DEVICE COMMUNICATOR
• 8+ HOUR BATTERY
• OPERATING TEMPERATURE-20 TO 55C
• RAM512 MB DDR3 SDRAM
• MEMORY INTERNAL FLASH2 GB NAND AND 32 GB EXTENDED FLASH
• MICROPROCESSOR800 MHZ ARM CORTEX A8
•

Product Features:

• Comes with HART application
• Includes the Device Communicator Plus module
• Product Certifications: ATEX, CSA (US/Canada), and IECEx Intrinsically Safe (with FISCO included where applicable)
• Wireless functionality
• Comes with 3 years of Standard Support

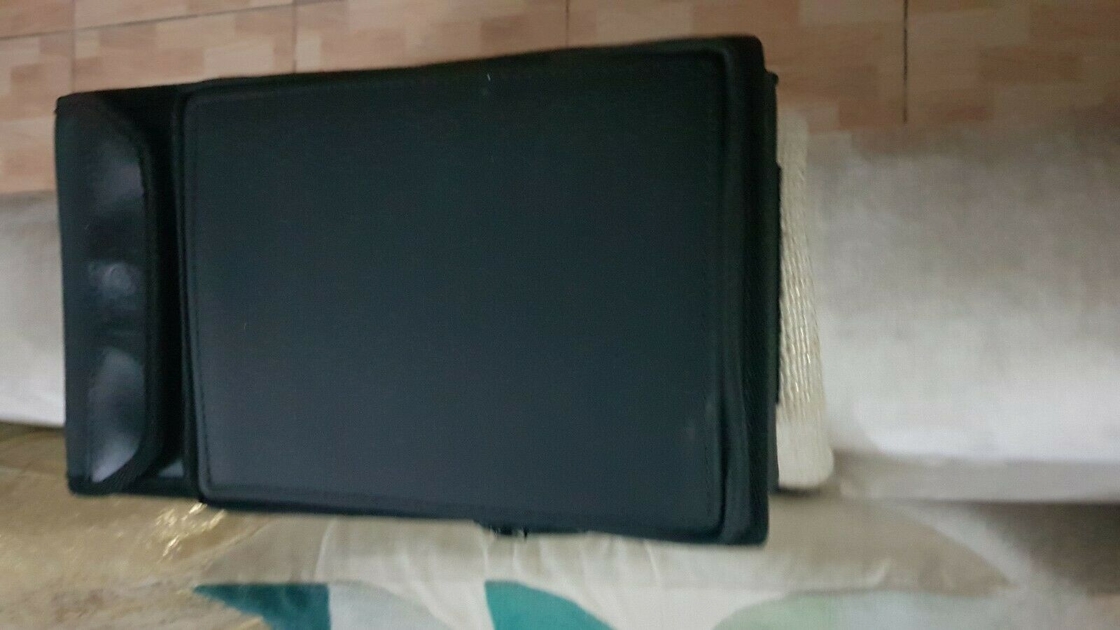

• Includes a carrying case
• Microprocessor: 800 MHz ARM Cortex A8/NXP
• Memory: 2 GB NAND internal flash and 32 GB extended flash
• RAM: 512 MB DDR3 SDRAM
• Display: 5.7-inch color VGA resistive touchscreen
• Battery Life: 8+ hours under typical usage
• Operating Temperature: -4 to 122°F
• Enclosure Protection Rating: IP54
• Shock-tested to withstand a 1-meter drop onto concrete
• Loop power functionality
• Resolve field device issues quickly with advanced diagnostics
• Configure and test valves in-line
• Intrinsically safe
• Automatically sync field data with AMS Device Manager
• Update software and applications online

The merson TREXLHPKLWS3S Trex Device Communicator comes with a HART application and the Device Communicator Plus module. It holds certifications such as ATEX, CSA (US/Canada), and IECEx Intrinsically Safe (including FISCO where relevant), and features wireless capabilities. It also includes 3 years of Standard Support and a carrying case.

Engineered to endure harsh environments in and around manufacturing facilities, it has safety ratings to ensure secure operation. Designed for comfortable, one-handed use throughout the workday, it boasts a well-balanced form factor paired with a durable hand strap. As standard, it offers 32 GB of application memory, giving ample space for customizing with various apps.

Equipped with built-in USB and WiFi, it allows users to transfer data to and from the communicator via the most convenient connectivity option. Its high-performance lithium-ion power module ensures hours of operation—more than enough to last a full work shift—even when powering other field devices.

It enables quick resolution of field device problems through advanced diagnostics, as well as inline valve configuration and testing. Being intrinsically safe, it automatically synchronizes field data with AMS Device Manager and supports online software and app upgrades.

Compatible with a wide range of HART devices regardless of manufacturer, it achieves device interoperability through Electronic Device Description Language (EDDL) technology, which is supported by the HART Communication Foundation. Additionally, it features built-in functionality to power a device; simply connect the communicator to an instrument to supply power.
