Product Details:
Payment & Shipping Terms:
|
| Brand: | EMERSON | PN: | KL4501X1-BD1 |
|---|---|---|---|
| Country Of Origin: | USA | Warranty: | 1 Years |
| Category: | Electrical Products | Subcategory: | Plug/Receptacle |
| Weight: | 0.11 Lbs | Temperatures: | -40 TO 70O C |
| Highlight: | 230VAC Industrial Servo Drives,250kHz Industrial Servo Drives,3 Phase Servo Motor Driver |
||

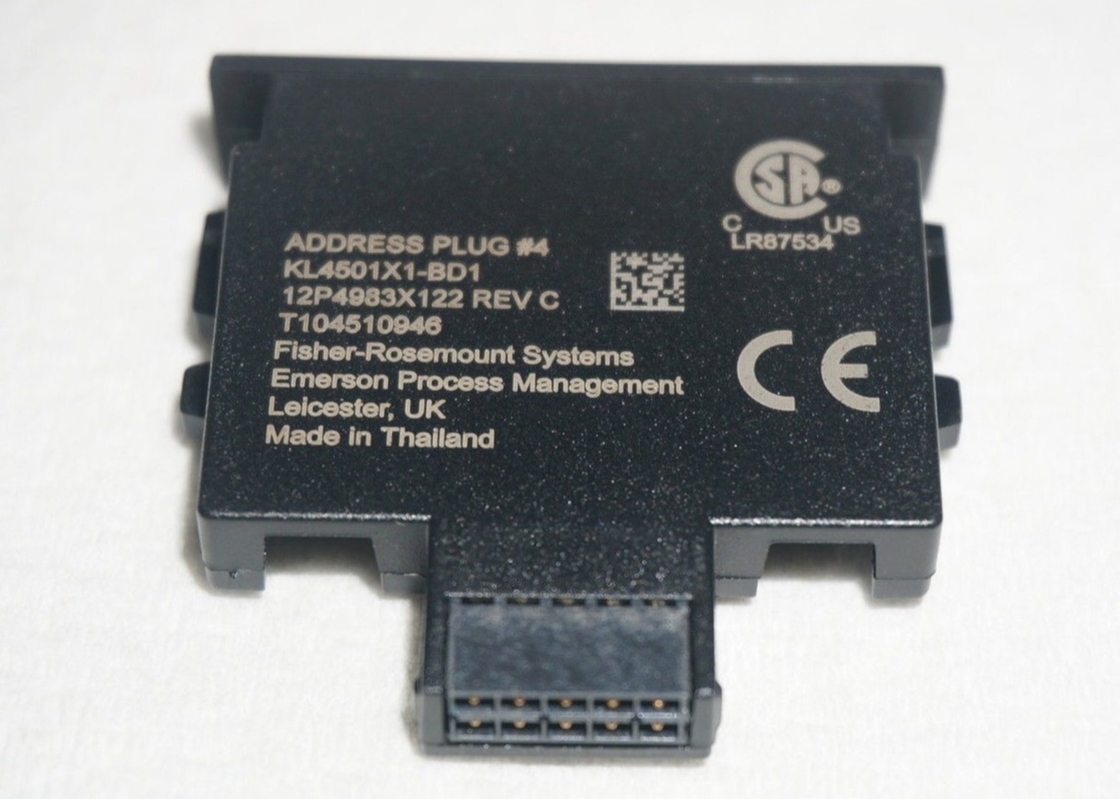

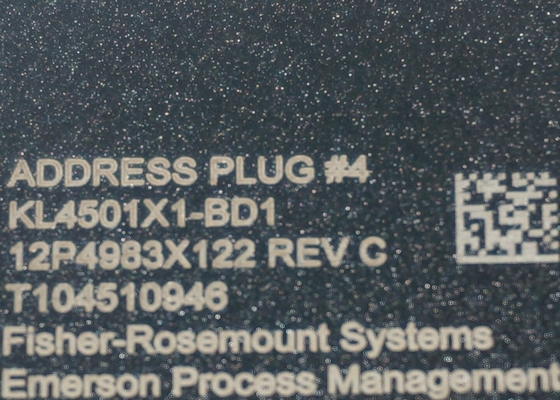

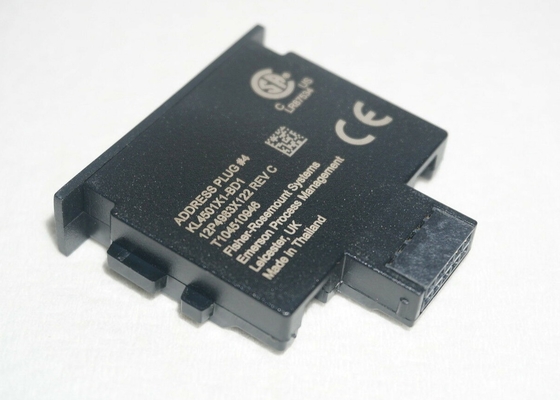

EMERSON KL4501X1-BD1 CHARM ADDRESS PLUG BUS POWER RATING 6.3 VDC AT 2 MA
More information:
Ambient Temperature:-40 to 70o C
Shock :10g ½ Sinewave for 11 msec
Vibration:1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants:ISA-S71.04 –1985
Airborne Contaminants:Class G3
Relative Humidity:5 to 95% Non-Condensing IP 20 Rating
Note: Refer to the product label for serial number and location and date of manufacture.
Warning: This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P5403 "DeltaV Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions". Other installation instructions are available in the " DeltaV S-series and CHARMs Hardware Installation" manual.
CHARM Address Plugs can be inserted or removed under power only when the maximum power supplied to the CHARM I/O card (KL2101X1-BA1) has an open circuit voltage (Voc) of 26.4 VDC. DeltaV bulk power supplies (KJ1502X1) meet this voltage requirement when installed according to the installation instructions.
A keying system ensures compatibility between an Address Plug and CHARM Address Terminal when installed. The Address Terminal keys are automatically set the first time the Address Plug is installed. To install a different Address Plug number on an Address Terminal, reset the keys by removing the Address Terminal from the CHARM Baseplate and pressing the keys to release them from the locked position.
