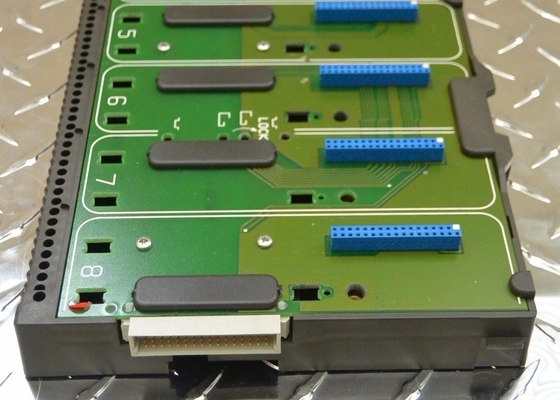

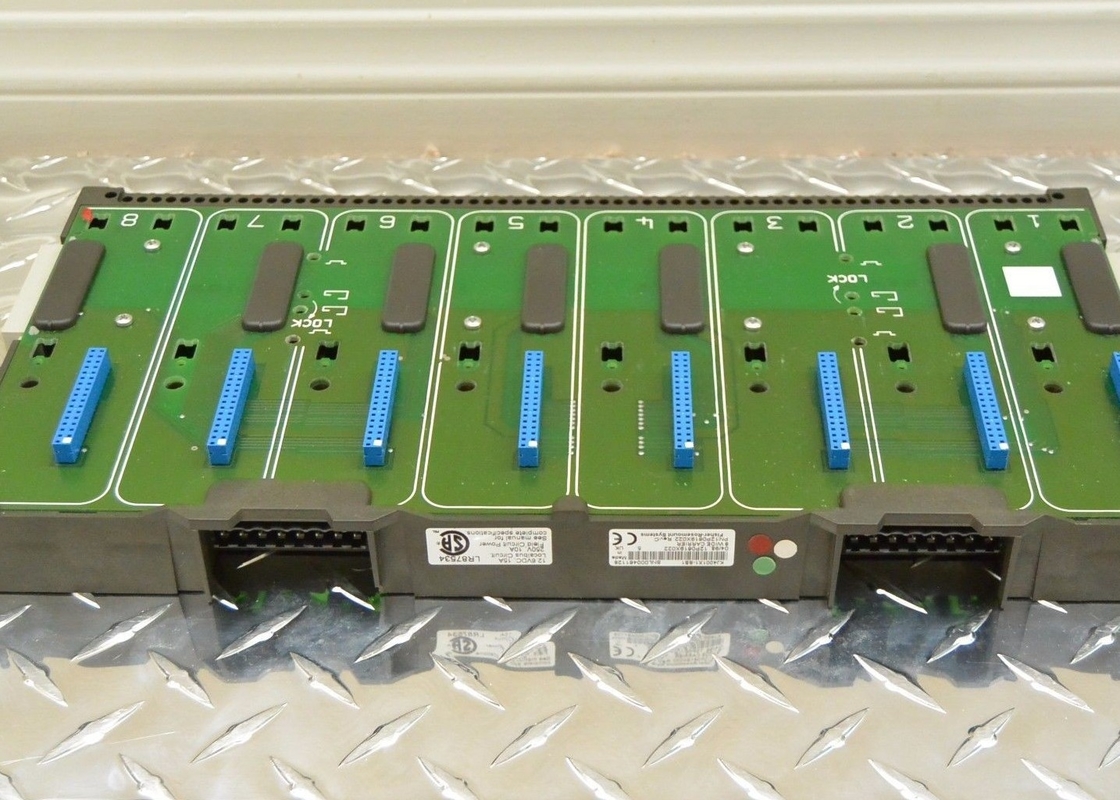

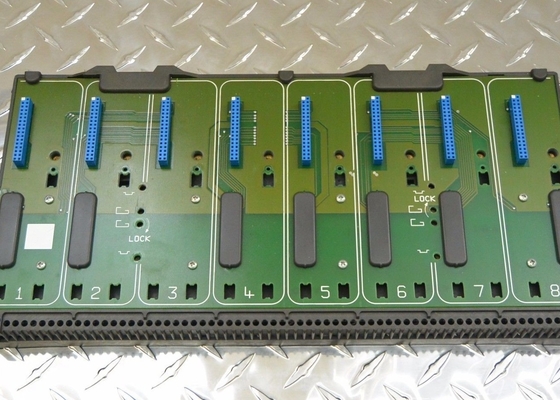

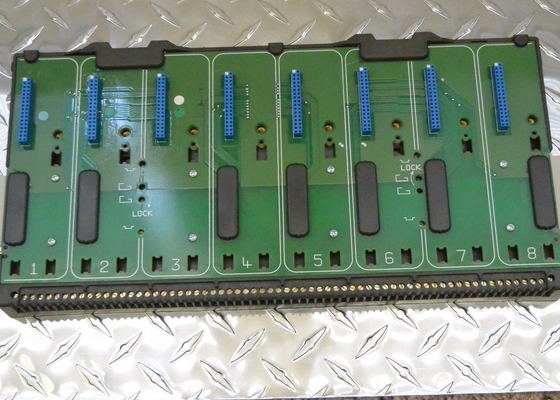

EMERSON of KJ4001X1-BE1 I/O CARRIER W/SHIELD 8 WIDE 8-6.5 AMP 12.6-30 VDC 5
Product Details:
| Place of Origin: | USA |
| Brand Name: | EMERSON |
| Certification: | CE |
| Model Number: | KJ4001X1-BE1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | New Original Box |
| Delivery Time: | 3-5 working day |
| Payment Terms: | T/T |
| Supply Ability: | 50 |
|
Detail Information |
|||
| Brand: | EMERSON | PN: | KJ4001X1-BE1 |
|---|---|---|---|
| Warranty: | 1 Years | Type: | 8-Wide I/O Carrier |
| Dimensions: | 34.7 Cm*17 Cm*3.3 Cm | Weight: | 0.72 Kg |
| Input Voltage: | 12.6 VDC | Operating Temperature: | -40°C To +70°C |
| Highlight: | 200W Industrial Servo Drives,3.5AMP Industrial Servo Drives,250kHz Industrial Servo Drives |
||
Product Description
EMERSON of KJ4001X1-BE1 I/O CARRIER W/SHIELD 8 WIDE 8-6.5 AMP 12.6-30 VDC 5
More information:
LocalBus Circuit :12.6 VDC at 8 A
Field Circuit Power:30 VDC at 6.5 A
Ambient Temperature:-40 to 70o C
Shock:10g ½ Sinewave for 11 msec
Vibration:1mm Peak to Peak from 5 to 16Hz;0.5g from 16 to 150Hz
AirborneContaminants:I SA-S71.04 –1985 Airborne
Contaminants:Class G3
Relative Humidity:5 to 95% Non-Condensing IP 20 Rating
Note:
Bussed field power must not be connected to a supply that generates or contains a source of potential in excess of 30 VDC. Field power supplied to this device either at the field terminal or as bussed field power via the I/O carrier must be removed before removing or connecting this device. Power must be de-energized before disconnecting any carriers or LocalBus Extender cables
This product must not be unplugged unless either the system has been de-energized or the area is known to be safe. No combination of I/O carriers and LocalBus Extenders must exceed a length of 6.5 meters. Interconnecting cable between enclosures must be in conduit.
