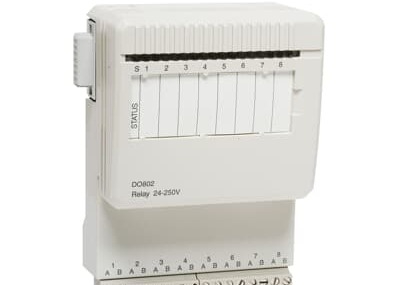

ABB DO802 3BSE022364R1 Digital Output Relay Module 8 Channels

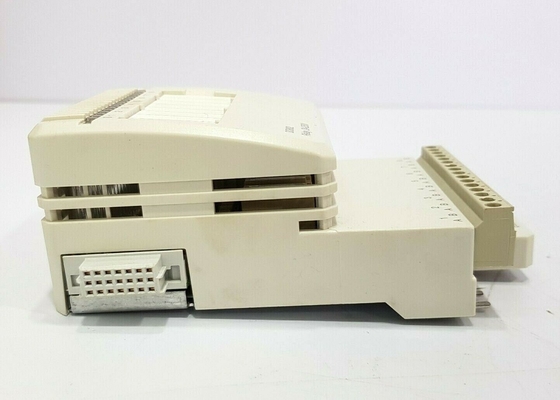

ABB DO802 3BSE022364R1 Digital Output Relay Module 8 Channels

More Information

• Product ID:3BSE022364R1
• ABB Type Designation:DO802
• Catalog Description:DO802 Digital Output Relay 8 ch
• Long Description:24-230V, a.c./d.c.Individually galvanic isolated channels.
• DO802 Digital Output, Relay. Normal open
• Product Type:I-O Module
• Country of Origin:Sweden (SE)
• HS Code:853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.
• Customs Tariff Number:8538909999

Meticulously engineered to address the rigorous demands of industrial automation systems, the ABB DO802 3BSE022364R1 stands out as a high-performance digital output relay. Boasting exceptional reliability and long-term durability, it is well-suited for deployment across diverse sectors—including manufacturing, energy production, and process control industries.

Designed with a space-saving compact form factor, this relay optimizes utilization of control panel real estate, ensuring efficient layout planning. Equipped with spring-loaded terminal blocks, it enables rapid, secure wiring: this not only enhances flexibility during installation but also cuts down on time spent on maintenance tasks.

Built to withstand challenging environmental conditions, the relay delivers consistent performance even in harsh settings. It operates reliably within a temperature range of -25°C to +70°C and tolerates humidity levels of up to 95% (non-condensing), making it an ideal choice for both outdoor applications and harsh indoor environments.

Featuring Single-Pole Double-Throw (SPDT) contacts, the ABB DO802 3BSE022364R1 serves as a robust solution for process control and monitoring. It supports both power switching and signal switching functions, with a maximum switching voltage of 250V AC/DC and a maximum switching current of 5A—ensuring versatility to meet varied circuit requirements.

Beyond efficiency and functionality, the relay is engineered for seamless integration into existing systems. Its panel-mount design, combined with the convenience of spring-loaded terminal blocks, allows for smooth connection to established setups. This streamlines the overall setup process and minimizes operational downtime.


Technical Specifications

• Number of Channels:8
• Channel Type:Digital
• Relay Rating:Up to 10A @ 24V DC / 10A @ 115V AC
• Operating Voltage Range:24V DC to 230V AC
• Response Time:Less than 10ms
• Isolation Voltage:1000V AC
• Operating Temperature Range:-25°C to +60°C
• Storage Temperature Range:-40°C to +85°C
