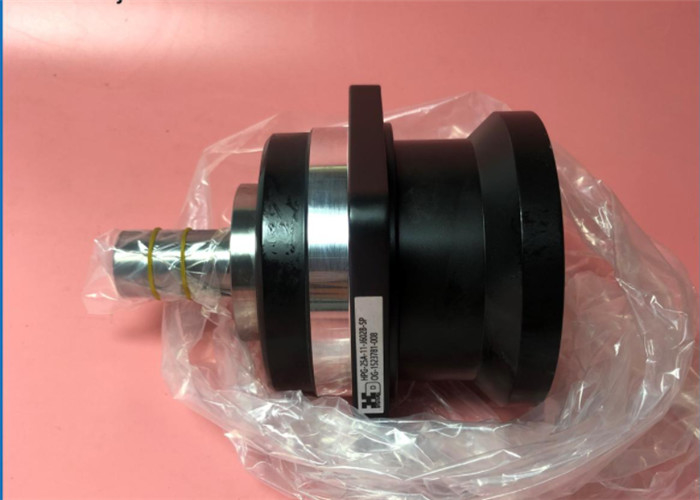

R88G-HPG32A051K0B Decelerator OMRON Cylindrical Servo Motors Backlash Within 3 Minutes Deceleration
R88G-HPG32A051K0B Decelerator For 1kW OMRON Cylindrical Servomotors Backlash Within 3 Minutes Deceleration Ratio 1/5
Backlash: 3 Arcminutes Max.
Decelerators for 3,000-r/min Servomotors
| Model (R88G-) |
Rated rotation speed |
Rated torque |
Efficiency |
Maximum momentary rotation speed |
Maximum momentary torque |
Decelerator inertia |
Allowable radial load |
Allowable thrust load |
Weight |
|
r/min |
N*m |
% |
r/min |
N*m |
kg*m² |
N |
N |
kg |
| 50 W |
| 1/5 HPG11B05100B | 600 | 0.50 | 63 | 1000 | 1.42 | 5.00 × 10⁻⁷ | 135 | 538 | 0.29 |
| 1/9 HPG11B09050B | 333 | 1.12 | 78 | 555 | 3.16 | 3.00 × 10⁻⁷ | 161 | 642 | 0.29 |
| 1/21 HPG14A21100B | 143 | 2.18 | 65 | 238 | 6.13 | 5.00 × 10⁻⁶ | 340 | 1358 | 1.04 |
| 1/33 HPG14A33050B | 91 | 3.73 | 71 | 151 | 10.5 | 4.40 × 10⁻⁶ | 389 | 1555 | 1.04 |
| 1/45 HPG14A45050B | 67 | 5.09 | 71 | 111 | 14.3 | 4.40 × 10⁻⁶ | 427 | 1707 | 1.04 |
| 100 W |
| 1/5 HPG11B05100B | 600 | 1.28 | 80 | 1000 | 3.6 | 5.00 × 10⁻⁷ | 135 | 538 | 0.29 |
| 1/11 HPG14A11100B | 273 | 2.63 | 75 | 454 | 7.39 | 6.00 × 10⁻⁶ | 280 | 1119 | 1.04 |
| 1/21 HPG14A21100B | 143 | 5.40 | 80 | 238 | 15.2 | 5.00 × 10⁻⁶ | 340 | 1358 | 1.04 |
| 1/33 HPG20A33100B | 91 | 6.91 | 65 | 151 | 19.4 | 6.50 × 10⁻⁵ | 916 | 3226 | 2.4 |
| 1/45 HPG20A45100B | 67 | 9.42 | 65 | 111 | 26.5 | 6.50 × 10⁻⁵ | 1006 | 3541 | 2.4 |
| 200 W |
| 1/5 HPG14A05200B | 600 | 2.49 | 78 | 1000 | 6.93 | 2.07 × 10⁻⁵ | 221 | 883 | 1.02 |
| 1/11 HPG14A11200B | 273 | 6.01 | 85 | 454 | 16.7 | 1.93 × 10⁻⁵ | 280 | 1119 | 1.09 |
| 1/21 HPG20A21200B | 143 | 10.2 | 76 | 238 | 28.5 | 4.90 × 10⁻⁵ | 800 | 2817 | 2.9 |
| 1/33 HPG20A33200B | 91 | 17.0 | 81 | 151 | 47.4 | 4.50 × 10⁻⁵ | 916 | 3226 | 2.9 |
| 1/45 HPG20A45200B | 67 | 23.2 | 81 | 111 | 64.6 | 4.50 × 10⁻⁵ | 1006 | 3541 | 2.9 |
| 400 W |
| 1/5 HPG14A05400B | 600 | 5.66 | 87 | 1000 | 16.0 (15.7) | 2.07 × 10⁻⁵ | 221 | 883 | 1.09 |
| 1/11 HPG20A11400B | 273 | 11.7 | 82 | 454 | 33.1 (32.5) | 5.70 × 10⁻⁵ | 659 | 2320 | 2.9 |
| 1/21 HPG20A21400B | 143 | 23.5 | 86 | 238 | 66.5 (65.2) | 4.90 × 10⁻⁵ | 800 | 2547 | 2.9 |
| 1/33 HPG32A33400B | 91 | 34.7 | 81 | 151 | 98.2 (96.3) | 6.20 × 10⁻⁵ | 1565 | 6240 | 7.5 |
| 1/45 HPG32A45400B | 67 | 47.4 | 81 | 111 | 133.9 (131.4) | 6.10 × 10⁻⁵ | 1718 | 6848 | 7.5 |
| 750 W |
| 1/5 HPG20A05750B | 600 | 9.94 | 83 | 1000 | 29.2 | 6.80 × 10⁻⁵ | 520 | 1832 | 2.9 |
| 1/11 HPG20A11750B | 273 | 23.2 | 88 | 454 | 68.1 | 6.00 × 10⁻⁵ | 659 | 2320 | 3.1 |
| 1/21 HPG32A21750B | 143 | 42.3 | 84 | 238 | 124.3 | 3.00 × 10⁻⁴ | 1367 | 5448 | 7.8 |
| 1/33 HPG32A33750B | 91 | 69.7 | 88 | 151 | 204.7 | 2.70 × 10⁻⁴ | 1565 | 6240 | 7.8 |
| 1/45 HPG32A45750B | 67 | 95.0 | 88 | 111 | 279.2 | 2.70 × 10⁻⁴ | 1718 | 6848 | 7.8 |
| 1 kW |
| 1/5 HPG32A051K0B | 600 | 11.5 | 72 | 1000 | 32.9 | 3.90 × 10⁻⁴ | 889 | 3542 | 7.3 |
| 1/11 HPG32A111K0B | 273 | 28.9 | 83 | 454 | 82.6 | 3.40 × 10⁻⁴ | 1126 | 4488 | 7.8 |
| 1/21 HPG32A211K0B | 143 | 58.1 | 87 | 238 | 166.1 | 3.00 × 10⁻⁴ | 1367 | 5488 | 7.8 |
| 1/33 HPG32A331K0B | 91 | 94.3 | 90 | 151 | 270.0 | 2.80 × 10⁻⁴ | 1565 | 6240 | 7.8 |
| 1/45 HPG50A451K0B | 67 | 124.2 | 87 | 100 *1 | 355.4 | 4.70 × 10⁻⁴ | 4538 | 15694 | 19.0 |
| 1.5 kW |
| 1/5 HPG32A052K0B | 600 | 19.1 | 80 | 1000 | 51.3 | 3.90 × 10⁻⁴ | 889 | 3542 | 7.4 |
| 1/11 HPG32A112K0B | 273 | 45.7 | 87 | 454 | 122.5 | 3.40 × 10⁻⁴ | 1126 | 4488 | 7.9 |
| 1/21 HPG32A211K5B | 143 | 90.1 | 90 | 238 | 241.9 | 3.00 × 10⁻⁴ | 1367 | 5448 | 7.9 |
| 1/33 HPG50A332K0B | 91 | 141.5 | 90 | 136 *1 | 379.7 | 4.80 × 10⁻⁴ | 4135 | 14300 | 19.0 |
| 1/45 HPG50A451K5B | 67 | 192.9 | 90 | 100 *1 | 517.8 | 4.70 × 10⁻⁴ | 4538 | 15694 | 19.0 |
| 2 kW |
| 1/5 HPG32A052K0B | 600 | 26.7 | 84 | 1000 | 77.4 | 3.90 × 10⁻⁴ | 889 | 3542 | 7.4 |
| 1/11 HPG32A112K0B | 273 | 62.4 | 89 | 454 | 180.7 | 3.40 × 10⁻⁴ | 1126 | 4488 | 7.9 |
| 1/21 HPG50A212K0B | 143 | 118.9 | 89 | 214 *1 | 343.9 | 5.80 × 10⁻⁴ | 3611 | 12486 | 19.0 |
| 1/33 HPG50A332K0B | 91 | 191.8 | 91 | 136 *1 | 555.0 | 4.80 × 10⁻⁴ | 4135 | 14300 | 19.0 |
| 3 kW |
| 1/5 HPG32A053K0B | 600 | 42.0 | 88 | 1000 | 118.9 | 3.80 × 10⁻⁴ | 889 | 3542 | 7.3 |
| 1/11 HPG50A113K0B | 273 | 92.3 | 88 | 409 *1 | 261.4 | 7.70 × 10⁻⁴ | 2974 | 10285 | 19.0 |
| 1/21 HPG50A213K0B | 143 | 183.0 | 91 | 214 *1 | 517.7 | 5.80 × 10⁻⁴ | 3611 | 12486 | 19.0 |
| 4 kW |
| 1/5 HPG32A054K0B | 600 | 53.9 | 90 | 900 *1 | 163.4 | 3.80 × 10⁻⁴ | 889 | 3542 | 7.9 |
| 1/11 HPG50A115K0B | 273 | 124.6 | 90 | 409 *1 | 359.0 | 8.80 × 10⁻⁴ | 2974 | 10285 | 19.1 |
| 5 kW |
| 1/5 HPG50A055K0B | 600 | 69.3 | 88 | 900 *1 | 197.8 | 1.20 × 10⁻³ | 2347 | 8118 | 17.7 |
| 1/11 HPG50A115K0B | 273 | 158.4 | 91 | 409 *1 | 451.9 | 8.80 × 10⁻⁴ | 2974 | 10285 | 19.1 |
Note 1: The values inside parentheses ( ) are for 100-V Servomotors.
Note 2: The Decelerator inertia is the Servomotor shaft conversion value.
Note 3: The protective structure for Servomotors with Decelerators satisfies IP44.
Note 4: The allowable radial load is the value at the T/2 position.
Note 5: The standard models have a straight shaft. Models with a key and tap are indicated by adding "J" to the end of the model number (the suffix in the box).
Decelerators for 3,000-r/min Cylindrical Servomotors - Straight Shaft
| Motor capacity |
Gear ratio |
Model |
| 50 W | 1/5 | R88G-HPG11B05100B |
| 1/9 | R88G-HPG11B09050B |
| 1/21 | R88G-HPG14A21100B |
| 1/33 | R88G-HPG14A33050B |
| 1/45 | R88G-HPG14A45050B |
| 100 W | 1/5 | R88G-HPG11B05100B |
| 1/11 | R88G-HPG14A11100B |
| 1/21 | R88G-HPG14A21100B |
| 1/33 | R88G-HPG20A33100B |
| 1/45 | R88G-HPG20A45100B |
| 200 W | 1/5 | R88G-HPG14A05200B |
| 1/11 | R88G-HPG14A11200B |
| 1/21 | R88G-HPG20A21200B |
| 1/33 | R88G-HPG20A33200B |
| 1/45 | R88G-HPG20A45200B |
| 400 W | 1/5 | R88G-HPG14A05400B |
| 1/11 | R88G-HPG20A11400B |
| 1/21 | R88G-HPG20A21400B |
| 1/33 | R88G-HPG32A33400B |
| 1/45 | R88G-HPG32A45400B |
| 750 W | 1/5 | R88G-HPG20A05750B |
| 1/11 | R88G-HPG20A11750B |
| 1/21 | R88G-HPG32A21750B |
| 1/33 | R88G-HPG32A33750B |
| 1/45 | R88G-HPG32A45750B |
| 1 kW | 1/5 | R88G-HPG32A051K0B |
| 1/11 | R88G-HPG32A111K0B |
| 1/21 | R88G-HPG32A211K0B |
| 1/33 | R88G-HPG32A331K0B |
| 1/45 | R88G-HPG50A451K0B |
| 1.5 kW | 1/5 | R88G-HPG32A052K0B |
| 1/11 | R88G-HPG32A112K0B |
| 1/21 | R88G-HPG32A211K5B |
| 1/33 | R88G-HPG50A332K0B |
| 1/45 | R88G-HPG50A451K5B |
| 2 kW | 1/5 | R88G-HPG32A052K0B |
| 1/11 | R88G-HPG32A112K0B |
| 1/21 | R88G-HPG50A212K0B |
| 1/33 | R88G-HPG50A332K0B |
| 3 kW | 1/5 | R88G-HPG32A053K0B |
| 1/11 | R88G-HPG50A113K0B |
| 1/21 | R88G-HPG50A213K0B |
| 4 kW | 1/5 | R88G-HPG32A054K0B |
| 1/11 | R88G-HPG50A115K0B |
| 5 kW | 1/5 | R88G-HPG50A055K0B |
| 1/11 | R88G-HPG50A115K0B |
Note 1: The standard models have a straight shaft.
Note 2: To order a Servomotor with a straight shaft with key, add "J" to the end of the model number, in the place indicated by the box.
Example: R88G-HPG11B05100BJ
