85-265VAC Compact Logix Power Supply 2.0A 8W Allen Bradley 1769-PA4

Name: 85-265VAC Compact Logix Power Supply 2.0A 8W Allen Bradley 1769-PA4
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: 1769-PA4
Price: 100000.00 USD
Availability: InStock

Product Details:

Place of Origin:	USA
Brand Name:	AB
Model Number:	1769-PA4

Detail Information

Place of Origin:

USA

Brand Name:

Model Number:

1769-PA4

Brand:

Model:

1769-PA4

Product Line:

CompactLogix

Product Type::

I O Power Supply

Module Type:

AC Power Supply Module

Input Power:

120 Volts AC

Highlight:

High Light

Highlight:

265VAC Compact Logix Power Supply

2.0A Compact Logix Power Supply

8W I O Pwer Supply

Trading Information

Minimum Order Quantity:

Price:

negotiable

Packaging Details:

New in original box

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

100

Product Description

AB 1769-PA4 , CompactLogix Power Supply , Input Voltage Range Of 85 - 265VAC Or 170-265 VAC

Technical Specifications for 1769-PA4

Manufacturer	Rockwell Automation / AB
Brand	AB
Part Number/Catalog No.	1769-PA4
Product Line	Compact Logix
Product Type:	I/O Power Supply
Module Type	AC Power Supply Module
Input Power	120 Volts AC
Input Voltage range:	85…265V AC or 170...265V AC, switch selectable
Power Supply Distance Rating	8; 8 I/O modules can be connected on either side of the power supply for a maximum of 16 module.
Software	RSLogix5000
Input frequency range:	47…63 Hz
Shipping Dimensions	8 x 8 x 5 inches
Power consumption:	200 VA @ 120V AC 240 VA @ 240V AC
Enclosure Type	None (Open Style)
Power dissipation:	8W @ 60 °C (140 °F)

Series	A and B
Current capacity @ 5V DC:	4.0 A
Warranty	1 year
Current capacity @ 24V DC:	2.0A
Wire Type	Copper wire withstanding 90 degrees Celsius
Inrush current, max:	25 A @ 132V AC
Solid Wire Size	22 to 14 AWG
Fuse type:	Littelfuse 02153.15MXP; Wickmann 19195-3.15A
Input Frequency	47 to 63 Hertz

About 1769-PA4

The AB 1769-PA4 is a CompactLogix I/O power supply. It can provide 120 to 240 Volts of AC power and 24 Volts of DC power to the CompactLogix 1769-L3x processors, controllers, and the I/O modules connected to it. Up to 8 modules can connect to each side of the 1769-PA4 for a maximum of 16 modules for one power supply. This power supply provides 4A of current at 5 Volts DC or 2A at 24 Volts DC. This module measures 2.76 x 3.43 x 4.65 inches and weighs approximately 630 g (1.39 lb). This power supply supports DIN rail or panel mounting. It has an open-style enclosure with integrated fuse that is replaceable with part numbers Littelfuse 02183.15MXP or the Wickman 19195-3 fuses.
The 1769-PA4 has components that include a bus lever with a locking function, LED status indicator, a power supply door with an identification label, both movable and stationary bus connectors (with male and female pins), a nameplate label, upper and lower tongue-and-groove slots, upper and lower DIN rail latches, a terminal block with finger-safe cover, and a housing cover for the replaceable fuse.
This power supply has a selectable input voltage range of 85 to 265 Volts and 170-265 VAC along an input frequency range of 47 to 63 Hertz. Its power consumption is around 200 VA at 120 Volts AC and 240 VA at 240 Volts AC and its maximum inrush current is 25 Amps at 132 Volts AC. The 1769-PA4 has a current capacity of 4 Amps at 5 Volts DC and one of 2 Amps at 24 Volts DC, a nominal input voltage of 120 to 220 Volts AC, a Wattage of 18 Watts, and an output voltage of 24 Volts DC. Its isolation voltage is continuous at 265 Volts from AC power input to the system.

The AB product with part number 1769-PA4 is a CompactLogix component that functions as an I/O Power supply. This CompactLogix I/O power supplies backplane power which is distributed to the 1769 Compact I/O modules. This power supplies is capable of powering modules from both sides of the unit. Compact I/O modules may be installed on each side of the I/O expansion power supply where up to Eight (8) modules may be installed for a total of 16 Compact I/O modules.

This power supply features selectable voltage input range of 85 to 265V AC or 170 or 265V AC. Before energizing the power supply, ensure that the correct selection is activated to prevent damage to the module. This power supply component has a rated current output of 4.0A at 5VDC and 2.0A at 24VDC. This Power supply is compatible for installations in a CompactLogix assembly with a high number of discrete outputs and analog modules.

This power supply is installed with an internal fuse. This fuse may be replaced with the part numbers Wickmann 19195-3.15A or Littelfuse 02153.15MXP.

Power supply planning is essential in building a CompactLogix assembly this is due to the fact that the power supply is the module referenced by the power supply distance rating requirement. This module requirement must be followed to maintain a valid CompactLogix configuration. Including the processor and communication modules, any module must not exceed the defined power supply distance rating.

This power supply module is also configured in the programming software such as RSLogix 5000 or Studio 5000 Logix Designer programming software.

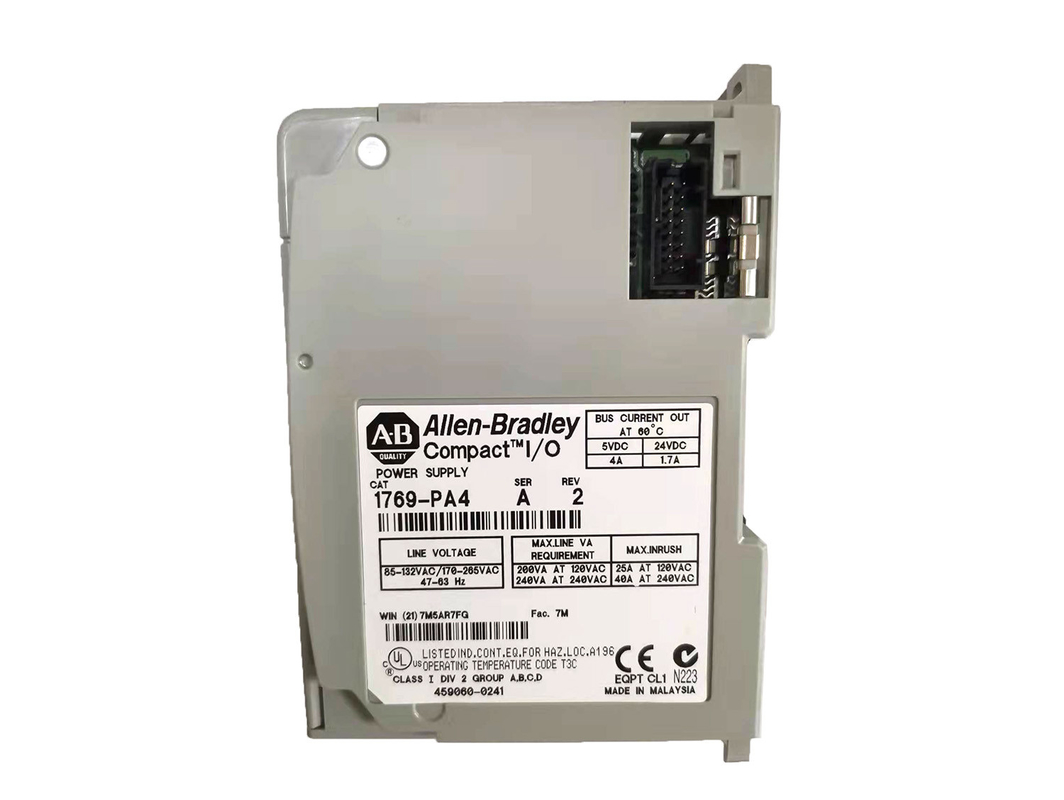

85-265VAC Compact Logix Power Supply 2.0A 8W Allen Bradley 1769-PA4 0
