DC Analog Servo Controller Module PLC 5 Series Allen Bradley 1771-HSN
Detailed Product Description
| Brand: |
AB |
Model: |
1771-HSN |
| Module Type: |
Servo Controller Module |
Fuse Voltage: |
120 Volts |
| Max Input Frequency: |
250 Kilohertz Differential Input |
Outputs: |
+/- 10 Volt DC Analog Command |
| High Light: |
DC Analog Servo Controller Module, PLC 5 Servo Controller Module, Allen Bradley 1771-HSN |

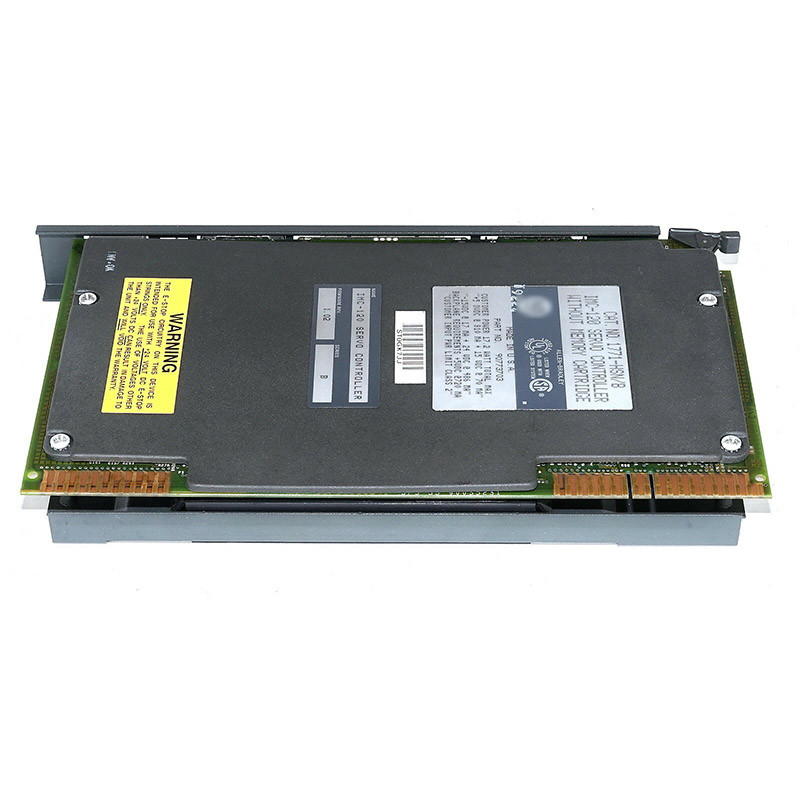

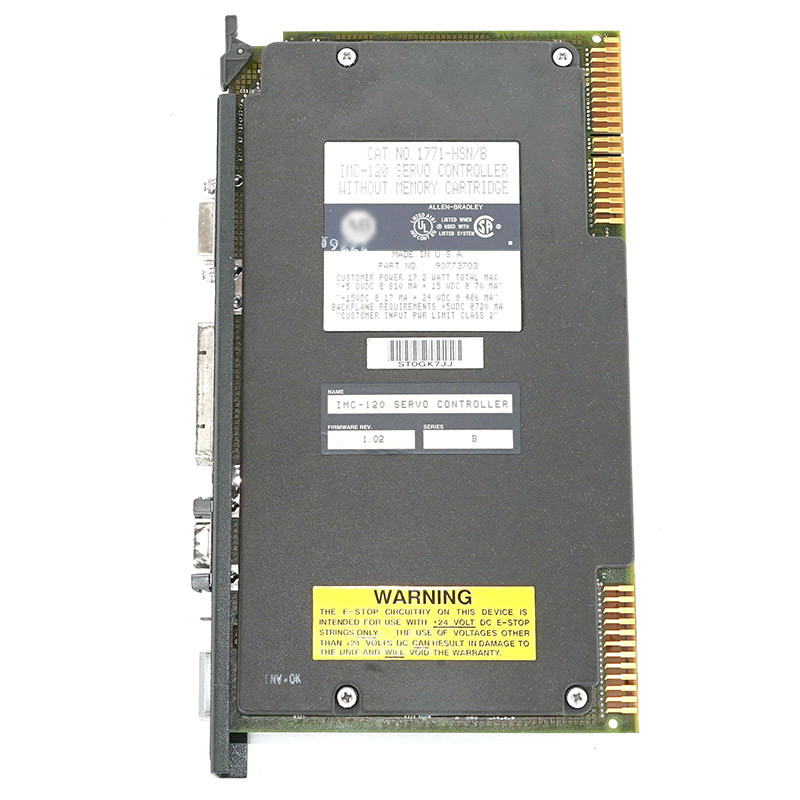

AB 1771-HSN Servo Controller Module From The PLC 5 Series
Technical Specifications for 1771-HSN
| Brand |
AB |
| Part Number/Catalog No. |
1771-HSN |
| Module Type |
Servo Controller Module |
| Fuse Voltage |
120 Volts |
| Max Input Frequency |
250 Kilohertz Differential Input |
| Outputs |
+/- 10 Volt DC Analog Command |
| Slots |
2 Slots Per ES |
| Module Update Period |
2 ms/axis |
| Backplane Current |
1.7 Amperes |
| Wiring Arm |
1771-WB |
| Wiring Arm |
1771-WA |
| Pulse Capture Time |
50-9.999 Microseconds |
About 1771-HSN

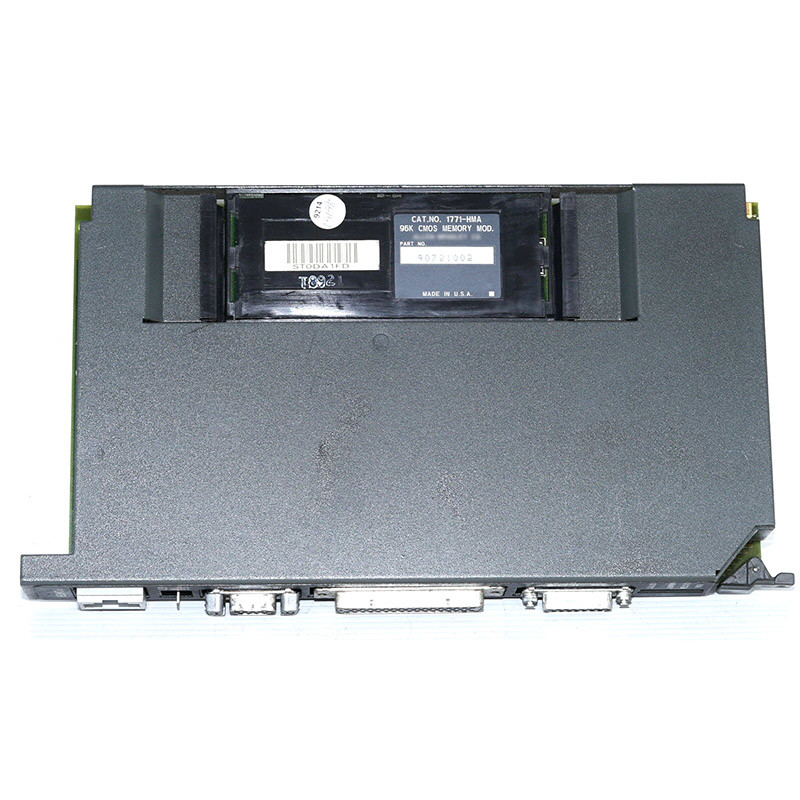

The AB 1771-HSN is a PLC 5 IMC 120 Servo Controller Module. It does not contain a memory cartridge and it requires a 1771-HM or
a 1771-HMA plug-in memory cartridge. It is a Series B module.
The 1771-HSN module has a fuse voltage of 120V and 250KHz differential maximum input frequency. It has +/- 10 Volt DC Analog Command
outputs. It has a dimension of 3.5 x 6.5 x 2 in. and weighs 2.2 lbs. It has a backplane current load of 1.7A and 2ms/axis module update period.
It comes with 1771-WA and 1771-WB wiring arms for module replacement without the need for disconnecting wiring. It requires one slot for
installation in a 1771 I/O chassis.
PLC 5 controllers are widely used for industrial control in a 1771 platform. They occupy a single slot in an I/O chassis and are used for
high-speed information processing. It is used in applications with specialized I/O requirements and processor coordination like large regulatory
and sequential control applications.
The PLC system offers a complete range of digital and analog I/O modules including intelligent I/O and it
uses a variety of communication networks like DH+, ControlNet, EtherNet/IP, etc. The 1771-HSN module is made for use in a clean industrial
environment with a 0 – 60 °C (32 – 140 °F) operating temperature, a 5 – 95 % noncondensing relative humidity
