5 Digital PLC AC DC Input Module 32 Inputs Allen Bradley 1771-IAN 138 Volts

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

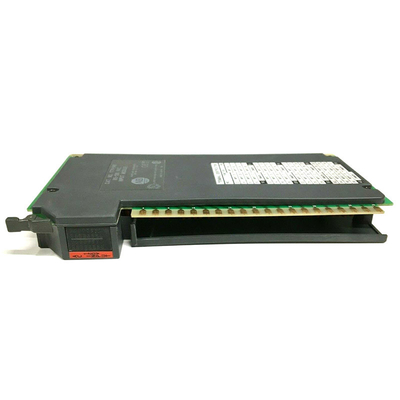

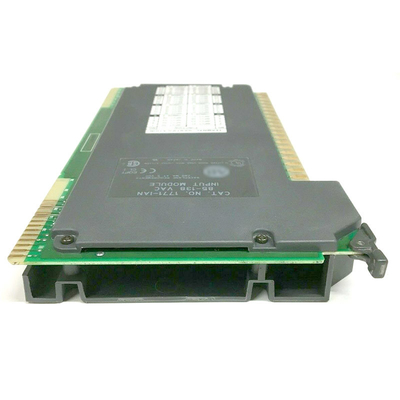

5 Digital PLC AC DC Input Module 32 Inputs Allen Bradley 1771-IAN 138 Volts

5 Digital PLC AC DC Input Module 32 Inputs Allen Bradley 1771-IAN 138 Volts
5 Digital PLC AC DC Input Module 32 Inputs Allen Bradley 1771-IAN 138 Volts
5 Digital PLC AC DC Input Module 32 Inputs Allen Bradley 1771-IAN 138 Volts
5 Digital PLC AC DC Input Module 32 Inputs Allen Bradley 1771-IAN 138 Volts

Large Image :  5 Digital PLC AC DC Input Module 32 Inputs Allen Bradley 1771-IAN 138 Volts

Product Details:

Place of Origin: USA
Brand Name: AB
Model Number: 1771-IAN

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100
Detailed Product Description
Brand: AB Model: 1771-IAN
Module Type: Digital AC/DC Input Module Number Of Inputs: 32 Inputs (4 Sets Of 8)
Voltage Category: 120 Volts AC/DC AC Operating Voltage: 85-138 Volts
Highlight:

PLC AC DC Input Module

,

5 Digital AC DC Input Module

,

138 Volts PLC Input Module

AB 1771-IAN PLC 5 Digital AC/DC Input Module 32 Inputs



Technical Specifications for 1771-IAN

Brand AB
Part Number/Catalog No. 1771-IAN
Module Type Digital AC/DC Input Module
Number of Inputs 32 Inputs (4 Sets of 8)
Voltage Category 120 Volts AC/DC
AC Operating Voltage 85-138 Volts
DC Operating Voltage N/A
Backplane Current 280 Miliamperes
Max AC Off-State Current 3.0 Miliamperes
Max DC Off-State Current 0.8 Miliamperes
Typical AC Signal Delay (On) 10 (+/- 7) ms
Typical DC Signal Delay (On) N/A
Typical AC Signal Delay (Off) 20 (+/- 15) ms
Typical DC Signal Delay (Off) N/A







About 1771-IAN

The AB 1771-IAN is a PLC 5 Digital AC/DC Input Module. It converts AC signals provided by user devices to the logic level needed by the processor. It directly controls the state of corresponding bits in the PLC data table. It contains various input devices such as pushbuttons, limit switches, pilot lights, motor starters, and annunciators to interface with on/off sensors and actuators. It has a modular design with space-saving and pocket-friendly means to add input to a PLC control system. It comes with a 1771-WN wiring arm to replace the module, eliminating the need to disconnect the wiring. It is a series A module and supports ½ and 1-slot I/O addressing.

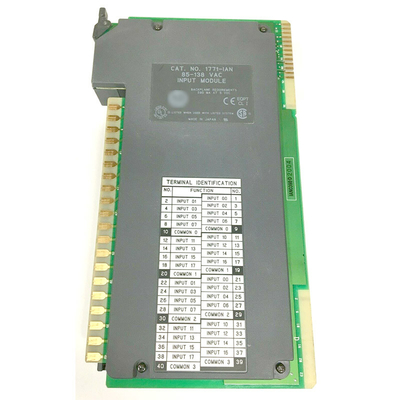

The 1771-IAN module has 32 (4 sets of 8) inputs with a 120V AC/DC voltage category. It has an operating voltage range of 85 - 138V AC. It has a typical signal delay of 10ms (±7) at on-AC state and 20ms (±15) at off-AC state. It has a maximum off-state current of 2.3mA at 60Hz and 1.9mA at 50Hz and a backplane current load of 280mA. It has a maximum power dissipation of 7W and thermal dissipation of 24.1 BTU/hr. It is installed in a 1771 I/O chassis containing a PLC processor. Keying bands for putting it in the right slot are found between pins 20 and 22 for the upper connector and between pins 16 and 18 for the lower connector.

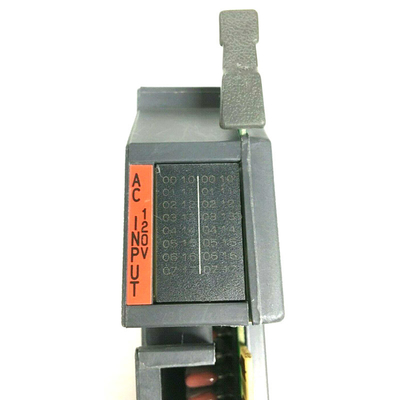

The 1771-IAN module has 32 red status indicators on the front panel. It contains optoelectrical isolation to protect the system circuits from electrical transients. It also contains an input filtering feature to reduce electrical noise.




5 Digital PLC AC DC Input Module 32 Inputs Allen Bradley 1771-IAN 138 Volts 0
