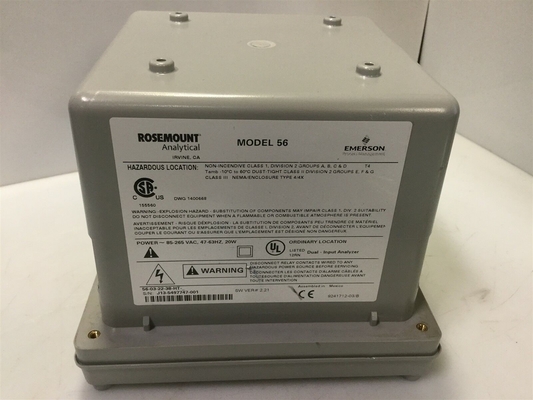

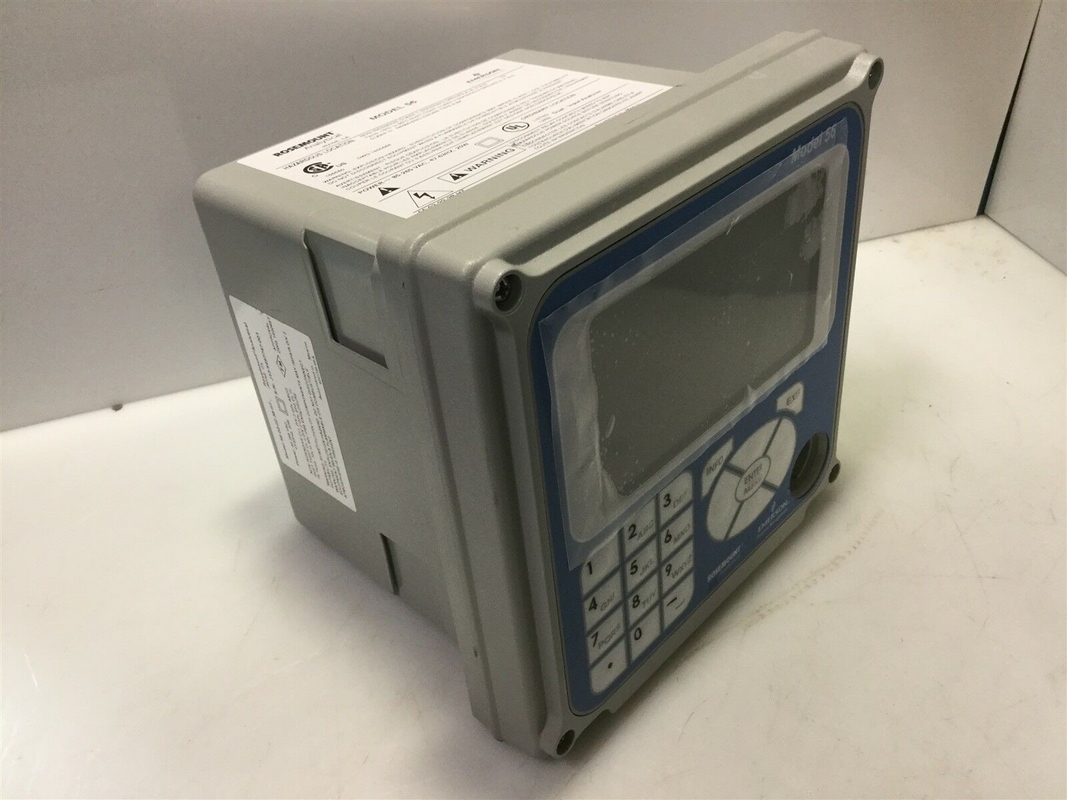

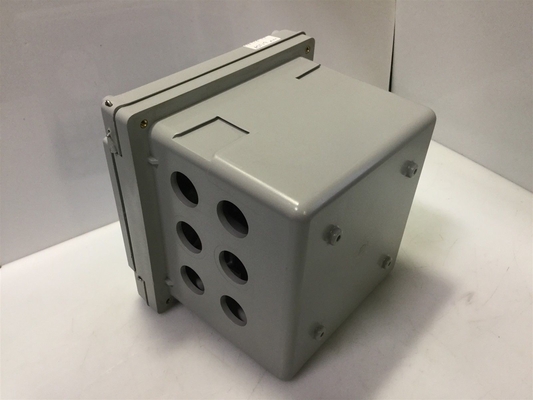

56-03-22-38-HT EMERSON Analyzer Dual Input Control 265VAC 50/60HZ 20 Watt

56-03-22-38-HT EMERSON Analyzer Dual Input Control 265VAC 50/60HZ 20 Watt

More information:

Featuring USB capabilities, a high-quality screen, and HART communication signal, the Rosemount 56 Transmitter provides accurate and reliable readings for pH or ORP measurements. The high resolution, full-color screen provides easy-to-read measurements and data trend graphs and provides customizable display options for the user. A USB data port allows users to download process data and alarm conditions and gives them the ability to upload and download analyzer configurations to help program new units.

The 56032238HT model features 85-264 VAC switching power, 50/60 Hz with four alarm relays, and a HART digital communication signal for increased visibility of process parameters. This pH/ORP meter is ideal for the water/wastewater and pulp and paper industries and works in measurement ranges of 0 to 14 for pH and -1500 to +1500mV for ORP. Rosemount pH sensors are trusted tools in the oil and gas, chemical, and refining industries but they’re also ideal for the food and beverage, life sciences, and power industries.

The tireless pursuit of innovation drives the Rosemount portfolio of superior quality measurement and analytical technologies to provide customers with insight across all touch points needed to operate efficiently, safely, and with peace of mind.

Rosemount 56-03-22-38-HT 56Advanced Dual-Input Analyzer

The 56 Advanced Dual-Input Analyzer enables continuous measurement of liquid analytical data from either one or two sensors.

Its modular design allows for on-site replacement of signal input boards, facilitating easy configuration adjustments. The high-resolution full-color display delivers exceptional visibility and functionality, setting it apart in liquid analytical instrumentation.

Ordering Information

The 56 Analyzer supports single or dual sensor inputs, with unlimited options for combining dual measurements. Its measurement capabilities cover pH/ORP, resistivity/conductivity, concentration percentage, total chlorine, free chlorine, monochloramine, dissolved oxygen, dissolved ozone, turbidity, pulse flow, temperature, and 4-20mA input.

Standard features include two isolated inputs, nine local languages, four 4-20mA current outputs, detachable connectors for power and current outputs, and four solid plugs for sealing openings. HART digital communication is included at no extra cost, while Profibus digital communication is available as an option.
