Product Details:
Payment & Shipping Terms:
|
| Price: | Contact Us | Brand: | ABB |
|---|---|---|---|
| Condition: | New Original | Warranty: | 1 Years |
| Deliver Time: | 3 -5working Day | Type Of Module: | Module |
| Country Of Origin: | Estonia | Color: | Black /white /grey |
| Model: | RDIO-01 | Shipping Term: | DHL / FEDEX /UPS/TNT |
| High Light: | RDIO-01 Digital I O Extension,Isolated Digital I O Extension,RDIO-01 Digital I O Module |
||

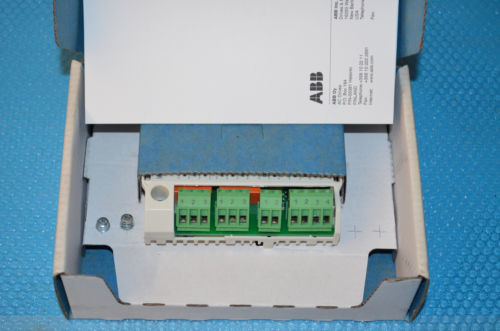

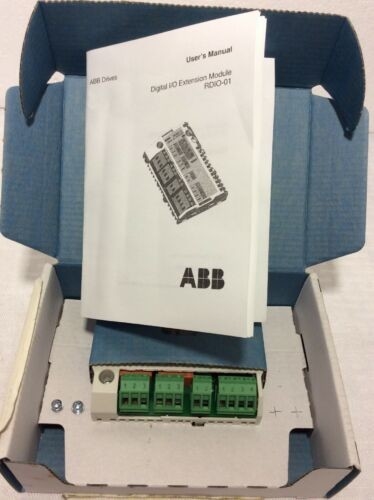

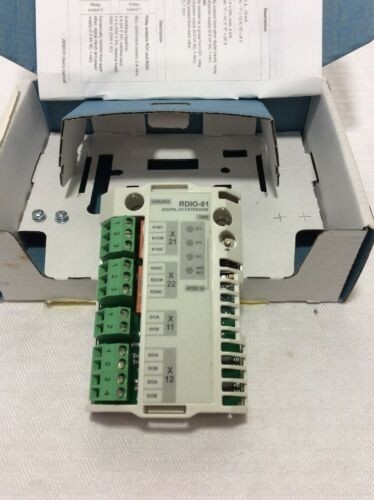

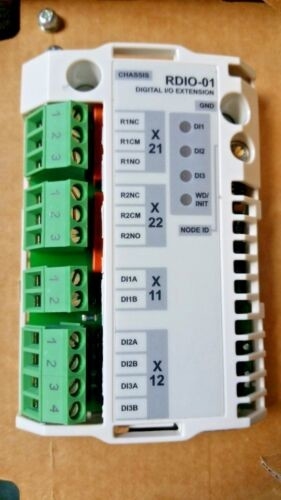

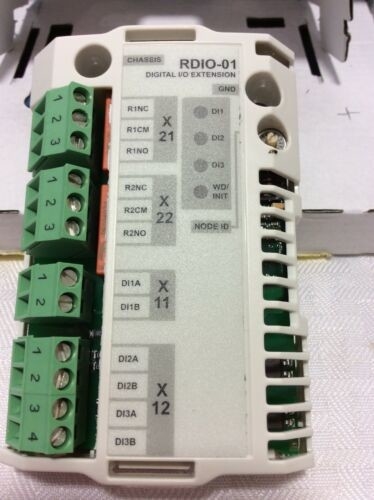

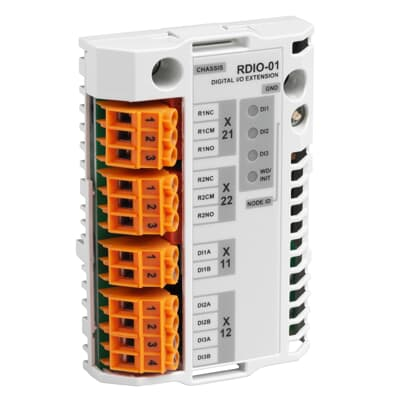

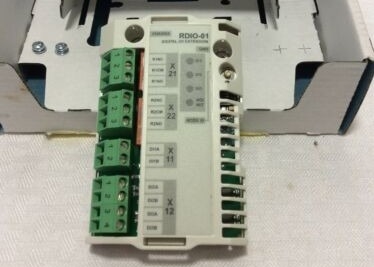

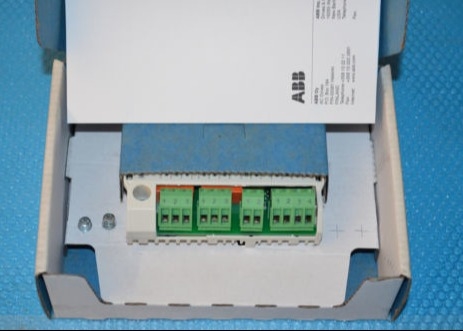

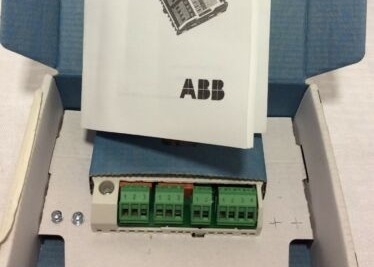

ABB RDIO-01 Isolated from each other, the digital inputs, power supply and earth. Digital I/O Extension
More information:
Digital inputs:
• Input voltages: 24…250 V DC, 110…230 V AC
• Logic levels (DC): "0" < 8 V, "1" > 12 V
• Input currents: 4 mA (min), 10 mA (typical) at
24 V DC, 4 mA (typical) at 230 V AC
• Filtering time (selectable for all channels):
ON: 5…10 ms , OFF: 2 ms
• Updating interval in the ACS 800 Standard
Application Program: 12 ms (min.)
• Isolated from each other, the relay outputs, power
supply and earth. Test voltages: 2.5 kV rms, 1 minute
(DI1 and DI2+DI3); 1.5 kV rms, 1 minute (DI2 and
DI3
Relay outputs:
• Max. contact voltage: 120 V DC, 250 V AC
• Max. contact current / power: 5 A, 24 V DC; 0.4 A, 120 V DC; 1250 VA, 250 V AC
• Max. continuous current: 2 A rms
• Minimum current: 5 mA, 24 V DC
• Contact material: Silver cadmium oxide (AgCdO)
• Contact protection: Varistor (250 V)
• Isolated from each other, the digital inputs, power supply and earth. Test voltage: 2.5 kV rms, 1 minute
Details:
Long Description:+-20mA, 0(4)...20mA, +-10V, +-5V, 0(1)...5V, diff., 50V CMV,. Rin(curr)
250 Ohms, 14bit + sign. Individually galvanic isolated channels.
Use Module Termination Unit TU810, TU812, TU814, TU830, TU833.
Additional Information
Medium Description:AI820 Analog input 4x1 ch.
HS Code:853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other
Customs Tariff Number:8538909999
Dimensions
Product Net Height:150 mm
Product Net Width:75 mm
Product Net Weight:0.25 kg
Technical
Channel Type:AI
Number of Input Channels:4
Number of Output Channels:0
Environmental
RoHS Status:Following EU Directive 2011/65/EU
WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries:0
