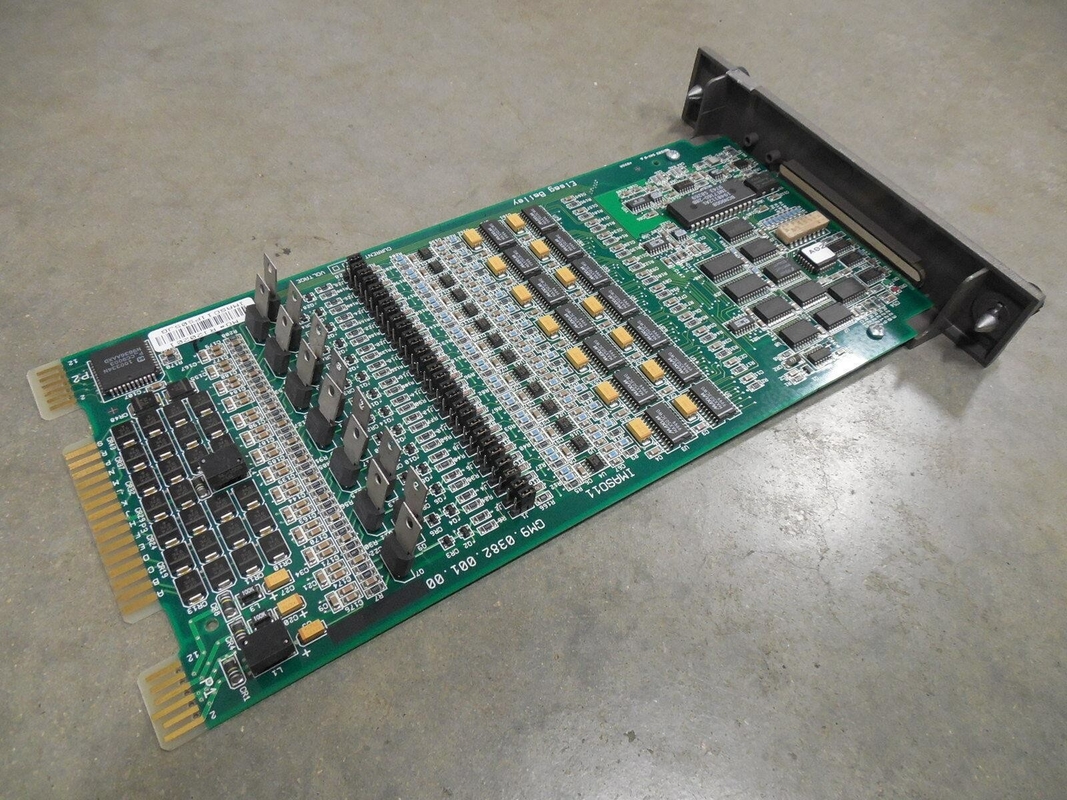

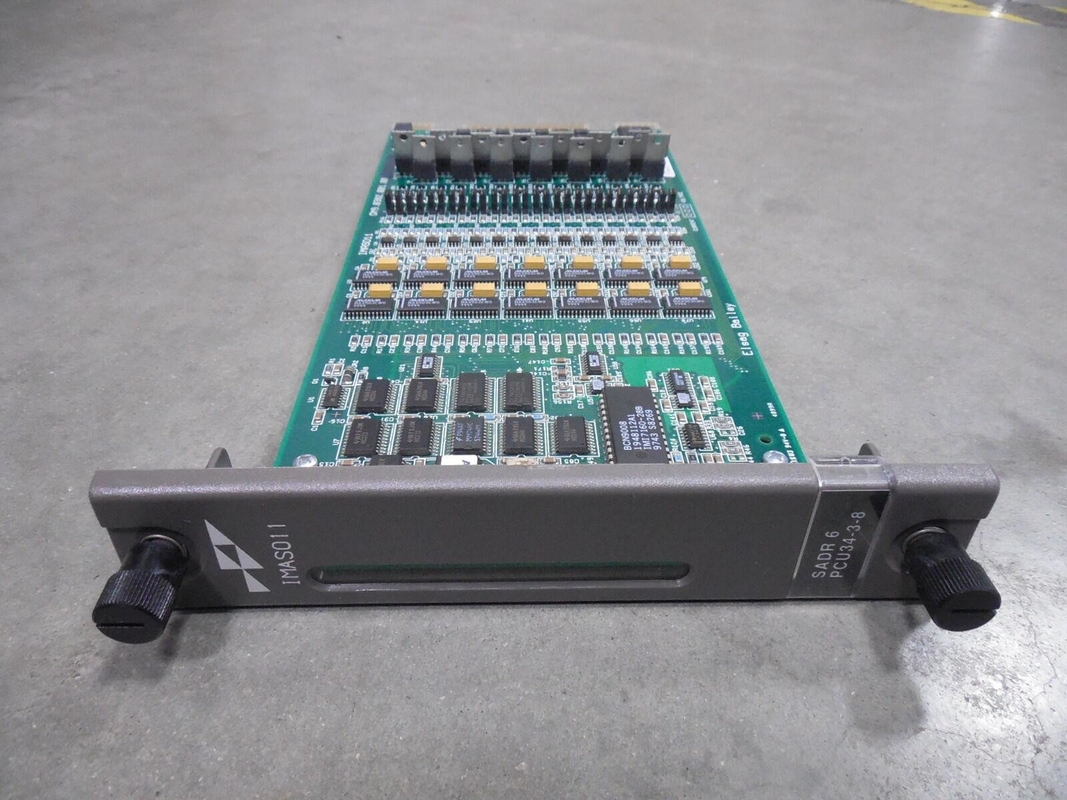

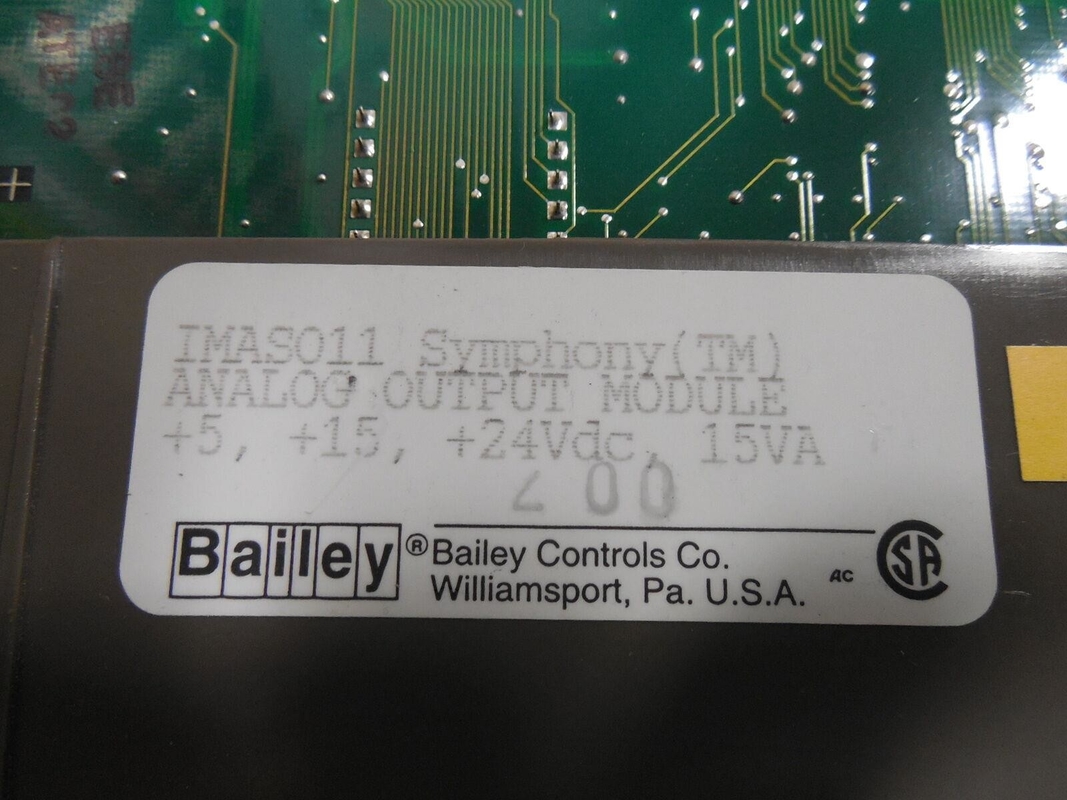

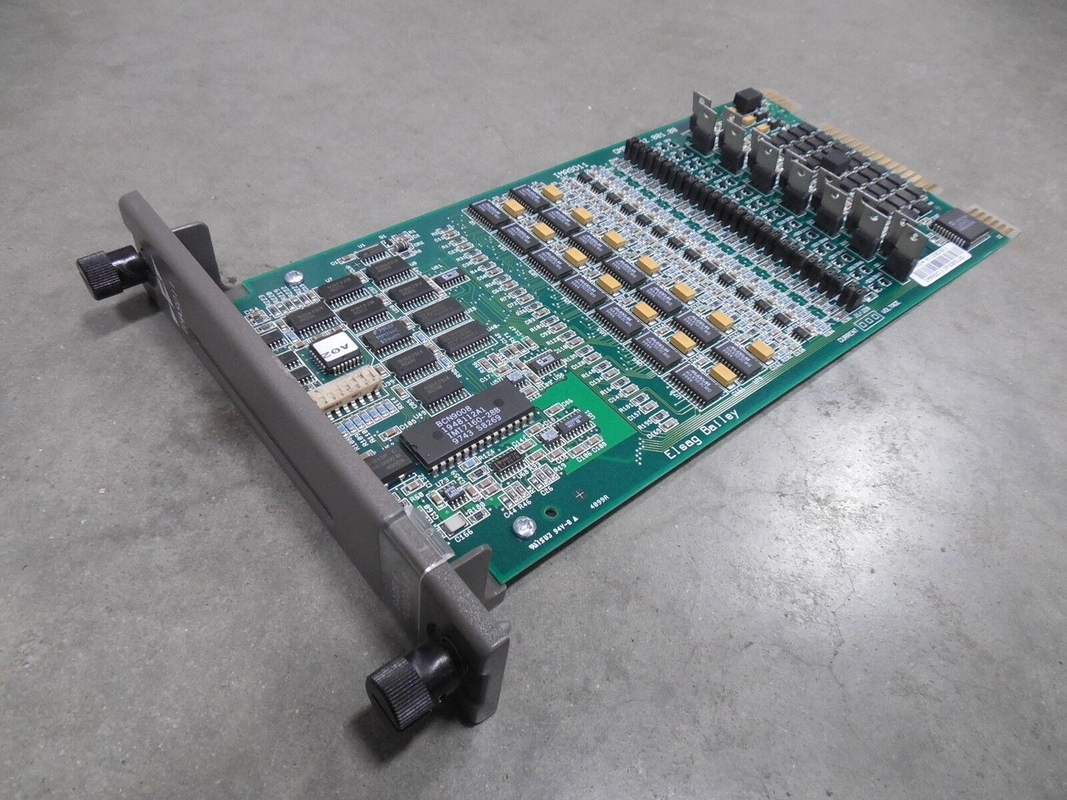

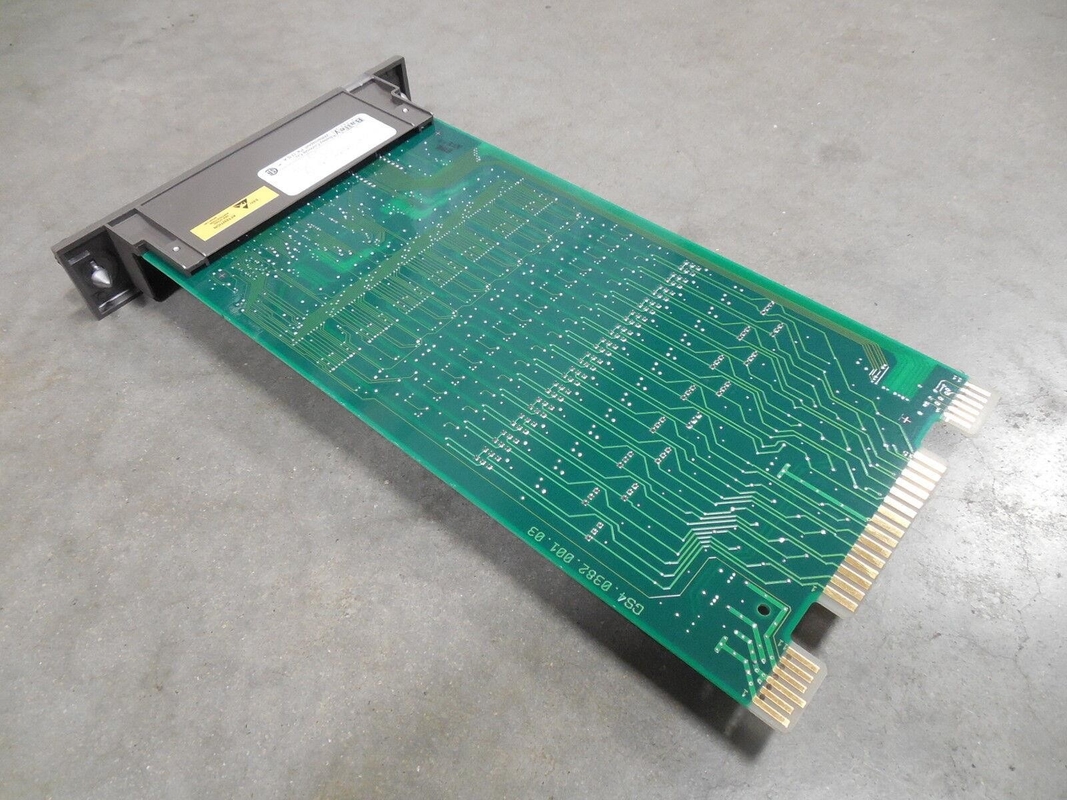

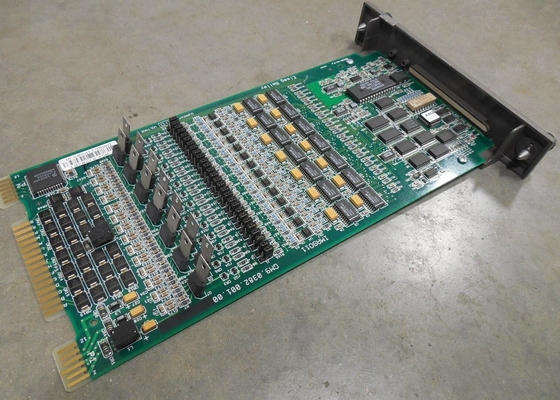

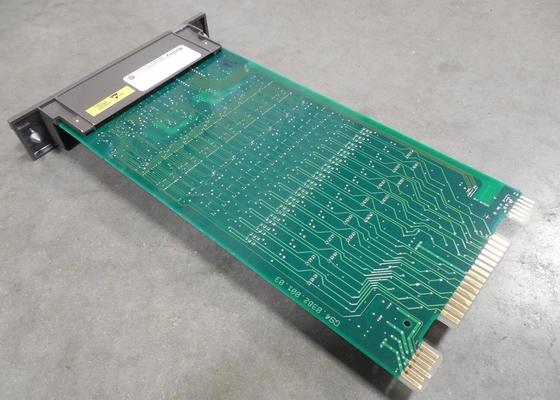

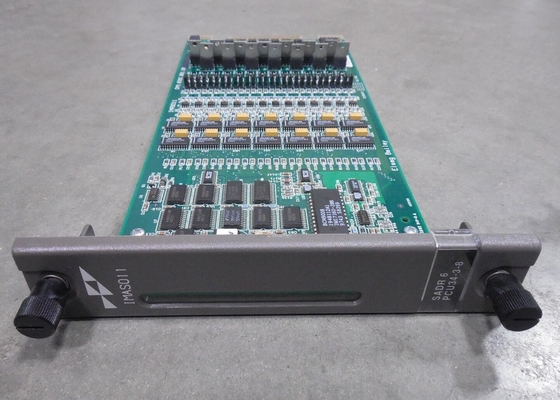

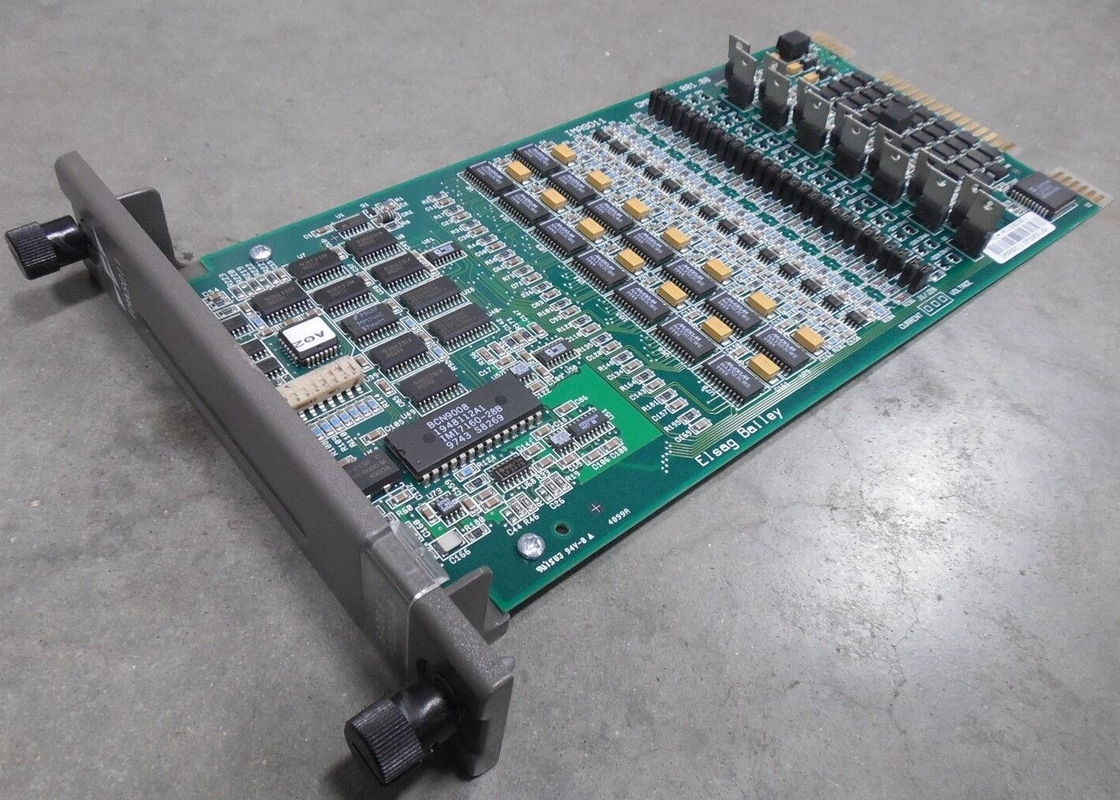

ABB IMASO11 Analog Output Slave Module Infi-Net To Node Communication Interface
More information:
Overview
The ABB IMASO11 stands as a versatile analog output module, specifically designed to transmit analog signals from Symphony Plus controllers. Characterized by its compact size and lightweight build, this module facilitates effortless installation and operation, ensuring seamless integration into industrial setups. It is equipped with 4 analog output channels, each boasting a 16-bit resolution for precise signal delivery, and offers broad compatibility with a diverse range of sensors and actuators.
Features
Equips 4 independent analog output channels to meet multi-signal transmission needs.
Delivers 16-bit resolution, guaranteeing high-precision signal output for accurate industrial control.
Boasts a user-friendly design with simplified installation and operation processes, reducing setup time.
Seamlessly compatible with Symphony Plus controllers, ensuring smooth integration into existing control systems.
Supports a wide array of sensors and actuators, enhancing versatility across different industrial applications.
Offers advanced output capabilities, including 0-10V DC or 4-20mA signal options, to adapt to demanding precision control scenarios.
Technical Specifications
Gross weight: 0.612 kg;
Net weight: 0.27 kg (standard version); 0.5 kg (compact variant)
Dimensions
Standard: 73.66 x 358.14 x 271.78 mm; Compact variant: 84 x 84 x 90 mm
Temperature Range
Operating: -20°C to 60°C; Storage: -40°C to 85°C
Humidity Resistance:5% to 95% relative humidity (non-condensing)
Power Supply Compatibility:Wide voltage range of 120-240V AC, suitable for diverse industrial power sources
Current Rating:25mA, ensuring stable operation even under heavy load conditions
Maximum Load Capacity:250 Ohms, enabling seamless integration into complex systems without performance loss
Communication Protocol:Utilizes Modbus RTU, enhancing interoperability with other automation devices
Enclosure Protection:IP20 rating, providing basic dust resistance to protect internal components from external contaminants
Product Highlights
The ABB IMASO11 is an advanced analog output module engineered to elevate the performance of industrial automation systems. Its high-resolution 0-10V DC or 4-20mA output capability ensures exceptional precision in even the most demanding applications, making it a reliable choice for critical control tasks.
Built for durability and efficiency, the module operates within a flexible 120-240V AC voltage range, allowing it to adapt to various power configurations commonly found in industrial environments. With a 25mA current rating, it maintains consistent performance even when handling heavy loads, minimizing the risk of operational disruptions.
Designed with space efficiency in mind, the compact variant (84mm x 84mm x 90mm, 0.5 kg) is ideal for automation systems with limited installation space, while the standard version caters to scenarios requiring larger form-factor integration. Its ability to withstand harsh operating temperatures (-20°C to 60°C) ensures uninterrupted functionality across diverse industrial settings, from manufacturing facilities to process control plants.
Moreover, the module’s IP20 enclosure protection safeguards internal components against dust accumulation, extending its service life and reducing maintenance requirements. By leveraging the Modbus RTU communication protocol, the ABB IMASO11 seamlessly connects with other automation devices, fostering a cohesive and interoperable control ecosystem.
