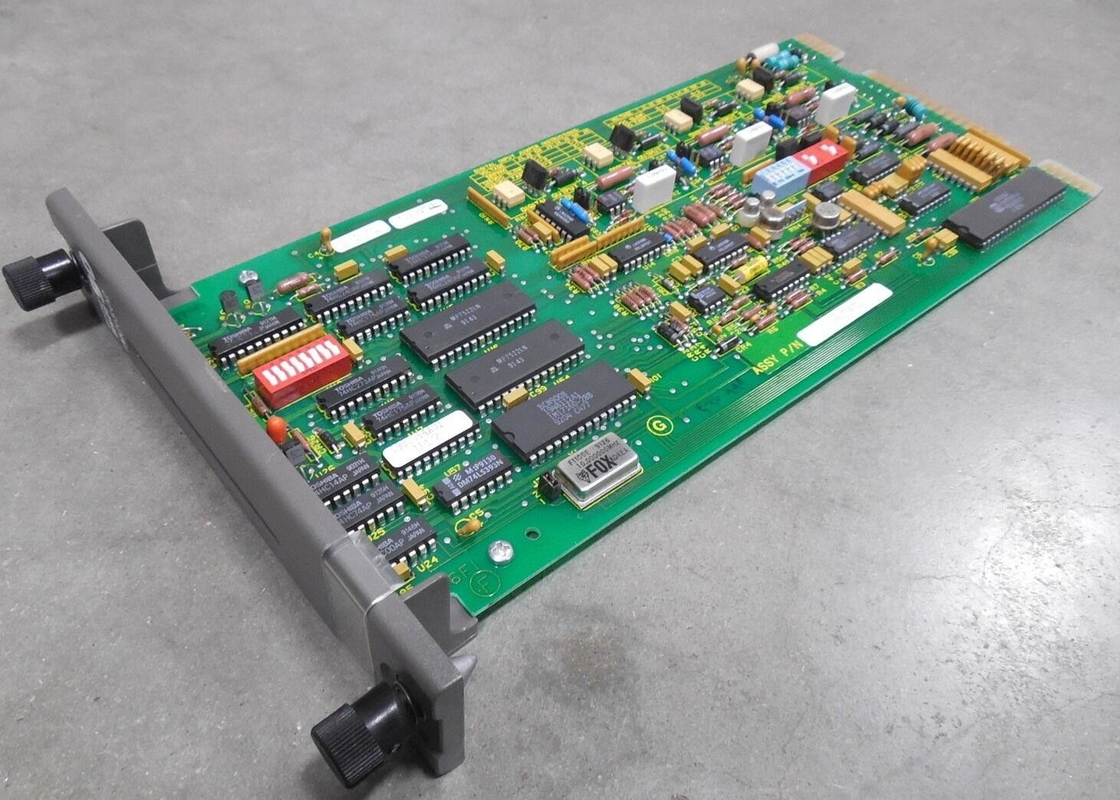

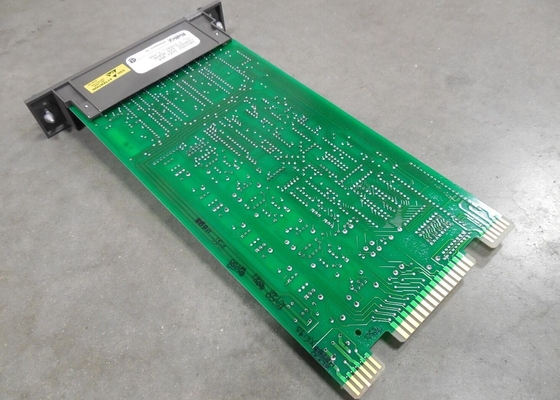

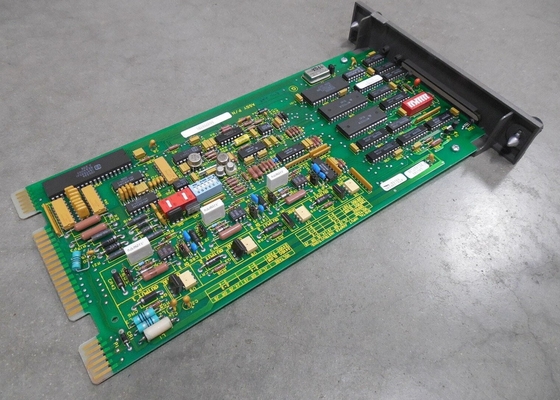

ABB IMFEC12 Analog Input Module For Use With Conventional Transmitters

The ABB IMFEC12 Analog Input Module is engineered to deliver high precision and reliable performance in industrial environments, making it an ideal solution for data-intensive applications that demand accurate signal conversion.

Featuring 8 independent analog input channels, the module supports both voltage and current input types—accommodating a wide range of industrial sensors and transducers. This versatility ensures it can integrate seamlessly with diverse sensing equipment across different automation setups.

With its wide operating temperature range and rugged design, the IMFEC12 maintains stable performance even under fluctuating environmental conditions. This resilience is critical for supporting continuous operation in manufacturing processes and other industrial scenarios where consistency is non-negotiable.

Designed with a compact, lightweight build, the module simplifies integration into existing control systems. This design not only reduces installation time but also lowers associated costs—all without compromising on core functionality or performance.

Backed by ABB’s renowned commitment to quality and reliability, the IMFEC12 Analog Input Module comes with comprehensive technical support and long-term product availability. This provides users with peace of mind, ensuring they have a dependable solution to meet their ongoing automation needs.

Advantages and Features

• High Precision: Equipped with 12-bit resolution and ±0.1% accuracy, the module guarantees reliable signal measurement—critical for applications where data precision directly impacts process outcomes.
• Intelligent Design: An onboard microprocessor and integrated memory enable local data processing and diagnostic functions, reducing reliance on external systems and enhancing troubleshooting efficiency.
• Wide Compatibility: It supports standard analog inputs (both voltage and current) and seamlessly integrates with ABB’s MFP (Multi-Function Processor) and MFC (Multi-Function Controller) modules, ensuring flexibility in system configuration.
• Robust Construction: The module operates efficiently in extreme temperatures (-20°C to +60°C) and can withstand typical industrial vibrations, making it suitable for harsh on-site conditions.
• Easy Integration: Designed for single-slot installation in Module Mounting Units (MMU), it connects to termination units via cables—simplifying setup and minimizing integration complexity.


Application Areas and Case Studies
1,Target Industries

The IMFEC12 is widely applicable across key industrial sectors, including manufacturing, energy, oil & gas, water treatment, and process control.

2,Typical Use Cases

Manufacturing: Enables real-time monitoring of pressure and temperature parameters in production lines, supporting quality control and process optimization.

Energy Sector: Facilitates tracking of analog signals from generators in power plants, ensuring stable power generation and efficient grid management.

3,Case Study
A chemical plant in Germany integrated the IMFEC12 to monitor 15 temperature sensors installed in a reactor. Leveraging the module’s high accuracy, the plant reduced process deviations by 12%—leading to improved product quality and a significant reduction in unplanned downtime.


Competitive Comparison
When compared to similar analog input modules on the market, the IMFEC12 offers three key advantages:

• More Channels: Provides 15 channels, outperforming competitors that typically offer only 8–12 channels.
• Higher Reliability: Boasts an extended operating temperature range (-20°C to +60°C), surpassing the standard range of -10°C to +50°C found in most comparable modules.
• Intelligent Diagnostics: Onboard data processing capabilities reduce dependency on external controllers, enhancing system autonomy and simplifying maintenance.

We still can offer these  Models:

Terms of ABB IMFEC12
1. We ships worldwide and accepts T/T and Paypal.
2. All items are subject to availability and passing our QA testing and inspection.
3. Turnaround Time:
Standard order processing is 1-2 business days plus shipping method chosen.
Rush and off-hours service available for an additional fee.

FAQ of ABB IMFEC12
