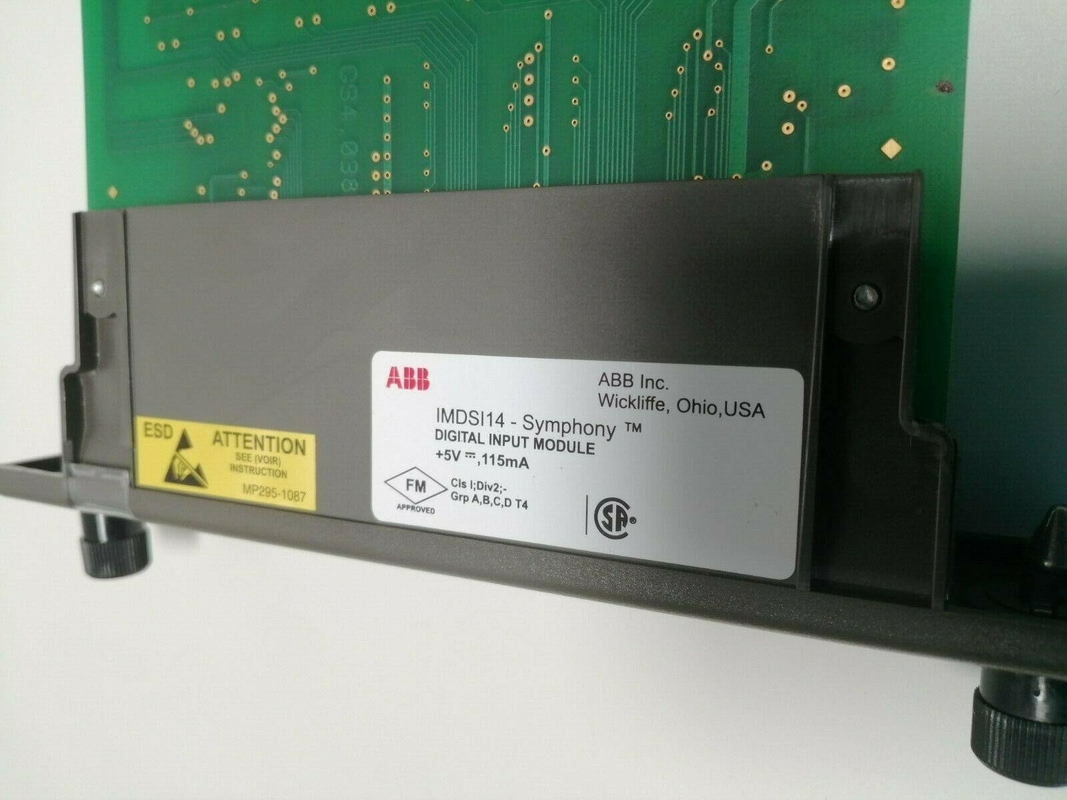

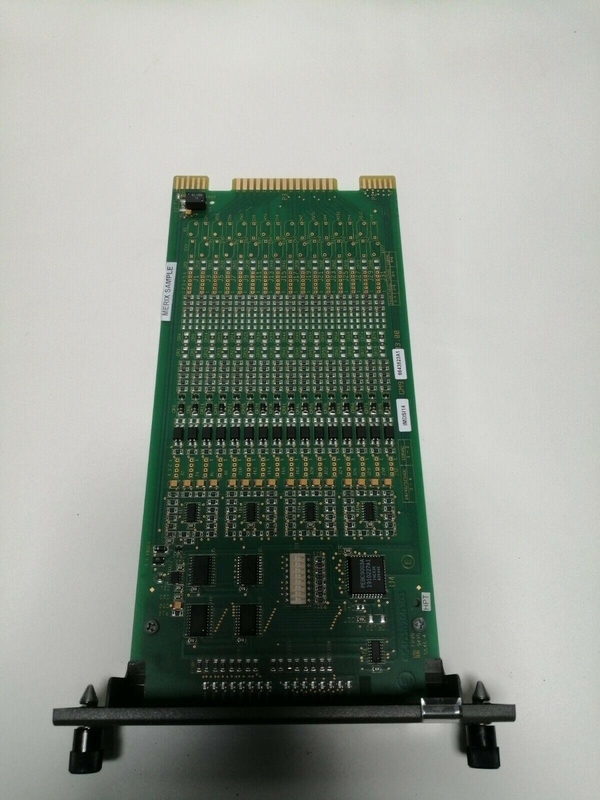

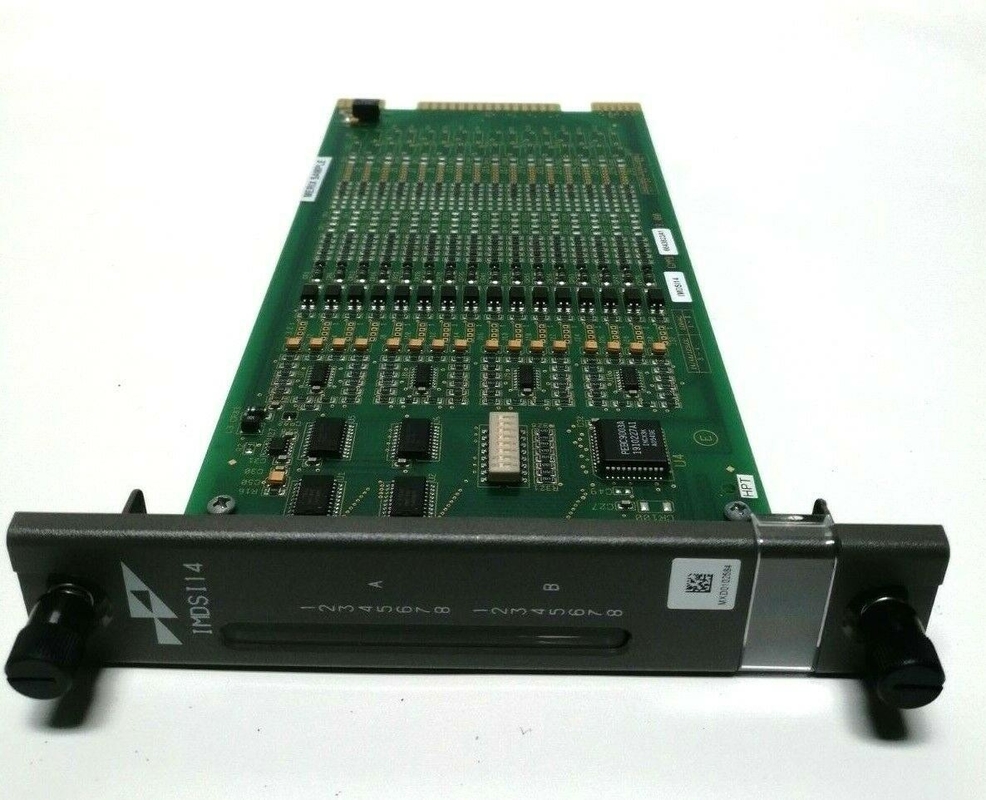

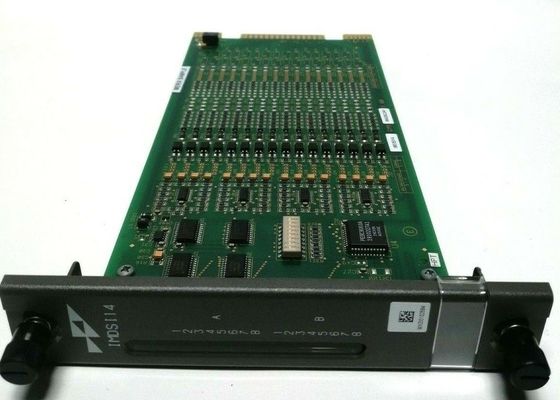

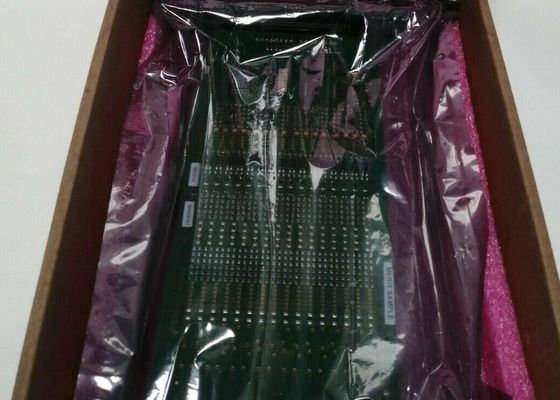

ABB IMDSI14 48VDC Digital Input Module 4.7 MA 10 UA 16 Channels

• Superior Reliability: Boasts 1,500 VDC channel isolation, which safeguards against voltage surges and electromagnetic interference (EMI). This protection ensures consistent, stable operation even in high-noise industrial environments.
• Versatile Configuration: Accommodates both dry contact inputs and DC voltage inputs (48 VDC), offering flexibility to adapt to the diverse requirements of different field devices.
• Modular Design: Facilitates easy replacement and system expansion within INFI 90 setups. This design minimizes downtime during maintenance, as modules can be swapped or added without extensive system disruption.
• Intuitive LED Diagnostics: Front-panel LED indicators deliver real-time visibility into input status and fault conditions, allowing for quick identification of issues and streamlined troubleshooting.
• Broad Temperature Tolerance: Operates reliably across an extreme temperature range of -25°C to +70°C, making it suitable for challenging environments such as outdoor installations or high-temperature industrial settings.

• Oil and Gas Industry: Integrated into pipeline monitoring systems to detect valve positions and pressure alarms. This ensures the safe, efficient operation of pipeline infrastructure by enabling timely response to anomalies.
• Chemical Processing: Deployed in batch reactors to monitor start/stop signals and temperature thresholds. This enhances process consistency by maintaining tight control over critical reaction parameters.
• Power Generation: Used in thermal power plants to monitor generator breaker status and emergency shutdown signals, supporting the safe and stable operation of power generation equipment.
• Water Treatment: Controls pump activation and monitors level sensors in wastewater treatment facilities, ensuring the smooth execution of treatment processes.
• Case Study: A European chemical plant implemented IMDSI14 modules to monitor over 160 field devices across 10 production lines. The system achieved an impressive 99.9% uptime and reduced maintenance costs by 25%, thanks to the module’s real-time fault detection capabilities.

• System Compatibility: For seamless integration, pair the IMDSI14 with INFI 90 controllers (e.g., IMMPC11). For applications requiring lower voltage inputs (24 VDC), opt for the IMDSI12 module instead.
• Environmental Adaptation: Choose IP65-rated variants of the module for outdoor installations or washdown areas, where protection against dust and water ingress is critical.
• Redundancy for Critical Tasks: Implement dual-channel configurations for mission-critical applications (such as offshore oil platforms) to enhance system reliability and minimize downtime risks.
• Budget Optimization: Align the module’s 16-channel density with project requirements to reduce hardware costs—avoid over-provisioning by matching channel count to actual field device needs.

• Wiring Best Practices: Use shielded cables (AWG 22–18) and M12 connectors to minimize signal interference, ensuring accurate data transmission between the module and field devices.
• Proper Grounding: Connect the module’s ground terminal to a dedicated earth ground. This step prevents ground loops, which can cause signal distortion or equipment damage.
• Firmware Updates: Update the module’s firmware via ABB’s INFI 90 Composer software. This allows access to advanced diagnostic features and ensures compatibility with latest system enhancements.
• Safety Precautions: After system shutdown, wait 10 minutes before performing maintenance to allow residual power to dissipate. Additionally, wear ESD (electrostatic discharge) gloves to protect sensitive components from damage.
