Schneider Electric PLC Controller TSX Micro 37 21/22 TSX3722101 Modular Base

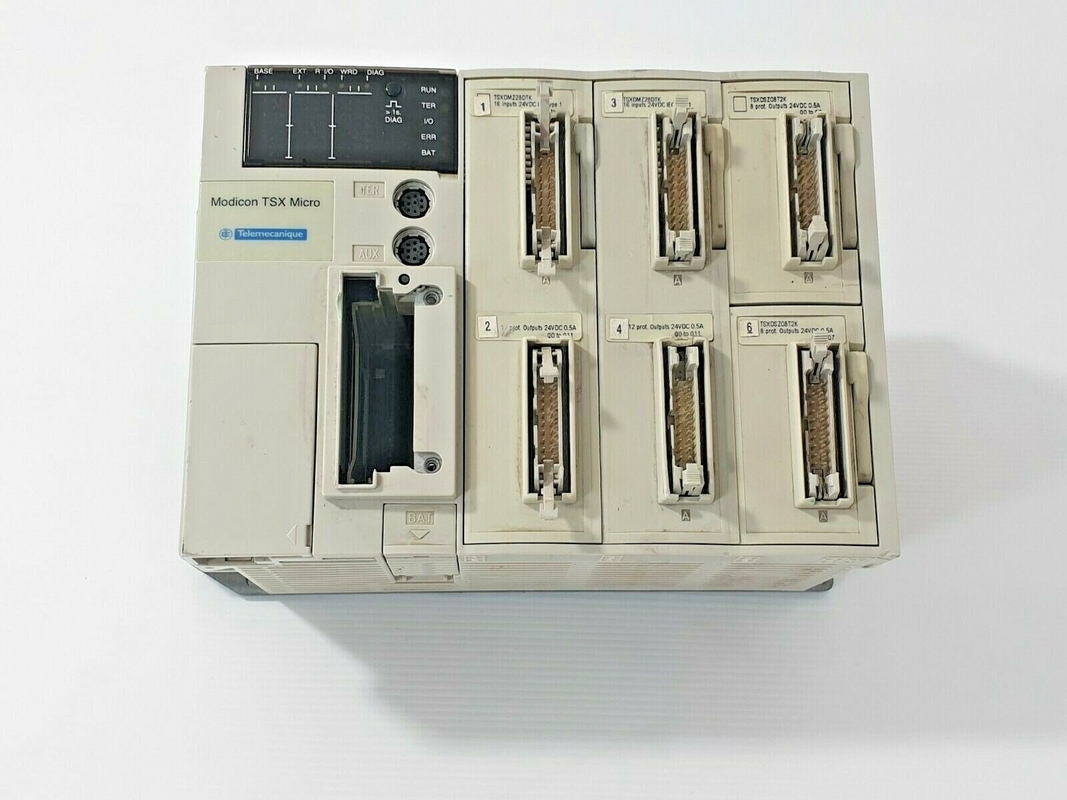

: Large Image : Schneider Electric PLC Controller TSX Micro 37 21/22 TSX3722101 Modular Base

Product Details:

Place of Origin:	FR
Brand Name:	Schneider
Model Number:	TSX3722101

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	2-3 work days
Payment Terms:	T/T, Western Union
Supply Ability:	100

Contact Now

Detailed Product Description

Brand:	Schneider	Model:	TSX3722101
Palce Of Origin:	FR	Type:	Processor/Controller
Marking:	CE	Module Format:	Standard
Series:	Modicon Micro	Weight:	0.3KG
Highlight:	TSX3722101 Electric PLC Controller , Modular base Electric PLC Controller , Schneider Electric PLC Controller

Schneider Electric PLC Configurations TSX Micro 37 21/22 TSX3722101 Modular base controller

Description

Part Number TSX3722101

Manufacturer Schneider Electric

Series Modicon Micro

Model # TSX3722101

Alternate Model TSX-372-210-1

Type PLC

Warranty 2 Year

Electromagnetic compatibility Electrostatic discharge IEC 1000-4-2 level 3

Electromagnetic field immunity test IEC 1000-4-3 level 3

Resistance to fast transient IEC 1000-4-4 level 3

Immunity to impulse waves IEC 1000-4-5

Damped oscillatory wave IEC 1000-4-12

Immunity to electromagnetic interference IEC 61131-2

Range of product Modicon TSX Micro automation platform

Product or component type Modular base controller

Primary voltage 24 V 19.2...30 V DC

Input current 2 mA < 60 A

Immunity to microbreaks < 10 ms

Number of slots 3

Analogue input type 0...10 V 8

Analogue output type 0...10 V 1

Counting input type Discrete incremental counter 1 10 Hz

Incremental 1 10 Hz

Integrated connection type 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s

1 Modbus Modbus RTU 19.2 kbit/s

Realtime clock With

Memory description Internal RAM 20 Kwords data

Internal RAM (with PCMCIA card) 128 Kwords program and data

Internal RAM 128 Kwords data storage

Flash 15 Kwords data

Maximum size of object areas 256 %Mi

1 %MWi internal words

128 %KWi constant words

Execution time for 1 K instruction 5.88 100 % Boolean without PCMCIA card

4 100 % Boolean with PCMCIA card

0.266 65 % Boolean and 35 % numerical with PCMCIA card

Application structure 1 fast task

1 master task

16 event tasks

System overhead 2.3 ms master task

Protection type Overload protection

Short-circuit

Total useful secondary power 16 W
