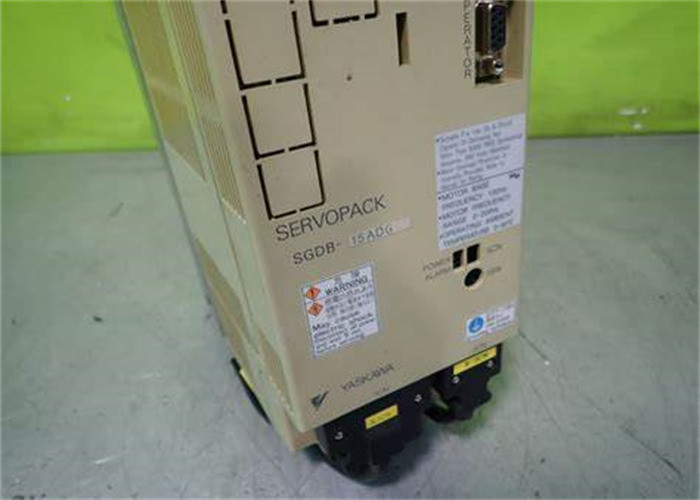

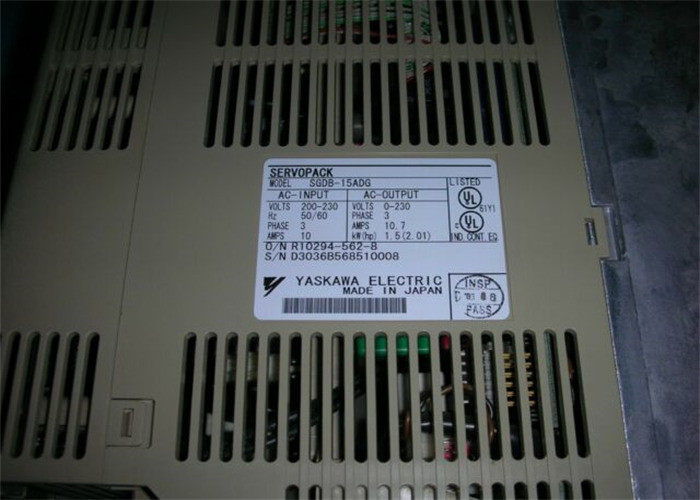

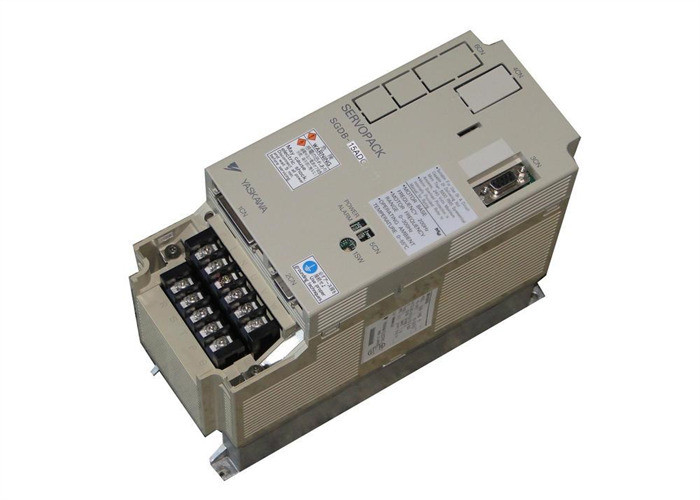

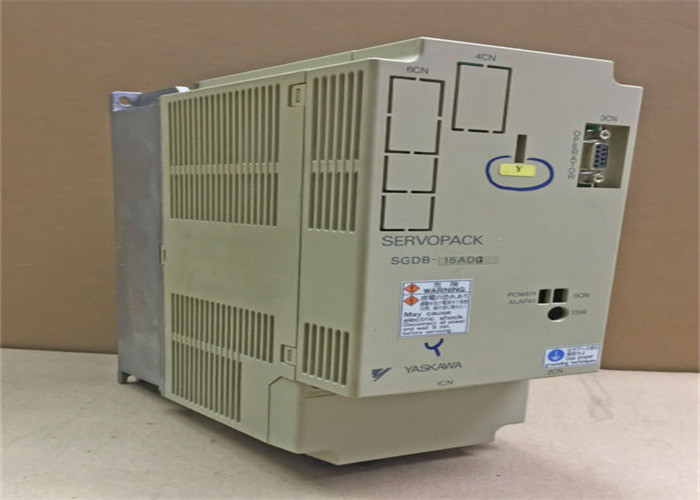

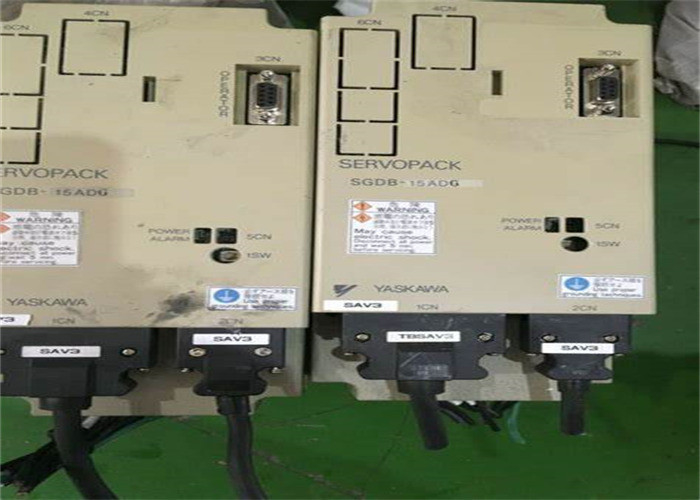

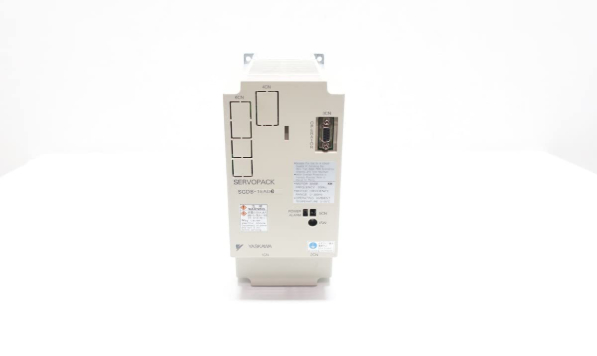

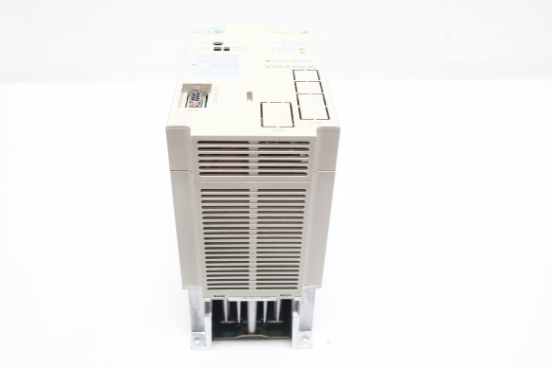

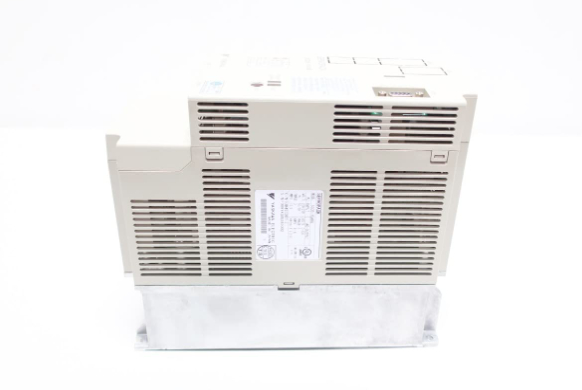

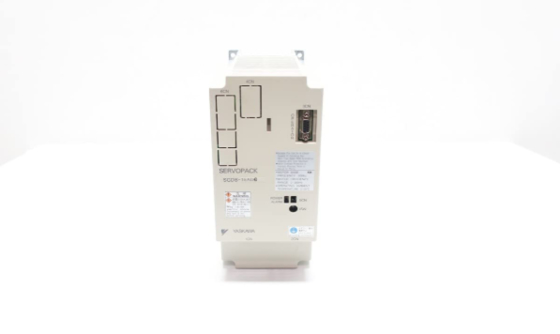

Yaskawa SGDB-15ADG AC SERVO AMPLIFIER 200-230V 10A 1.3KW Position Control

Descriptions Of SGDB-15ADG

Security Module

• Maximum applicable motor capacity: 0.05kW
• Power supply voltage: Three-phase AC 200V
• Interface: MECHATROLINK-III communication command type (for rotary servo motors)
• Design sequence: B
• Hardware specification: Base mounting type (standard)
• Matching (software): No matching (standard) – refer to SGD7S-2R8A20A datasheet PDF catalog
• Matching (parameters): No matching (standard) – refer to SGD7S-2R8A20A
• Optional Module: Security Module
• European EC standards: Compliant with the integrated mechanical directive standard ISO 13849-1 EN, and equipped with safety functions specified in the individual standard IEC 61800-5-2.

When combined with the SGDV servo unit, it enables optimal safety design for mechanical systems.
Suitable for AC servo drives, featuring the following safety functions specified in the international standard IEC 61800-5-2 (a first in Japan) – refer to SGD7S-2R8A20A datasheet PDF catalog.
Facilitates easy implementation of optimal safety designs for mechanical systems.

Safety Functions:

• Torque Off Safe (STO)
• Stop Safe 1 (SS1)
• Stop Safe 2 (SS2)
• Limited Speed Safely (SLS)

Equipped with 2 safety functions that can be set (assigned). Additionally, items such as monitoring time can be adjusted via parameters – refer to SGD7S-2R8A20A datasheet PDF catalog.
Using a servo unit with an integrated security module simplifies and miniaturizes the system.

SGMCS Small-Capacity Direct Drive Servo Motor

• Rated torque: 17N·m
• Servo motor outer diameter: 290mm
• Serial encoder: 20-bit absolute type (1-circle absolute value) (standard)
• Design sequence: E model (denoting the outer diameter size of the servo motor)
• Flange specifications: Face C, reverse load side (lead)
• Optional specifications: No matching

Directly drives loads without a speed reducer.
Enables smooth operation from low to high speeds (instantaneous maximum torque: 6 ~ 600N·m; maximum speed: 250 ~ 500r/min).

High precision is achieved via a 20-bit high-resolution encoder.
Features a hollow structure for easy wiring and piping.

Application Examples:

• Semiconductor manufacturing equipment
• LCD circuit board manufacturing equipment
• Various inspection and testing equipment
• Electronic component packaging machines
• IC information processors
• IC inspection equipment
• Various automated machinery
• Robots

Small-Capacity Ratings and Specifications:

• Rated time: Continuous
• Vibration level: V15
• Insulation resistance: ≥10MΩ at DC 500V
• Operating ambient temperature: 0 ~ 40°C
• Excitation type: Permanent magnet
• Installation method: Flange type
• Heat resistance class: A
• Insulation withstand voltage: AC 1500V for 1 minute – refer to SGD7S-2R8A20A datasheet PDF catalog
• Protection class: Fully enclosed, self-cooling (IP42, excluding the rotating part of the output shaft)
• Operating ambient humidity: 20 ~ 80% RH (non-condensing) – refer to SGD7S-2R8A20A datasheet PDF catalog
• Connection method: Direct connection
• Rotation direction: Counterclockwise (CCW) when viewed from the load side
