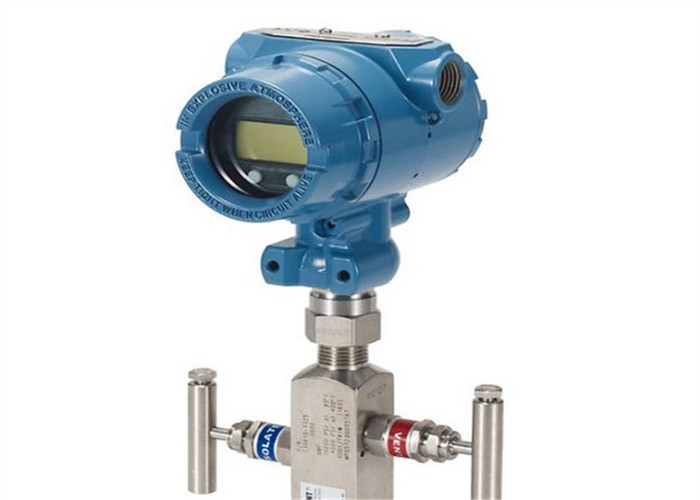

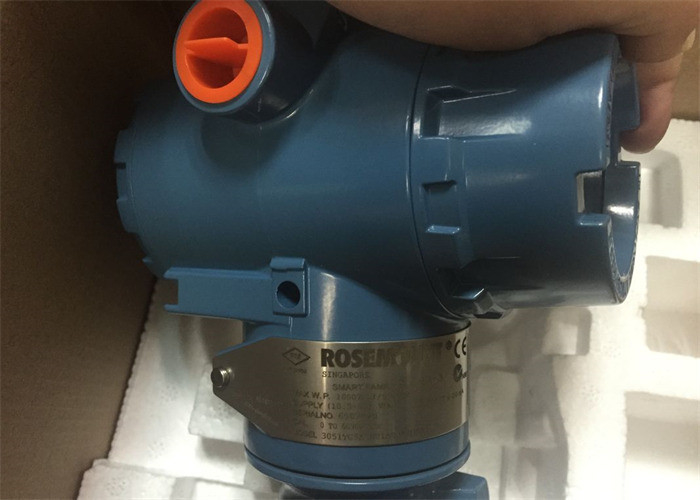

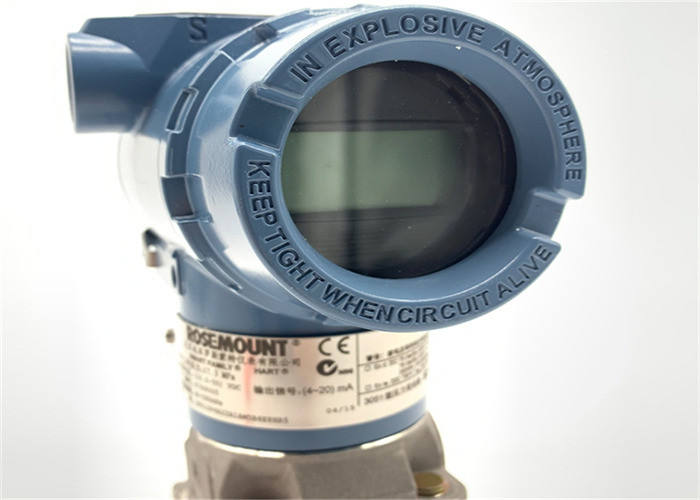

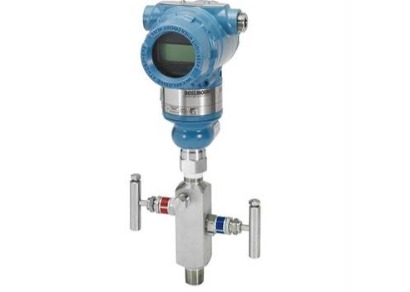

Rosemount 3051T In-Line Gage Pressure Transmitter 3051TG5A2B21A 14.7 To 10000 Psi

The Rosemount 3051 In-Line Pressure Transmitter boasts a span accuracy of 0.04% and is specifically engineered to deliver 10 years of stable performance in installed conditions. It provides all the essential data needed for process monitoring, control, and operation, making it an industry-leading, reliable choice for pressure and level measurement applications. This in-line transmitter comes equipped with features like power advisory diagnostics and a wide turndown range, which cater to diverse pressure measurement needs and make it suitable for safety installations.

Output:

• 4-20 mA with HART Protocol-based digital signal
• Low-power 1-5 V dc with HART Protocol-based digital signal
• Optional low-power 0.8-3.2 V dc with HART Protocol-based digital signal

Accuracy:

• Ranges 1-4: ±0.04% of span
• Range 5: ±0.075% of span

Power Requirements:

• 4-20 mA: 10.5-42.4 V dc (no load)
• Low-power: 6-12 V dc (no load)

Mounting:

• Coplanar and traditional flanges

Adapters:

• Cadmium-plated and nickel-plated carbon steel, 316 stainless steel

Measurement Range:

• 0-0.3 to 0-10,000 psig

Materials:

• Sensor wetted parts: Stainless steel, Hastelloy, Monel, Tantalum
• Sensor fill fluid: Silicone, inert halocarbon

Features:

• Calibrated spans from 0.3 to 10,000 psi
• Total performance of ±0.15%
• Unrivaled dynamic performance
• Optional PlantWeb functionality to enhance plant productivity
• Responds up to eight times faster than conventional pressure transmitters
