Product Details:
Payment & Shipping Terms:
|
| Price: | Contact Us | Country Of Origin: | Singapore |
|---|---|---|---|
| Deliver Time: | 3-5 Working Day | Warranty: | One Year |
| Brand: | Rosemount | Quality: | Seal Original Package |
| Shipping Term: | DHL / FEDEX /UPS/TNT | MOQ: | 1 Piece |
| Payment Term: | T/T, Western Union,paypal | Model: | 3051CG1A02A1AB1H2L4M5 |
| Type: | Differential Pressure Transmitter |

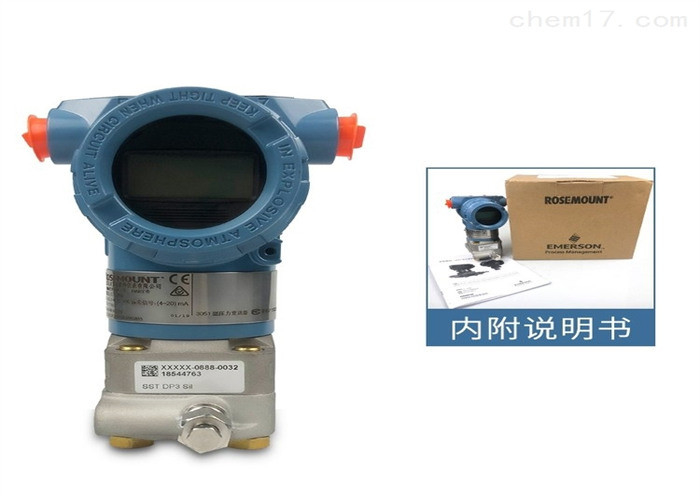

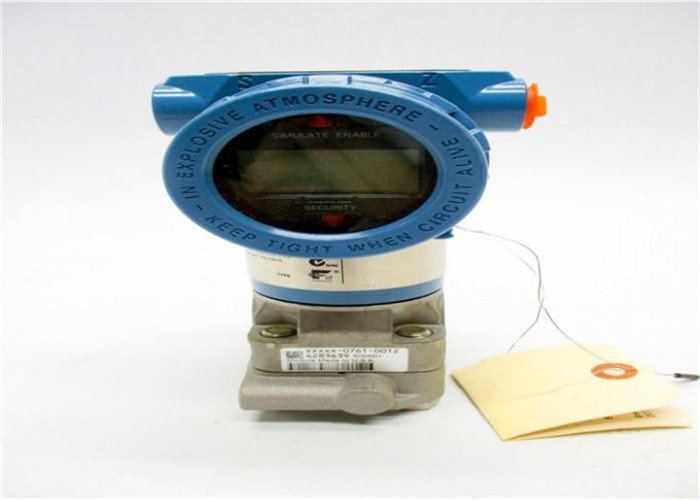

Description of Rosemount Coplanar Gage Pressure Transmitter 3051CG1A02A1AB1H2L4M5 -62,16 to 62,16 mbar
Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for Differential,Gage, and Absolute pressure measurement.

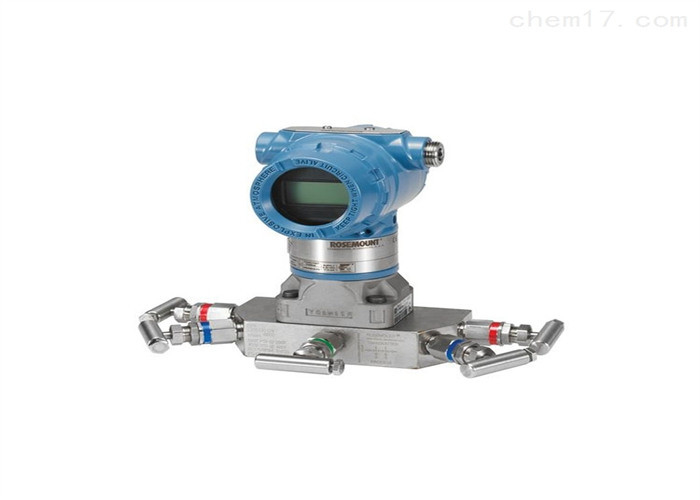

The Coplanar Platform enables seamless integration with manifolds, flow and level solutions. Capabilities include:
Power Advisory can proactively detect degraded electrical loop integrity issues (Option Code DA0)
Local Operator Interface with straightforward menus and built-in configuration buttons (Option Code M4)
Safety Certification (Option Code QT)
3051C Coplanar Pressure Transmitters Ordering Information
The Standard offering represents the most common options. The starred options (H) should be selected for best delivery.
The Expanded offering is subject to additional delivery lead time.
Specifications:
| Rangedown | Up to 150:1 |
| Communication Protocol | 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART |
| Measurement Range | Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute |
| Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST |
| Diagnostics | Basic Diagnostics, Power Advisory Diagnostics |
| Certifications/Approval | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications |
If you need more order information , we can send you the complete datasheet.
Certifications:
1. Certificate of Origin
2. Calibration Certificate
3. Material Traceability Certification
Rosemount 3051CG Series Gauge Pressure Transmitter
Industry best total performance, a flexible Coplanar platform, and installed five-year stability has made Rosemount 3051 the standard for Differential, Gage, and Absolute pressure measurement.
The 3051 Series SMART® Gauge Pressure Transmitters are offered in a variety of configurations for differential, gauge, liquid-level, flow and specific gravity measurement applications.
Output
4-20 mA with digital signal based on HART Protocol
Low Power, 1-5 V dc with digital signal based on HART Protocol
Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional
Range
0-8.3 in H2O to 2000 psig
Accuracy
2-5: +/-0.075% of span
Power
4-20 mA: 10.5-55 V dc with no load
Low Power: 6-12 V dc with no load
Materials
Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum
Fluid
Sensor fill fluid: Silicone, Inert (Halocarbon)
Mounting
Coplanar and Traditional flanges
Adapters: Cadmium and Nickel-plated CS, 316 SST
Rosemount 3051CG Gage pressure transmitter
3051CG1A02A1AB1H2L4M5
3051CG2A02A1AB1H2L4M5
3051CG3A02A1AB1H2L4M5
3051CG4A02A1AB1H2L4M5
3051CG5A02A1AB1H2L4M5
3051CG1A02A1AB3H2L4M5
3051CG2A02A1AB3H2L4M5
3051CG3A02A1AB3H2L4M5
3051CG4A02A1AB3H2L4M5
3051CG5A02A1AB3H2L4M5
3051CG1A02A1AB1H2L4M5K5
3051CG2A02A1AB1H2L4M5K5
3051CG3A02A1AB1H2L4M5K5
3051CG4A02A1AB1H2L4M5K5
3051CG5A02A1AB1H2L4M5K5
3051CG1A02A1AB1H2L4M5E5
3051CG2A02A1AB1H2L4M5E5
3051CG3A02A1AB1H2L4M5E5
3051CG4A02A1AB1H2L4M5E5
3051CG5A02A1AB1H2L4M5E5
3051CG1A02A1AB1H2L4M5I5
3051CG2A02A1AB1H2L4M5I5
3051CG3A02A1AB1H2L4M5I5
3051CG4A02A1AB1H2L4M5I5
3051CG5A02A1AB1H2L4M5I5
3051CG1A02A1AB3H2L4M5K5
3051CG2A02A1AB3H2L4M5K5
3051CG3A02A1AB3H2L4M5K5
3051CG4A02A1AB3H2L4M5K5
3051CG5A02A1AB3H2L4M5K5
3051CG1A02A1AB3H2L4M5E5
3051CG2A02A1AB3H2L4M5E5
3051CG3A02A1AB3H2L4M5E5
3051CG4A02A1AB3H2L4M5E5
3051CG5A02A1AB3H2L4M5E5
3051CG1A02A1AB3H2L4M5I5
3051CG2A02A1AB3H2L4M5I5
3051CG3A02A1AB3H2L4M5I5
3051CG4A02A1AB3H2L4M5I5
3051CG5A02A1AB3H2L4M5I5
3051CG1A22A1AB4M5
3051CG2A22A1AB4M5
3051CG3A22A1AB4M5
3051CG4A22A1AB4M5
3051CG5A22A1AB4M5
3051CG1A22A1AB4M5DF
3051CG2A22A1AB4M5DF
3051CG3A22A1AB4M5DF
3051CG4A22A1AB4M5DF
3051CG5A22A1AB4M5DF
3051CG1A22A1AB4M5K5
3051CG2A22A1AB4M5K5
3051CG3A22A1AB4M5K5
3051CG4A22A1AB4M5K5
3051CG5A22A1AB4M5K5
3051CG1A22A1AB4M5E5
3051CG2A22A1AB4M5E5
3051CG3A22A1AB4M5E5
3051CG4A22A1AB4M5E5
3051CG5A22A1AB4M5E5
3051CG1A22A1AB4M5I5
3051CG2A22A1AB4M5I5
3051CG3A22A1AB4M5I5
3051CG4A22A1AB4M5I5
3051CG5A22A1AB4M5I5
