Product Details:
Payment & Shipping Terms:
|
| Brand: | ABB | Model Number: | DI810 3BSE008508R1 |
|---|---|---|---|
| Country Of Origin: | India (IN) | Warranty: | 1 Years |
| Deliver Time: | 3 -5working Day | Color: | White/Black/Grey |
| Price: | Consult Customer Service | Product Net Weight: | 0.2 Kg |
| Highlight: | ABB DI810 Digital Input Module,24V Digital Input Module,3BSE008508R1 Digital I O Module |
||

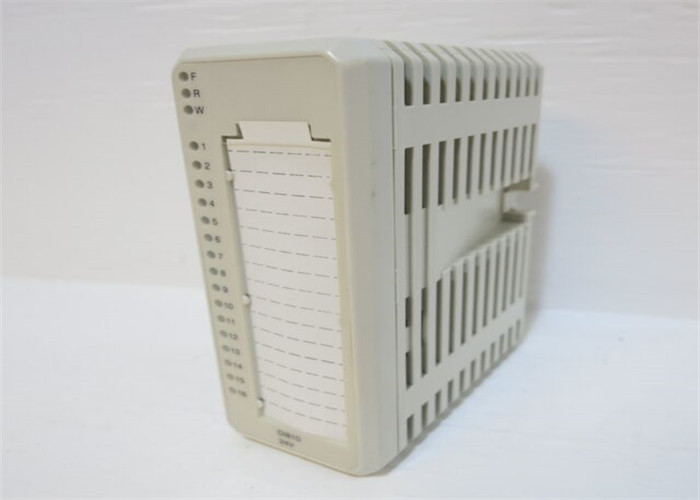

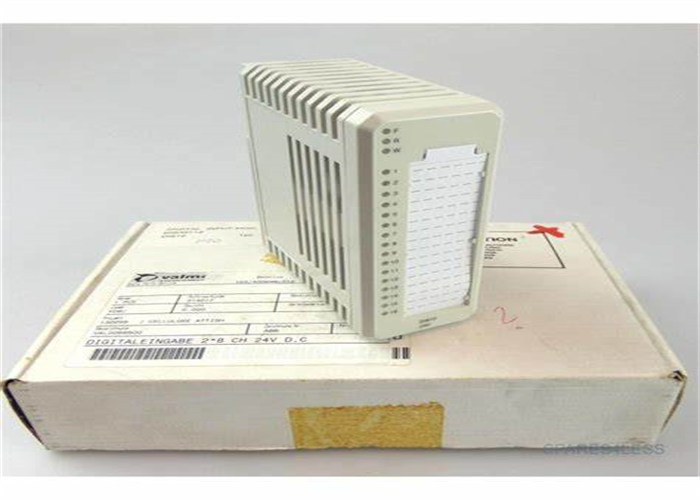

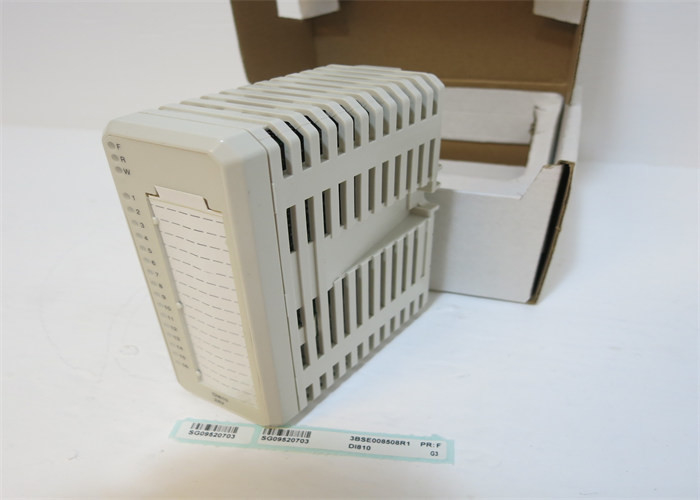

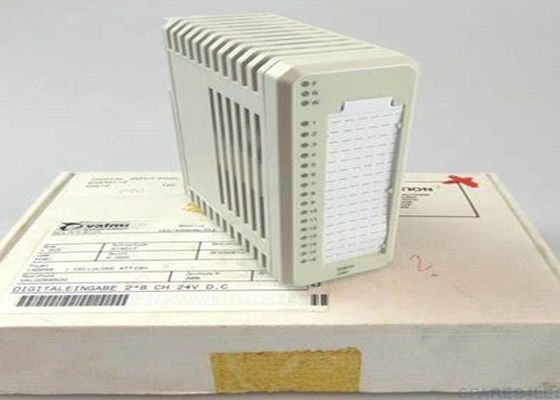

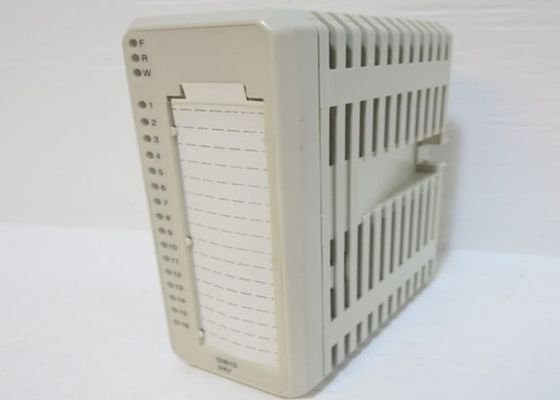

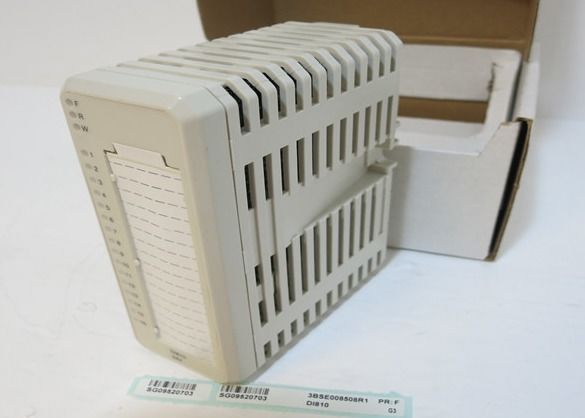

ABB DI810 3BSE008508R1 S800 I/O Digital Input Module 24V 16 ch
Quick Detail
3BSE008508R1
DI810
DI810 Digital Input 24V 16 ch
Digital Input Module
I-O Module
Isolated in two groups of 8 channels
Technical Information
|
Model Number |
DI810 3BSE008508R1 |
|
Brand |
ABB |
|
Place of Origin |
India (IN) |
|
Technical Information |
DI810 Digital Input 24V d.c. 2x8 ch. Rated isolation 50V. Use Module Termination Unit TU810,TU812, TU814, TU830, TU838. |
|
Product Type |
I-O_Module |
|
Customs Tariff Number |
85389091 |
|
Dimensions |
15*8*15cm |
|
N.W |
0.25kg |
|
Technical Number of Channels |
16 |
|
Channel Type |
DI |
|
Number of Input Channels |
16 |
|
RoHS Status |
Following EU Directive 2011/65/EU |
|
Quality |
100% New Original |
|
Stock |
In stock |
|
Delivery time |
3-5 Days after received payment |
|
Service |
After-sales Service |
|
Guarantee |
1 year |
|
Shipping term |
DHL / FEDEX/ EMS /UPS/TNT |
|
MOQ |
1 Piece |
|
Payment Term |
T/T Western Union |
S800 remote I/O for Freelance
A comprehensive, distributed and modular process I/O system that communicates with Freelance controllers via PROFIBUS.
S800 I/O features include:
Installation in the field, close to sensors and actuators, thus reducing cost of cabling
Modules can be exchanged and reconfigured during operation
For harsh environments, the I/O modules are compliant to G3 severity level
Comprehensive coverage of functions
See the table under Technical Data for available modules for the Freelance distributed control system.
|
Digital Input Modules |
Description |
|
DI810 |
16 ch., 2 groups of 8 ch., 24 V d.c., current sink |
|
DI811 |
16 ch., 2 groups of 8 ch., 48 V d.c., current sink |
|
DI814 |
16 ch., 2 groups of 8 ch., 24 V d.c., current source |
|
DI818 |
32 ch., 2 groups of 16 ch., 24 V d.c., current sink |
|
DI820 |
8 ch., separate returns, 110 V d.c., 120 V a.c. |
|
DI821 |
8 ch., separate returns, 220 V d.c., 230 V a.c. |
|
DI828 |
16 ch., separate returns, 110 V d.c., 120 V a.c / d.c. |
|
DI840 |
16 ch., 1 group of 16 ch., 24 V d.c., current sink, extended diagnostics, transmitter power supply |
|
DI890 |
8 ch., separate returns, 24 V d.c., current sink. |
|
Digital Ouput Modules |
Description |
|
DO810 |
16 ch., 2 groups of 8 ch., 24 V d.c., max 0.5 A, transistor, current source, short-circuit-proof |
|
DO814 |
16 ch., 2 groups of 8 ch., 24 V d.c., max 0.5 A, transistor, current sink, short-circuit-proof |
|
DO815 |
8 ch., 2 groups of 4 ch., 24 V d.c., max 2 A, transistor, current source, short-circuit-proof |
|
DO818 |
32 ch., 2 groups of 16 ch., 24 V d.c., max 0.5 A, transistor, current source, short-circuit-proof |
|
DO820 |
8 ch., separate returns, 5-250 V, max 3 A a.c./d.c., relay (N.O.) |
|
DO821 |
8 ch., separate returns, 5-250 V, max 3 A a.c./d.c., relay (N.C.) |
|
DO828 |
16 ch., separate returns, 5-250V a.c. / 5-125V d.c. max 2A a.c./d.c., relay (N.C.) |
|
DO840 |
16 ch., 1 group of 16 ch., 24 V d.c., max. 0,5 A, current source, short-circuit-proof, extended diagnostics |
|
DO890 |
4 ch., separate returns, 11 V 40 mA, load 150-5000 Ohms, current source, short circuit-proof |
|
Analog Input Modules |
Description |
|
AI810 |
8 ch., 1 group of 8 ch., single ended with common return, 0(4)-20 mA, 0(2)-10 V, 12 bits |
|
AI815 |
8 ch., 1 group of 8 ch., single ended with common return, 0(4)-20 mA 0(1)-5 V, 12 bits, HART interface, |
|
AI820 |
4 ch., 1 group of 4 ch., bipolar differential, ±0(1)-5 V, ±0(2)-10 V, ±0(4)-20 mA, 14 bits + sign |
|
AI825 |
4 ch., separate returns, isolated bipolar, ±0(2)-10 V, ±0(4)-20 mA, 14 bits + sign |
|
AI830A |
8 ch., 1 group of 8 ch., Pt100, Ni100, Ni120, Cu10, resistor 0-400 Ohms, 14 bits, 3-wire |
|
AI835A |
8 ch., (7+ ref. junction), 1 group of 8 ch., TC types B, C, D, E, J, K, L, N, R, S, T, U, -30…75 mV, 15 bits |
|
AI843 |
8 ch. + ref. junction, 1 group of 8 ch., TC types: B, C, E, J, K, L, N, R, S, T, U, -30…75 mV, 16 bits, extended diagnostics |
|
AI845 |
8 ch., 1 group of 8 ch., single ended with common return, 0(4)-20 mA 0(1)-5 V, 12 bits, extended diagnostics, |
|
AI890 |
8 ch., 1 group of 8 ch., single ended with common return, 0(4)-20 mA, 12 bits, transmitter power supply |
|
AI893 |
8 ch. (7 + ref. junction), 1 group of 8 ch., TC types B, C, E, J, K, L, N, R, S, T, U, 10…80 mV. RTD: Pt50-1000, Ni100-500, Cu10-100, resistor 0-4000 Ohms, 3-wire. 15 bits + sign |
|
AI895 |
8 ch., 1 group of 8 ch., single ended with common return, 4-20 mA, 12 bits, HART interface, transmitter power supply |
|
Analog Output Modules |
Description |
|
AO810V2 |
8 ch., 1 group of 8 ch., 0(4)-20 mA, 14 bits, load: max 850 Ohms (short-circuit-proof) |
|
AO815 |
8 ch., 1 group of 8 ch., 4..20 mA, 12 bit, load: max 750 Ohms (short-circuit-proof ), HART interface |
|
AO820 |
4 ch., separate returns, isolated bipolar, +-0(2)-10 V, +-0(4)-20 mA, 12 bits + sign, load: max 550 Ohms (current) / ≥2 kOhms (voltage), short-circuit-proof |
|
AO845A |
8 ch., 1 group of 8 ch., 4-20 mA, 12 bit, load: max 750 Ω (short-circuit-proof) extended diagnostics, HART interface |
|
AO890 |
8 ch., 1 group of 8 ch., 0(4)-20 mA, 12 bits, load: max 725 Ohms (short-circuit-proof) |
|
AO895 |
8 ch., 1 group of 8 ch., 4-20 mA, 12 bits, HART interface, load: max 725 Ohms (short-circuit-proof) |
