Honeywell CC-TAOX01 Analog Output Module Non Redundant Coated 4-20 MA

Description of  Honeywell CC-TAOX01 OUTPUT IOTA BOARD ANALOG 4-20 MA I/O Module

Quick Details:

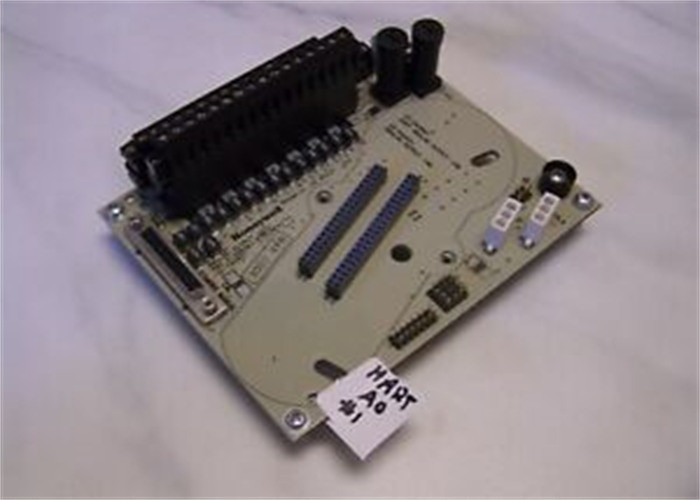

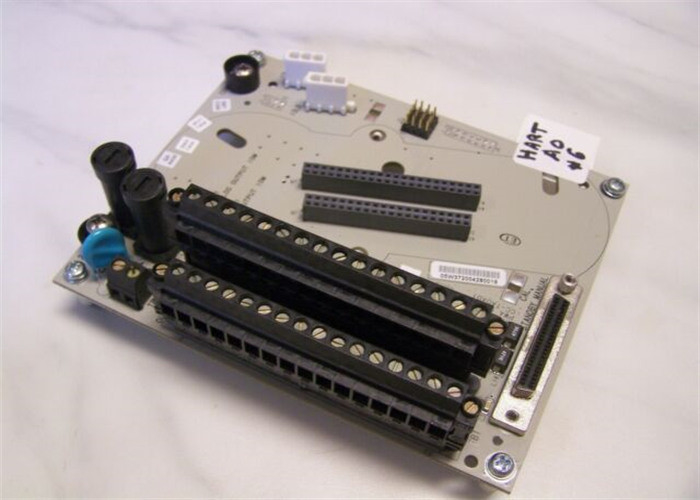

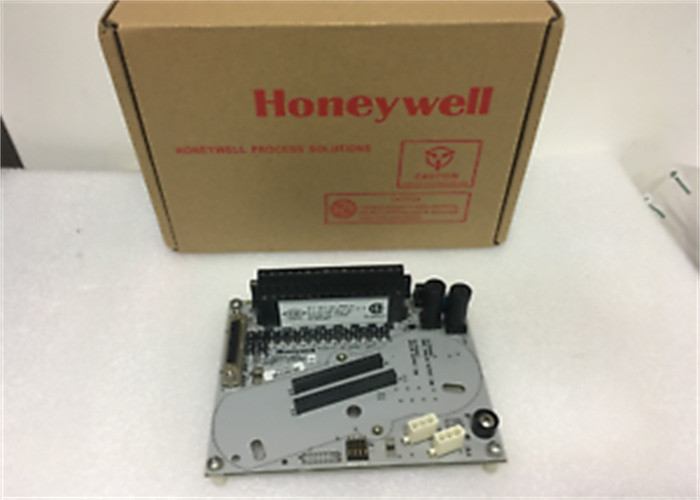

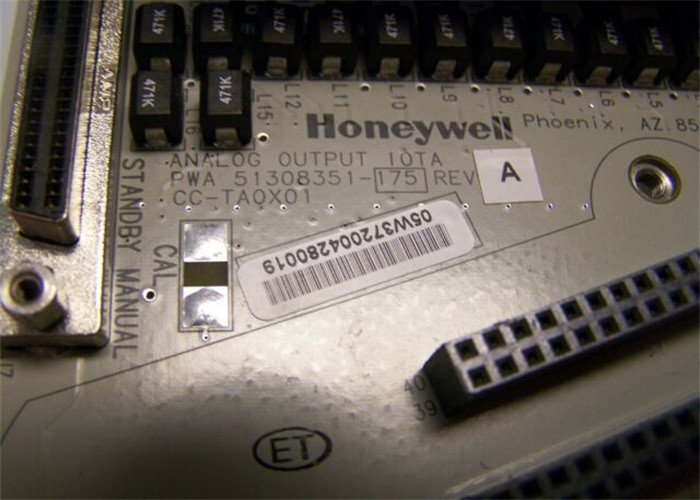

The CC-TAOX01 is a non-redundant I/O Terminal Adapter (IOTA) designed for the Experion Series-C Analog Output Module. It delivers a reliable interface for connecting to field devices, enabling precise control of analog output signals within process control systems.

Features:

• Supports 4-20 mA analog output with the HART protocol.
• Equipped with open-wire detection for fault indication.
• Allows configurable safe-state behavior (FAILOPT) per channel: either HOLD LAST VALUE or SHED to SAFE VALUE.
• Features non-incendive output, making it suitable for use in hazardous areas.
• Includes output read-back functionality and alarm triggering upon discrepancies for verification purposes.
• Boasts a compact, non-redundant design, providing cost-effective solutions.

Technical Specifications:

• Output Type: 4-20 mA
• Channels: 8
• Output Ripple: <100 mV peak-to-peak at power line frequency, across a 250 Ω load
• Output Temperature Drift: 0.005% of Full Scale/°C
• Output Readback Accuracy: ±4% of Full Scale
• Output Current Linearity: ±0.05% of Full Scale (nominal)
• Resolution: ±0.05% of Full Scale
• Calibrated Accuracy: ±0.35% of Full Scale (at 25°C), including linearity
• Directly Settable Output Current Range: 0 mA, 2.9 mA to 21.1 mA
• Maximum Resistive Load (with 24V supply = 22VDC to 28 VDC): 800 ohms
• Maximum Output Compliant Voltage (with 24V supply = 22VDC to 28 VDC): 16 V

•
