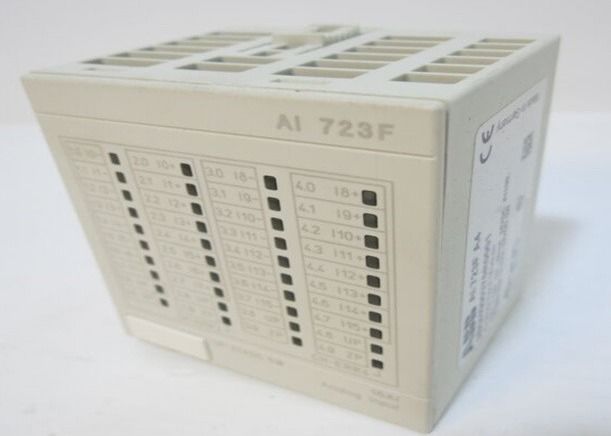

AI723F ABB Digital Analog Input Module 3BDH000376R0001 A 16 Channel

I. General Information

• Product ID: 3BDH000376R0001
• ABB Type Designation: AI 723F Rev. A
• Product Category: I-O_Module
• Catalog Overview: The AI 723F is a high-versatility analog input module engineered for industrial automation systems, featuring configurable channels to support multiple measurement types and seamless integration with various control architectures.

II. Core Functionality & Configuration

At the heart of the AI 723F module lies its 16 input channels, which are divided into two distinct groups. A key advantage of this module is that each channel can be individually configured to match specific application requirements, eliminating the need for additional specialized modules and enhancing system flexibility.

The module supports a wide range of measurement and input types, including:

• Voltage sensing: 0…10 V DC or -10…+10 V DC
• Current sensing: 0…20 mA or 4…20 mA
• Temperature measurement: Compatible with platinum (Pt100, Pt1000) and nickel (Ni1000) resistance thermometers, supporting both 2-wire and 3-wire configurations
• Digital input functionality: Configurable as digital inputs when required

In terms of electrical isolation, the module’s input circuits are electrically isolated from the rest of the module’s electronic components, ensuring protection against interference. It should be noted that there is no potential isolation between individual channels within the module.

III. Compatibility & Application Scope

The AI 723F is designed for flexible deployment across different industrial control setups, with compatibility including:

• PROFIBUS remote I/O systems (functioning as a PROFIBUS Slave)
• Direct I/O integration with ABB AC 700F and AC 900F controllers
• Requires pairing with TU 715 F or TU 716F terminal units for optimal operation

Its multi-functional design makes it suitable for diverse industrial scenarios where accurate measurement and collection of analog signals (voltage, current, temperature) are critical for process control and monitoring.

IV. Technical & Physical Specifications

4.1 Electrical Performance

• Channel Type: Analog Input (AI)
• Total Input Channels: 16
• Resolution: 12 Bit + sign
• Supported Input Signals: ±10 V, 0/4–20 mA, 24 VDC, Pt100, Pt1000, Ni1000

4.2 Physical Dimensions & Weight

• Net Depth/Length: 54 mm
• Net Height: 76 mm
• Net Width: 67.5 mm
• Net Weight: 0.15 kg

4.3 Ordering & Customs Information

• HS Code: 853890 (Electrical machinery and equipment parts; parts for apparatus of headings 8535, 8536, or 8537;
• Customs Tariff Number: 85389099

V. Environmental Compliance

• RoHS Compliance: Adheres to EU Directive 2011/65/EU and its Amendment 2015/863 (dated July 22, 2019)
• WEEE Category: Category 5 – Small Equipment (no external dimension exceeding 50 cm)
