DC722F 3BDH000372R0001 ABB Digital Analog I O Module AX 722F

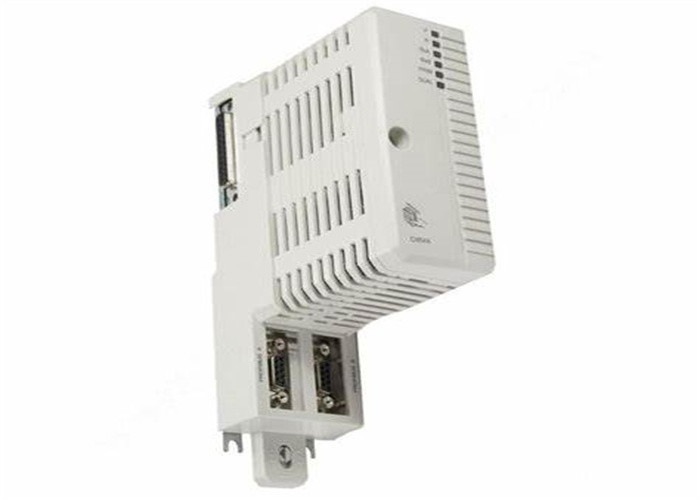

: Large Image : DC722F 3BDH000372R0001 ABB Digital Analog I O Module AX 722F

Product Details:

Place of Origin:	USA
Brand Name:	ABB
Certification:	CE
Model Number:	DC722F 3BDH000372R0001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	New Original Box
Delivery Time:	3-5 working day
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Brand:	ABB	Model:	DC722F 3BDH000372R0001
Country Of Origin:	USA	Type:	L/O Module
Warranty:	1 Years	Dimensions:	302020cm
N.W:	1kg	Customs Tariff Number:	85389091
Highlight:	DC 722F Analog I O Module , AX 722F Digital Analog I O Module

DC722F 3BDH000372R0001 ABB Digital Analog I O Module AX 722F

AX 722F Analog Input/Output Module
Long Description
The AX 722F analog input/output module provides enhanced flexibility by integrating 16 analog input and output channels into a single unit.
Eight of these channels can be individually set up as analog inputs, capable of detecting voltage, current, or temperatures. Additionally, four channels can be configured as either analog voltage outputs (-10 V to +10 V) or analog current outputs (0 … 20 mA or 4 … 20 mA), while the remaining four channels deliver voltage signals ranging from -10 V to +10 V.
The module’s inputs and outputs are electrically isolated from its other electronic components, though there is no potential separation between the channels themselves.
This module is compatible with PROFIBUS remote I/O as well as AC 700F / AC 900F direct I/O systems.

Additional Information

Medium Description: Designed for PROFIBUS Slave and direct I/O applications. A 16-channel analog input/output module featuring:
8 AI (Analog Inputs): ±10 V, 0/4-20 mA, RTD, 24 VDC
4 AO (Analog Outputs): 0..+10 V, ±10 V, 0/4-20 mA
4 AO (Analog Outputs): ±10 V
12 Bit + sign, 2-wire, 24 VDC 5 W
Compatible with TU 715F / TU 716F

Technical Information:

8 AI: ±10 V, 0/4-20 mA, RTD, 24 VDC
8 AO: ±10 V, 0/4-20 mA
12 Bit + sign, 2-wire, 24 VDC 5 W
For use with TU 715F / TU 716F
Product Type: I-O_Module

Ordering

HS Code: 853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37
Customs Tariff Number: 85389091

Dimensions

Product Net Depth / Length: 54 mm
Product Net Height: 76 mm
Product Net Width: 67.5 mm
Product Net Weight: 0.13 kg

Environmental

RoHS Status: Not RoHS Compliant
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
