Product Introduction​

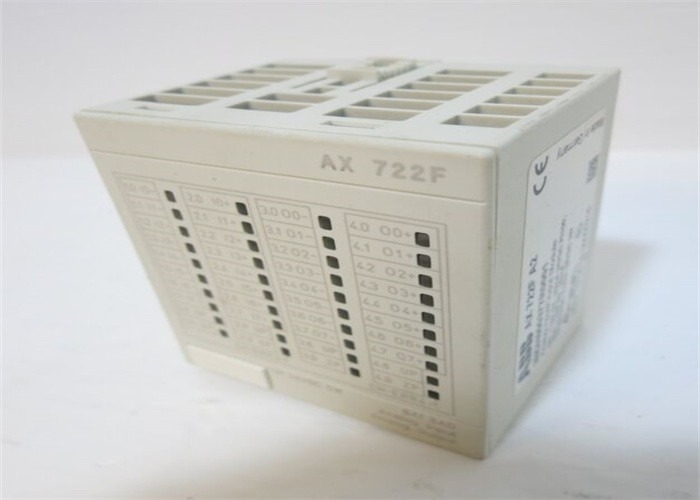

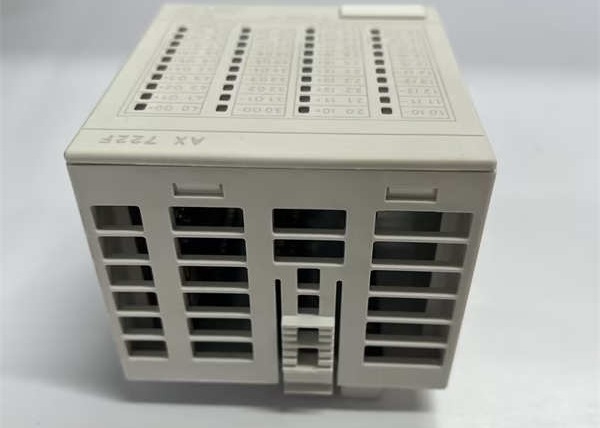

The ABB AX722F 3BDH000377R0001 is a versatile analog input/output module crafted for industrial automation systems. It integrates 16 channels into a single module, boasting high flexibility and strong integration capabilities. Eight of these channels can be individually set up as analog inputs to detect voltage, current, or temperature, while the remaining eight function as configurable analog outputs. This module is well-suited for PROFIBUS remote I/O applications and direct I/O use in AC 700F / AC 900F systems.​

Core Advantages and Technical Highlights​

• High Integration and Flexibility: The AX722F module merges analog input and output channels into one unit, totaling 16 channels. This high level of integration lessens the need for multiple modules, saving space and streamlining system design.​
• Excellent Electrical Performance: Equipped with specific electrical traits like dv/dt and di/dt control, blocking voltage, and a cut-off current of up to 6kA, the module is ideal for high-power applications.​
• Compact Design: Measuring 67.5 mm (W) x 76 mm (H) x 54 mm (D) and weighing 0.13 kg, the AX722F is compact, facilitating easy integration into various devices and systems.​
• Wide Application Range: Thanks to its flexible configuration and robust performance, the AX722F finds extensive use in industrial automation, energy management, and environmental monitoring. It can cater to the monitoring and control needs of diverse complex systems.​

Typical Application Scenarios​

The ABB AX722F 3BDH000377R0001 is widely applied across various industrial sectors:​

• Industrial Automation: Monitoring and controlling automated production lines and machinery.​
• Energy Management: Overseeing and regulating energy equipment and systems in power plants, oil fields, and gas fields.​
• Environmental Monitoring: Tracking environmental parameters such as temperature, humidity, and air pressure.​

Related Model Recommendations​

• ABB AC800F: A powerful PLC controller that integrates seamlessly with the AX722F to deliver advanced automation control.​
• ABB AI810: A complementary analog input module for precise data collection.​
• ABB DI810: A digital input module that can be used alongside the AX722F to form a complete I/O solution.​

Installation, Commissioning and Maintenance Instructions​

• Installation Preparation: Ensure the environment meets the specified temperature (-20°C to +70°C) and humidity (≤95% RH) requirements. Utilize shielded cables and proper grounding to reduce electromagnetic interference. Adhere to ABB’s panel mounting guidelines, ensuring adequate ventilation and protection from dust.​
• Maintenance Suggestions: Regularly check connections for signs of wear and clean the module with a static-free cloth to maintain optimal heat dissipation. Employ ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines when handling sensitive components, including taking anti-static measures during maintenance.
