Product Details:
Payment & Shipping Terms:
|
| Brand: | MITSUBISHI | Model: | Q00CPU |
|---|---|---|---|
| Operating Ambient Temperature: | 0 To 55 ° C | Storage Ambient Temperature: | -25 To 75 ° C |
| Ambient Humidity: | 5 To 95% RH, Non Condensing | Storage Ambient Humidity: | 5 To 95% RH, Non Condensing |
| Highlight: | MITSUBISHI Logic Controller,Q00CPU Logic Controller |
||

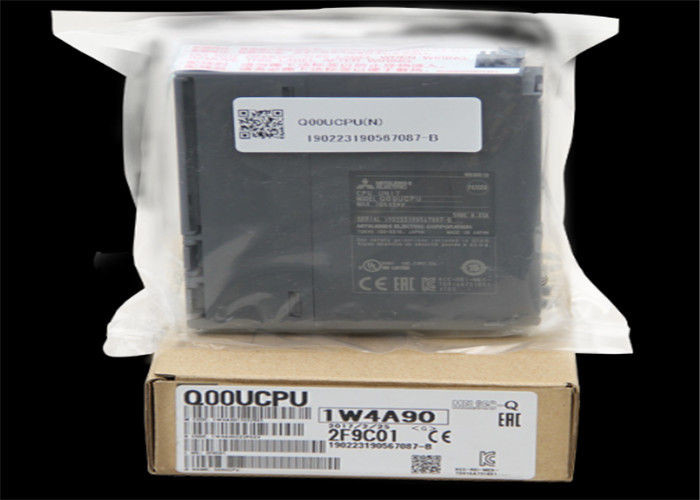

PLC Programmable Logic Controller MITSUBISHI MELSEC Q PLC CPU Q00CPU PLC Programmable Logic Controller
| Operating ambient temperature | 0 to 55 ° C |
| Storage ambient temperature | -25 to 75 ° C |
| Ambient humidity | 5 to 95% RH, non condensing |
| Storage ambient humidity | 5 to 95% RH, non condensing |
| Internal relay [M] | default 8192 points (M 0 to 8191) (changeable) |
| Latch relay [L] | default 2048 points (L 0 to 2047) (changeable) |
| Link relay [B] | default 2048 points (B 0 to 7 FF) (changeable) |
Specifications:
| Attribute | Value |
|---|---|
| For Use With | MELSEC Q Series |
| Number of I/O | 2048 |
| Manufacturer Series | MELSEC Q |
| Input Type | Analogue, Digital |
| Voltage Category | 5 V dc |
| Output Type | Analogue, Digital |
| Communication Port Type | RS232C |
| Program Capacity | 32 kB |
| Programming Interface | Computer, Operating Panel |
| Length | 89.3mm |
| Maximum Inputs/Outputs | 8192 |
| Number of Communication Ports | 1 |
| Width | 27.4mm |
| Maximum Operating Temperature | +55°C |
| Dimensions | 89.3 x 27.4 x 98 mm |
| Depth | 98mm |
| Battery Backup | Yes |
| Minimum Operating Temperature | 0°C |
| Mounting Type | DIN Rail |
| Memory | 94 kB |
Impact resistance Meets JIS B 3502, IEC 61131-2 (147 m / s 2, 3 times in each of X, Y and Z directions)
Operating atmosphere No corrosive gas
Usage Altitude 0 to 2000 m
Installation location in control panel
Over voltage category Ⅱ or less
Pollution degree 2 or less
Device class Class I
Special relay [SM] 1024 points (SM 0 to 1023) (Device number is fixed)
Special register [SD] 1024 points (SD 0 to 1023) (Device number is fixed)
Function input [FX] 16 points (FX 0 to F) (Device number is fixed)
Function output [FY] 16 points (FY 0 to F) (the number of device points is fixed)
Function register [FD] 5 points (FD 0 to 4) (Device number is fixed)
Height (H) 98 mm
Width (W) 27.4 mm
Depth (D) 89.3 mm
Data register [D] default 11136 points (D0 to 11135) (changeable)
Link register [W] default 2048 points (W 0 to 7 FF) (changeable)
Annunciator [F] default 1024 points (F0 to 1023) (changeable)
Edge relay [V] default 1024 points (V 0 to 1023) (changeable)
Similer item we can supply:
-Q01CPU -Q02(H)CPU -Q06HCPU -Q12HCPU -Q25HCPU -Q02PHCPU -Q06PHCPU -Q12PHCPU -Q25PHCPU -Q00UCPU -Q01UCPU -Q02UCPU -Q03UDVCPU -Q03UD(E)CPU -Q04UDVCPU -Q04UD(E)HCPU -Q06UDVCPU -Q06UD(E)HCPU -Q10UD(E)HCPU -Q13UDVCPU -Q13UD(E)HCPU -Q20UD(E)HCPU -Q26UDVCPU -Q26UD(E)HCPU -Q50UDEHCPU
