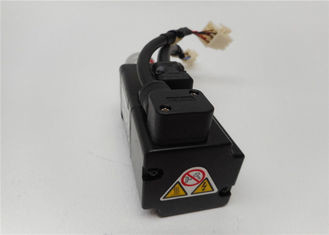

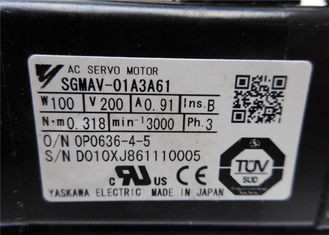

SGMAV-01A3A61 Yaskawa Ac Servo Motor 0.91A 3 Phase

Quick Details

Brand Name:Julante
Model Number:YE2
Type: Servo Motor
Frequency: 50/60Hz
Output Power: 200W
Protect Feature:Totally Enclosed
Phase:Three-phase
Certification:CCC, CE, ROHS, UL, VDE, Other
AC Voltage:208-230 / 240 V
Place of Origin:Japan
Efficiency:IE 1




OTHER SUPERIOR PRODUCTS

SERVOPACK Orientation

Install the SERVOPACK perpendicular to the wall so the front panel containing connectors faces outward.


Cooling

As shown in the figure above, allow sufficient space around each SERVOPACK for cooling by cooling fans or natural convection.


Side-by-side Installation

When installing SERVOPACKs side by side as shown in the figure above, allow at least 10 mm (0.39 in) between and at least 50 mm (1.97 in) above and below each SERVOPACK. Install cooling fans above the SERVOPACKs to avoid excessive temperature rise and to maintain even temperature inside the control panel.


Environmental Conditions in the Control Panel

• Ambient Temperature: 0 to 55°C (32 to 131° F)
• Humidity: 90% RH or less Vibration: 0.5 G (4.9 m/s2)
• Condensation and Freezing: None Ambient Temperature for Long-term
• Reliability: 45°C (113 °F) max.

Conduct voltage resistance tests under the following conditions.

• Voltage:1500 Vrms AC for one minute
• Braking current: 30 mA or more
• Frequency: 50 or 60 Hz
• For SGDS-†††72A SERVOPACKs: Between the ground terminals and the point where the terminals L1, L2, (L3), L1C, L2C, U, V, and W are connected.
