Product Details:
Payment & Shipping Terms:
|
| Brand: | Yaskawa | Model Number: | SGDS-08A12A |
|---|---|---|---|
| Country Of Origin: | Japan | Type: | Industrial Servo Drives |
| Delivery Time: | 2-3days | Power - Rated: | 850w |
| Voltage - Rated: | 100, 200VAC | RPM: | 3000 RPM |
| Weight: | 0.705 Lb (319.78g) | ||
| High Light: | SGDS-08A12A Yaskawa Servo Motor Repair,750W Yaskawa Servo Motor Repair |
||
SGDS-08A12A 750W Powerful Servo Motor Ac And Dc Servo Motors

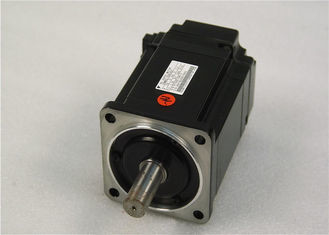

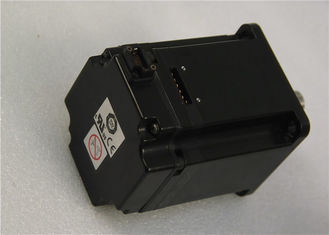

SGDS-08A12A Industrial Servo Motor Yaskawa 750W
1 Qualified for Redundant Server + 10 non-Redundant controllers; Fieldbus (FIMs) is not supported on an Experion PKS system that uses Ethernet as the supervisory process control network; ACEs do not exist on a Supervisory Ethernet Configuration 2 Controller Definitions including PLCs which make use of the same network and utilize Server SCADA connections: To ensure no single point-of-failure exists, multiple Controllers per chassis are not supported. The ACE is not included in this limit.
SERVOPACK Orientation
Install the SERVOPACK perpendicular to the wall so the front panel containing connectors faces outward.
Cooling
As shown in the figure above, allow sufficient space around each SERVOPACK for cooling by cooling fans or natural convection.
Side-by-side Installation
When installing SERVOPACKs side by side as shown in the figure above, allow at least 10 mm (0.39 in) between and at least 50 mm (1.97 in) above and below each SERVOPACK. Install cooling fans above the SERVOPACKs to avoid excessive temperature rise and to maintain even temperature inside the control panel.
Environmental Conditions in the Control Panel
Conduct voltage resistance tests under the following conditions.
