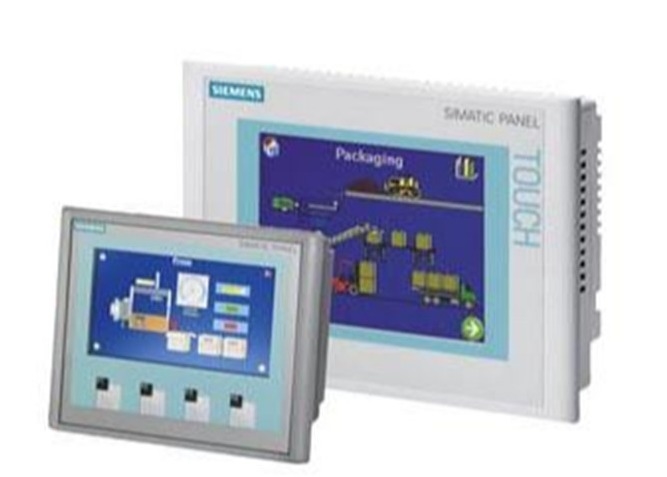

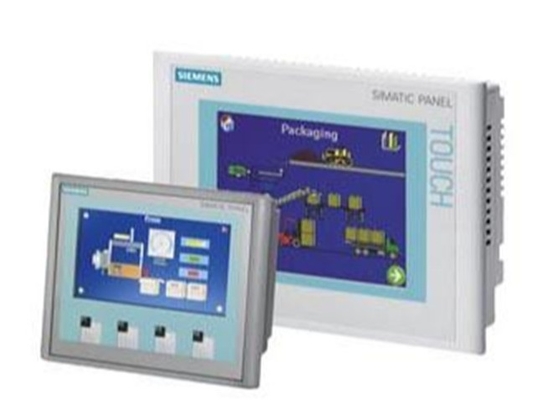

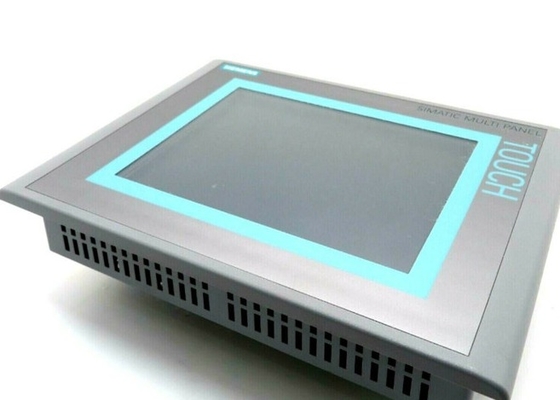

6AV6 643-0CB01-1AX1 MP 277 8 TOUCH MULTI PANEL WITH RETENTIVE MEMORY 7.5 TFT
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Siemens |
| Certification: | CE |
| Model Number: | 6AV6 643-0CB01-1AX1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | New Original Box |
| Delivery Time: | 5-8days |
| Payment Terms: | T/T |
| Supply Ability: | 50 |
|
Detail Information |
|||
| Brand: | Siemens | Country Of Origin: | Germany |
|---|---|---|---|
| Model: | 6AV6 643-0CB01-1AX1 | Type: | HMIs |
| Warranty: | 1 Year | Supply Voltage: | DC |
| Processor Type: | ARM | User Data: | 6 Mbyte |
| Highlight: | MP 277 touch panel with retentive memory,HMI touch screen 7.5 TFT display,Siemens MP 277 multi panel |
||
Product Description
6AV6 643-0CB01-1AX1 MP 277 8 TOUCH MULTI PANEL WITH RETENTIVE MEMORY 7.5 TFT
More Information:
As a state-of-the-art Human-Machine Interface (HMI) solution from Siemens—a global pioneer in industrial automation technology—the 6AV6643-0CB01-1AX1 is engineered with meticulous precision. Tailored to meet the rigorous demands of modern industrial settings, this HMI unit fuses advanced functionalities, rugged construction, and user-centric design to deliver unmatched performance and reliability. Boasting versatile capabilities and comprehensive specifications, it has established itself as a trusted choice for a diverse spectrum of industrial applications.
Display and Resolution
The Siemens 6AV6643-0CB01-1AX1 is equipped with a high-performance TFT display that supports 65,536 colors, producing vivid, lifelike visuals and ensuring sharp, accurate image rendering. It features a resolution of 640 (horizontal) × 480 (vertical) pixels, delivering crisp, detailed graphics that enhance both user experience and readability of on-screen data. With a 7.5-inch screen diagonal, it provides a spacious viewing area—ideal for applications that require extensive data visualization, real-time monitoring, or detailed process oversight.
Keyboard and Mounting
Integrated with an alphanumeric keyboard, the 6AV6643-0CB01-1AX1 enables intuitive input, streamlining efficient data entry and seamless operator interaction. Designed specifically for vertical mounting, it offers exceptional installation flexibility, allowing for optimal placement across various industrial environments—whether on control panels, machinery enclosures, or production line workstations. Its ergonomic design further ensures ease of use and convenient accessibility for operators during daily operations.
Processing Power and Memory
Driven by a high-performance ARM processor, the 6AV6643-0CB01-1AX1 delivers robust performance and responsive operation, enabling rapid task execution and smooth, uninterrupted functionality. It combines Flash and RAM storage to provide ample capacity for user data: 6 MByte is dedicated to user-specific data, while the maximum main memory capacity reaches 128 MByte. This generous storage allocation easily accommodates complex project configurations, large datasets, and feature-rich applications, eliminating limitations on operational flexibility.
Interfaces and Connectivity
The 6AV6643-0CB01-1AX1 comes fitted with a versatile suite of interfaces and communication options, enabling seamless integration with existing industrial networks and systems. It includes 1 x RS422, 1 x RS485, and 1 x Ethernet (RJ45) port—offering flexible connectivity to support a range of communication protocols, such as PROFIBUS, TCP/IP, and other industry-standard bus systems. The Ethernet interface, in particular, enables high-speed data transfer and reliable network connectivity, facilitating real-time monitoring and precise control of industrial processes.
Operating System and IP Rating
This HMI unit runs on the Windows CE platform, providing a familiar, user-friendly environment that simplifies HMI application development and operation. It supports multi-language projects, with up to 32 languages per project—ensuring compatibility and accessibility for global user teams across different regions. Rated IP65, it offers robust protection against dust ingress and water splashes, making it well-suited for harsh industrial environments where durability and consistent performance under challenging conditions are critical.
