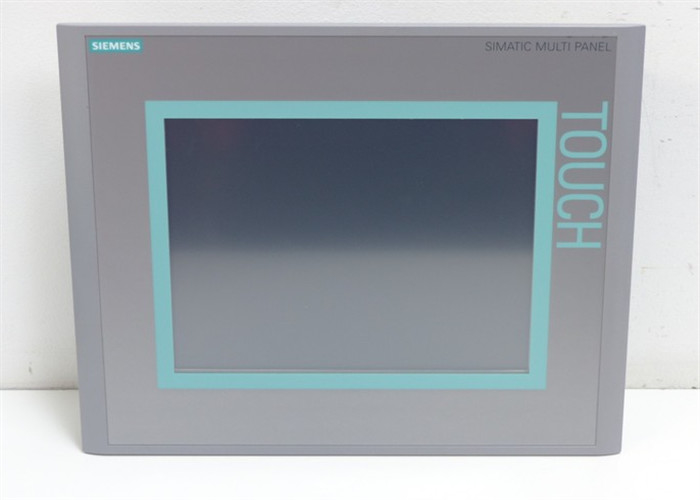

6AV6643-0CD01-1AX1 SIEMENS SIMATIC MP 277 10 Touch Multi Panel

6AV6643-0CD01-1AX1 SIEMENS SIMATIC MP 277 10 Touch Multi Panel

Product:

Additional information product:

Siemens 6AV6643-0CD01-1AX1 Features
The Siemens 6AV6643-0CD01-1AX1 MP277 is a high-performance Human-Machine Interface (HMI) engineered to enable smooth industrial automation processes. As a standout member of Siemens' reputable MP277 series, this HMI panel delivers reliable performance capabilities, an intuitive user interface, and exceptional long-term durability. It serves as a critical tool for industrial operations that demand precise control and real-time monitoring. Engineered to thrive in harsh operating conditions, it merges advanced visualization technologies with a rugged enclosure, making it well-suited for industries including manufacturing, process control, energy management, and logistics.

Display and Touch Interface
Boasting a 10.4-inch TFT display with support for 65,536 colors, the MP277 delivers crisp, vivid visualizations for operators. This resolution ensures sharp clarity for process schematics, trend graphs, and alarm notifications, enabling operators to quickly evaluate system status and make well-informed decisions.
Its touchscreen functionality allows for straightforward navigation and efficient interaction with automation workflows. With minimal training, operators can effortlessly switch between multiple screens, input data, and access key control features—an essential advantage in fast-paced production settings.
Featuring a backlight lifespan of 50,000 hours, the 6AV6643-0CD01-1AX1 is built for consistent long-term performance in challenging environments. The extended backlight life reduces the need for maintenance or replacements, helping to minimize operational downtime and lower overall ownership costs.

User Input and Control
Equipped with a highly responsive touchscreen and an alphanumeric keyboard, the MP277 offers flexible input methods to cater to diverse user preferences. This combination supports both quick command entries and detailed parameter adjustments, accommodating operators who prefer tactile feedback as well as those who favor touch-only operation.
The integration of touch control and physical keys allows operators to interact with the system in the most efficient way—whether conducting detailed configurations or entering quick commands. For applications requiring precise numeric input, such as recipe management, calibration settings, or troubleshooting, the built-in keyboard guarantees both accuracy and speed.

Processing Power and Memory
Powered by an ARM processor, the Siemens MP277 delivers smooth operation and rapid processing capabilities. This enables the 6AV6643-0CD01-1AX1 to manage complex visualization projects, handle multiple communication channels concurrently, and execute advanced diagnostic functions without latency.
It comes with 6 Mbytes of Flash/RAM, providing ample storage and processing capacity to support complex industrial applications. This memory allocation accommodates large project files, multilingual setups, and extensive graphic libraries, giving engineers the flexibility to develop customized operator interfaces tailored to specific needs.

Connectivity and Interfaces
To enable seamless communication and integration with industrial networks, the MP277 is furnished with a comprehensive range of connectivity options:

• A USB port for connecting additional peripherals
• One RS 422 interface for high-speed serial communication
• One RS 485 interface for stable data transmission
• One Ethernet (RJ45) interface for seamless integration with modern industrial networks
• Support for the PROFINET IO protocol, ensuring compatibility with various industrial automation systems

This diverse set of connectivity features allows the 6AV6643-0CD01-1AX1 MP277 to be integrated into both new installations and existing legacy systems, bridging the gap between older serial-based devices and newer Ethernet-enabled equipment.
PROFINET IO support facilitates real-time communication between the HMI and other automation components such as PLCs, drives, and distributed I/O modules, helping to maintain synchronization across the entire production line.

Environmental Tolerance
The 6AV6643-0CD01-1AX1 MP277 is designed to operate reliably across a broad range of environmental conditions. Its operating temperature range accommodates most manufacturing environments, and it can withstand high humidity levels, vibration, and exposure to industrial contaminants. This versatility makes it suitable for use in sectors such as food and beverage, automotive, pharmaceuticals, and heavy equipment manufacturing.

Mounting and Design
The Siemens 6AV6643-0CD01-1AX1 MP277 HMI is designed for vertical mounting, allowing it to fit into a wide variety of industrial panel configurations. Its compact depth makes it ideal for installations where space is limited, while its robust front panel ensures durability in challenging operating conditions.
