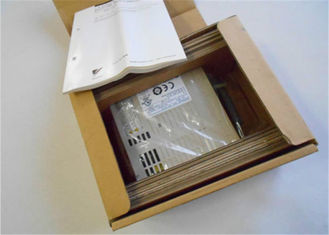

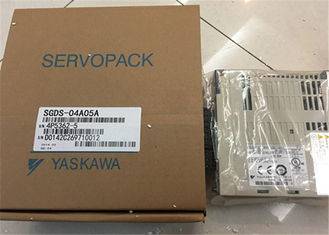

SGDS-04A05A 200 - 230 Input Volatge Industrial Servo Drives 100W Power 3000 RPM

SGDS-04A05A Description

SGDS-04A05A Key Features

• High-Frequency Response & Dynamic Performance: Boasts a high-frequency response capability, enabling ultra-fast dynamic response and μs-level synchronization of control commands and feedback data, significantly reducing positioning time and improving system efficiency.
• Multi-Mode Control Flexibility: Supports position, speed, and torque control modes, with seamless, bumpless mode switching during operation; torque control accuracy reaches ±0.5% of full scale, speed fluctuation rate as low as 0.01% for precise motion regulation.
• Advanced Auto-Tuning & Vibration Suppression: Integrated real-time auto-tuning and adaptive tuning functions, automatically adjusting parameters to match mechanical systems; adaptive filtering algorithms effectively suppress vibrations, ensuring smooth and stable operation.
• Comprehensive Protection Mechanisms: Built-in overload, overcurrent, overvoltage, and undervoltage protection, along with Safe Torque Off (STO) safety function, safeguarding the amplifier, connected motor, and machinery, minimizing unplanned downtime.
• Simplified Wiring & Network Integration: Supports MECHATROLINK-II communication protocol (10Mbps communication rate), reducing wiring by up to 85% compared to traditional pulse control; enables networking control of up to 30 slave devices, simplifying system integration.
• User-Friendly Operation & Maintenance: Equipped with a built-in parameter setter for direct on-unit configuration, eliminating the need for external tools; stores up to 100 fault history records and supports key component life prediction for easy troubleshooting and maintenance.
• Compact & Industrial-Grade Design: Ultra-compact form factor for space-saving installation in control cabinets; optional conformal coating and IP20 protection rating, ensuring stable operation in harsh industrial environments with wide temperature adaptability.
• Energy-Efficient Performance: Features high power factor (>0.95) and efficient energy regeneration (85% regeneration energy utilization), reducing energy consumption; low standby power consumption (<5W) for energy conservation.

SGDS-04A05A Materials & Applications

Materials

• Housing: Industrial-grade flame-retardant plastic (UL 94 V-0 rated) with a robust structure, ensuring electrical insulation, dust resistance, and mechanical protection; optimized for heat dissipation to support long-term continuous operation.
• Internal Components: High-reliability industrial-grade IGBT modules, precision current sensors, and isolated communication chips, ensuring stable signal processing and long service life; circuit boards with optional conformal coating to resist moisture, dust, and industrial contaminants.
• Connectors: Gold-plated terminals and high-quality communication interfaces, ensuring low contact resistance, corrosion resistance, and reliable power/signal transmission even in electrically noisy industrial environments.
• Circuit Board: High-temperature-resistant PCB material with optimized layout, enhancing heat dissipation efficiency and signal integrity, supporting stable operation in wide temperature ranges.

Typical Applications

• Machine Tools: CNC milling machines, lathes, and grinding machines, providing precise position and speed control for high-quality machining processes.
• Semiconductor & Electronics Manufacturing: Wafer handling equipment, die bonding machines, and precision inspection instruments, requiring ultra-high positioning accuracy and stable operation.
• Industrial Automation: Robotic seventh-axis drives, high-speed pick-and-place systems, and flexible conveying systems, supporting multi-axis collaborative motion and high-speed operation.
• Precision Equipment: 3D printing platforms, laser cutting machines, and electronic microscope stages, where high dynamic response and low vibration are critical.
• Packaging & Printing Machinery: High-speed labeling machines, filling equipment, and printing presses, ensuring precise synchronization and smooth motion control.
• Metallurgy & Material Handling: Medium-duty material conveying systems and precision positioning stages, adapting to variable load conditions and harsh industrial environments.

SGDS-04A05A Important Parameters
